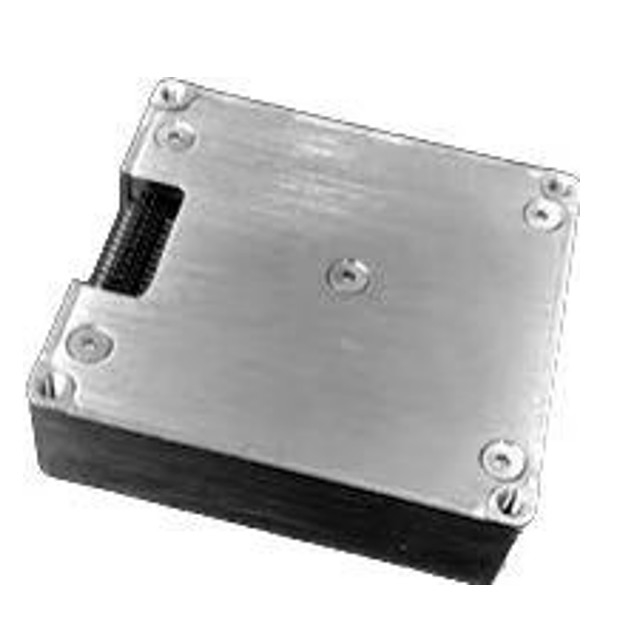

MEMS Based Inertial Measurement Unit With High Performance

Name: MEMS Based Inertial Measurement Unit With High Performance
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16497
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16497
MOQ:	1
Price:	negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

MEMS Inertial Measurement Unit

Measuring Range:

±500º/s

Zero Bias Stability:

1deg/h

Zero-bias Repeatability:

0.1deg/s

Cale Factor Nonlinearity:

0.02%F

Accelerometer Range:

16g

Zero Bias Stability:

0.5mg

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

ROHS Inertial Measurement Unit

MEMS Based Inertial Measurement Unit

MEMS Gyroscope And Accelerometer

Product Description

MEMS Based Inertial Measurement Unit With A High-Performance MEMS Gyroscope And Accelerometer

1. Product overview

The 16497C-C0-IMU is a micromachining technology (MEMS) based inertial measurement unit (IMU) with a high-performance MEMS gyroscope and MEMS

The accelerometer outputs 3 angular velocities and 3 accelerations.

2. Product features

Three-axis digital gyroscope:
1. ± 500º/s dynamic measuring range;
2. Zero bias stability: 5 °/H (GJB, 10s), 1.0 °/H (ALLAN);
Triaxial digital accelerometer:
1. ± 16 G dynamic measuring range;
2. Zero-bias stability: 0.5mg (GJB, 10s), 0.1mg (ALLAN);
High reliability: MTBF > 20000h;
Guaranteed accuracy within the full temperature range (-40 ℃ ~ 80 ℃): built-in high-performance temperature calibration and compensation algorithm;
Suitable for working under strong vibration conditions;
Interface 1 channel UART, 1 channel SPI, 1 channel CAN

3. Product indicators

Parameter		Test conditions	Minimum value Typical value	Maximum value	Unit
	Dynamic measuring range			500	º/s
	Zero bias stability	Allan variance 10 s average (-40 ℃ ~ + 80 ℃, constant temperature)	1.0 5		º/h º/h
Gyro	Zero bias	Zero-bias range Zero bias change over full temperature range ○ 1	±0.2 ±0.06		º/s º/s
	Scale factor	Scale factor accuracy Scale factor nonlinearity	0.3 0.02		% %FS
	Resolution		3.052×10⁻7		º/s/LSB
	Bandwidth		200		Hz
	Dynamic measuring range		16		g mg mg mg mg % %FS g/LSB Hz
	Zero bias stability	Allan variance 10 s average (-40 ℃ ~ + 80 ℃, constant temperature)	0.1 0.5
Accelerometer	Zero bias	Zero-bias range Change of zero bias within full temperature range, peak-to-peak value ○ 1	2 2
	Scale factor	Scale factor accuracy Scale factor nonlinearity	0.3 0.02
	Resolution		1.221×10⁻8
	Bandwidth		200
Communication interface	1-way SPI	Baud rate	15		MHz

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
1-way UART		Baud rate		230.4		Kbps
1-way CAN		Baud rate			1	MHz
		SPI		200	1000	Hz
Sampling frequency		UART		200		Hz
		CAN		200		Hz
	Voltage		3.0	3.3	3.6	V
Electrical characteristics	Power consumption				1.5	W
	Ripple	P-P			100	mV
Structural characteristics	Size		47×44×14			mm
	Weight		50			g
Use environment	Operating Temperature Storage Temperature Vibration Impact		-40		80	℃
			-45		85	℃
				20~2000Hz,
				6.06g
				1000g,0.5ms
Reliability	MTBF		20000			h
	Continuous working time		120			h

IMU polarity definition

3 gyros and 3 accelerometers is defined as shown in the figure below, and the direction of the arrow is positive.
