High-Precision Position And Navigation System Sensor Output Pitch, Roll Heading 3 Axis Acceleration 3 Axis Gyro Value

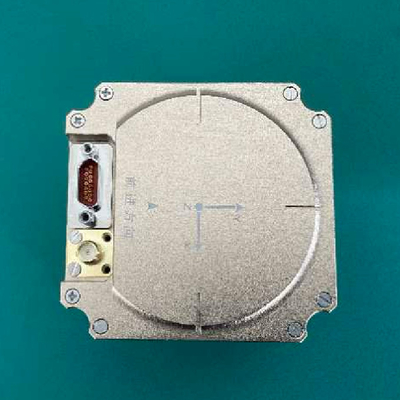

INS-300 is a high-precision integrated navigation system independently developed by Avic group. It contains three self-developed 98 fiber optic gyroscopes, three quartz accelerometers, high-precision sampling circuit, navigation computer circuit, GNSS module and power supply circuit. And high-precision position and navigation in a complex environment are realized through multi-sensor fusion and an integrated navigation algorithm. The product has high reliability and strong environmental adaptability. The products can be widely used in intelligent driving, unmanned aerial vehicle, surveying and mapping, marine compass, stable platform, underwater vehicle, roadheader, mining machinery and other fields.
Gyro specs
| Project | Indicators | Remark | |
|
Gyro channel |
Measuring range | -500°/s ～+500°/s | |
| Resolution | ≤0.01°/h | ||
| Zero-bias residual | -0.02°/h ～+0.02°/h | ||
| Random walk | ≤0.0015°/√h | ||
| Zero bias stability at room temperature | ≤0.01°/h(1σ,10s) | 10 seconds smoothing, 1H test result | |
| Zero bias stability at full temperature | ≤0.015°/h(1σ,10s) | 10 seconds smoothing, 1H test result | |
| Normal-temperature zero-bias repeatability | ≤0.01°/h(1σ) | Statistics of 6 test data | |
| Zero-bias repeatability at full temperature | ≤0.015°/h(1σ) |
Take 2 zero-bias data at full temperature, high temperature, low temperature and normal temperature respectively |
|
| Scale factor nonlinearity | ≤5ppm | Full temperature and constant temperature | |
| Scale factor repeatability | ≤5ppm(1σ) | Full temperature and constant temperature | |
| Gyro start time | ≤5s | ||
| Gyro bandwidth | 300Hz | Design assurance, batch testing | |
| Installation error residual of three-axis gyroscope | ≤10" | ||
acc specs
| Project | Indicators | Remark | |
|
Acceleration channel |
Measuring range | -20g ～ +20g | Design and selection guarantee |
| Zero bias stability at full temperature | ≤80ug(1σ) | 10 seconds smoothing, 1H test result | |
| Zero-bias repeatability at full temperature | ≤80ug(1σ) |
Take 2 zero-bias data at full temperature, high temperature, low temperature and normal temperature respectively |
|
| Add up the starting time | ≤5s | ||
| Triaxial addition installation error residual | ≤10" | ||
