products details

Home Products

Quartz Flexure Accelerometer

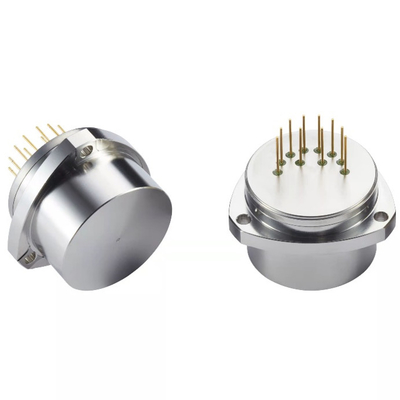

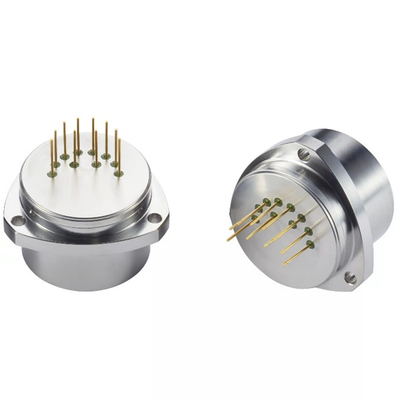

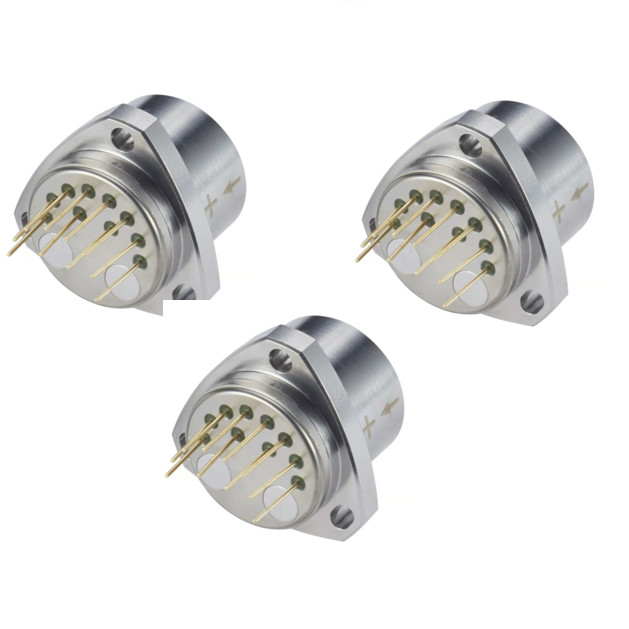

Quartz Inertial Accelerometer , Aerospace Quartz Flexure Accelerometer

Name: Quartz Inertial Accelerometer , Aerospace Quartz Flexure Accelerometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: AV4
Price: 900 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	AV4
MOQ:	1
Price:	900
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Function:

Acceleration Test

Threshold:

30μg

Material:

Stainless Steel

Scale Factor K1:

1.8～2.4mA/g

Working Temp.:

-40℃+150℃

Noise:

＜3000µg-rms (0-10000Hz)

Packaging Details:

sponge+ box

Supply Ability:

500/month

Highlight:

Quartz Inertial Accelerometer

Aerospace Quartz Accelerometer

SS Quartz Flexure Accelerometer

Product Description

Inertial Measurement Accelerometer Quartz Flexure Accelerometer Aerospace Quartz Accelerometer

Features

Low lag
High resolution
High stability
High accuracy
Low power
Excellent overload capacity
Small volume
Low cost
Broad measurement range

Applications

Drilling and Inclination Measurement
Aeronautics and Astronautics
Instruments and Equipment

Dimension

Quartz Inertial Accelerometer , Aerospace Quartz Flexure Accelerometer 0

Index Table

No.	Parameters	AV4-1	AV4-2	AV4-3
1	Range	±30g	±30g	±30g
2	Bias K₀/K₁	＜10mg	＜40mg	＜40mg
3	Bias comprehensive repeatability σK₀ (1σ,1 month)	＜50µg	＜250µg	＜250µg
4	Thermal coefficient	＜50µg/℃	＜150µg/℃	＜150µg/℃
5	Scale factor K₁	1.1～1.4 mA/g	1.1～1.4 mA/g	1.1～1.4 mA/g
6	Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month)	＜80 ppm	＜250 ppm	＜250 ppm
7	Bias thermal coefficient (full temp. mean)	＜100ppm	＜200ppm	＜200ppm
8	Installation error	＜1500µrad	＜1500µrad	＜1500µrad
9	Vibration	＜100µg/g 2rms (50-500Hz)	＜100µg/g 2rms (50-500Hz)	＜100µg/g 2rms (50-500Hz)
10	Noise	＜3000µg-rms (0-10000Hz)	＜3000µg-rms (0-10000Hz)	＜3000µg-rms (0-10000Hz)
11	Working temp.	-55～96℃	-55～125℃	-55～180℃
12	Impact	500 g 0.5ms	1000 g 0.5ms	1000 g 0.5ms
13	Sinusoidal vibration	25 g @30-500Hz	25 g @30-500Hz	25 g @30-500Hz
14	Resolution	＜10µg	＜10µg	＜10µg
15	Bandwidth	＞300 Hz	＞300 Hz	＞300 Hz
16	Consume current	＜20 mA	＜20 mA	＜20 mA
18	Power dissipation @ ±15VDC	＜480 mW	＜480 mW	＜480 mW
19	Input voltage	±13 to ±18V	±13 to ±18V	±13 to ±18V
20	Weight	＜65g 55nominal	＜65g	＜65g
21	Mounting diameter	Ф25mm1.0inches	Ф25mm	Ф25mm
22	Height	＜21.5mm	＜21.5mm	＜21.5mm
23	Shell material	300 Series stainless steel	300 Series stainless steel	300 Series stainless steel
