High Precision Acceleration Sensor Nonlinearity Coefficient ±10ug/G2

1
MOQ
1150 USD/pcs
Price
High Precision Acceleration Sensor Nonlinearity Coefficient ±10ug/G2
Features Gallery Product Description Request A Quote
Features
Specifications
Weight: ≤80g
Bias Drift Sigma K0( 1σ,one Month): ≤10 μg
Class II Nonlinearity Coefficient K2/k1: ≤±10μg /g2
Repeatability Of Scale Factor Sigma Kl/kl( 1σ,one Month): ≤15ppm
Bias Thermal Coefficient: ≤±10 μg /℃
Range: 50g
Scale Factor Thermal Coefficient: ≤±10 Ppm /℃
Bandwidth: 800~2500 Hz
High Light:

Flexible Quartz Acceleration Sensor

,

800Hz Acceleration Sensor

,

2500Hz Quartz Flexure Accelerometer

Basic Infomation
Place of Origin: China
Brand Name: Avic
Certification: CE
Model Number: AV1-01
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 1 week
Payment Terms: 100% in advance
Supply Ability: 500/month
Product Description

AV1 Accelerometer.pdf



High Precision Acceleration Sensor with Nonlinearity Coefficient ≤±10μg /g2

Product Description:

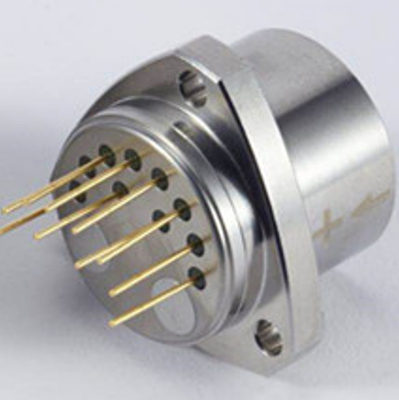

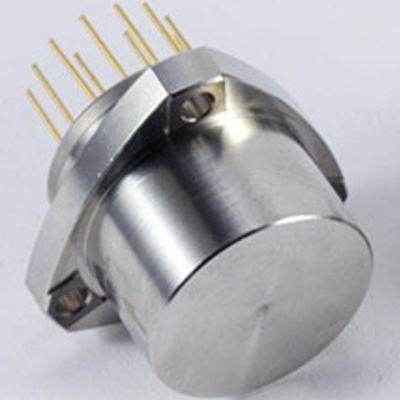

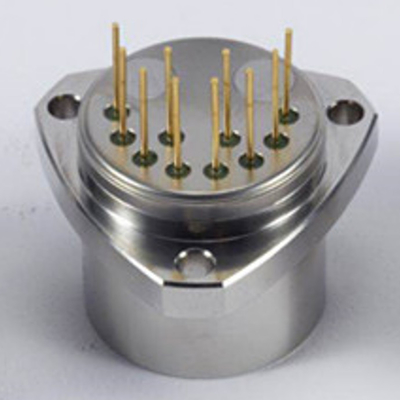

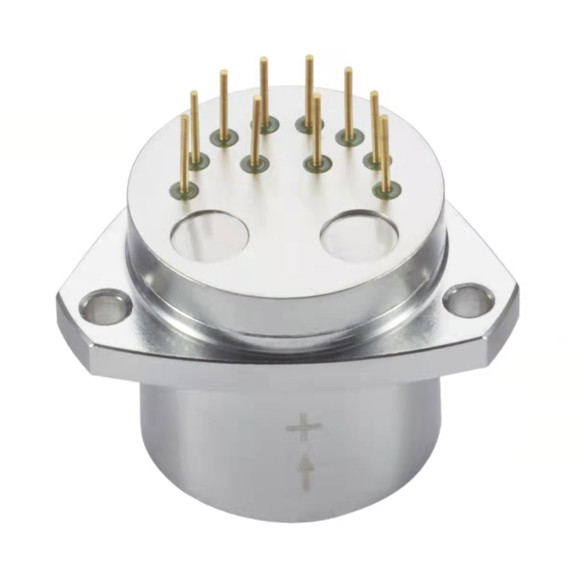

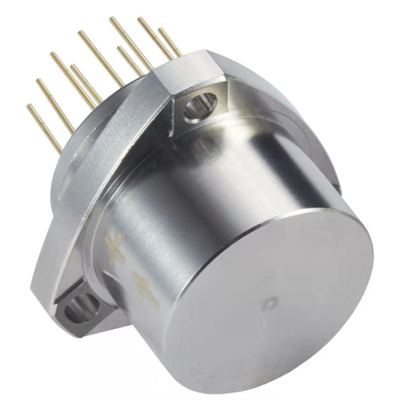

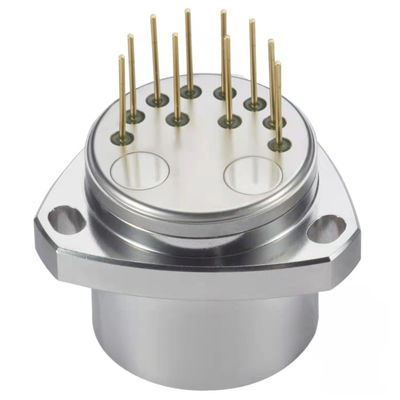

The Quartz flexible accelerometer AV1 series is an excellent military grade accelerometer designed for precision and long-term stability. It is highly reliable, repeatable and has good start-up performance, making it suitable for both dynamic and static testing functions. Furthermore, it can serve as both standard vibration sensors and inclination sensors.

Its output current is accurately mapped to the force or acceleration it receives, and users can select a suitable sampling resistance to get better results. An integrated temperature sensor also offsets the impact of environmental temperatures on its output values and scale factors.

This accelerometer is widely applied in many sectors, such as high-precision inertial navigation of military systems, aerospace, aviation, shipbuilding, weapons, and more, mostly focusing on vibration isolation testing of precision equipments.



Features:

This product offers a variety of features, including:

  • Excellent turn-on repeatability performance;
  • High environmental ruggedness;
  • Analog output capabilities;
  • A range that can be adjusted in the field;
  • A precision three fastener mounting flange;
  • A temperature sensor for thermal compensation(optional);
  • A scale factor that can be adjusted according to customer needs.


Applications:

Avic's Quartz Flexure Accelerometer, model AV1-01, is designed to provide reliable and accurate vibration measurement. It is an ideal solution for vibration measurement applications such as monitoring rotating machinery and structural vibration. The accelerometer is CE certified, and has a temperature range of -55 to +85 degrees Celsius. It has a low thermal bias coefficient of ≤±10 μg /℃ and a short-term stability of ≤10 μg for 4 hours. The accelerometer also features a bias drift sigma k0 of ≤10 μg over a period of one month, as well as a Class II nonlinearity coefficient k2/k1 of ≤±10μg /g2.

The accelerometer is competitively priced at 1150 USD per unit, with a minimum order quantity of 1. It is supplied in a carton with sponge packaging for safe delivery, and has a typical delivery time of 1 week. Payment terms are 100% in advance, and the accelerometer has a supply ability of 500 units per month.

Avic's Quartz Flexure Accelerometer is the ideal choice for vibration measurement applications. It is a reliable and accurate instrument for vibration monitoring and measurement, making it the perfect choice for measuring machinery and structural vibration.



Technical Parameters:

Parameter Specification
Noise (sample resistance 840Ω) ≤5mv
Range 50g
Weight ≤80g
Temperature range(Operating) -55~+85℃
Bias drift Sigma k0( 1σ,one month) ≤10 μg
0g 4 hours short time stability ≤10 μg
Threshold /Resolution 1μg
Bias thermal coefficient ≤±10 μg /℃
Bandwidth 800~2500 Hz
Repeatability of scale factor Sigma kl/kl( 1σ,one month) ≤15ppm


Support and Services:

Quartz Flexure Accelerometer offers technical support and service to customers. Our team of qualified professionals are available to provide assistance in diagnosing, troubleshooting, and resolving product-related issues. We offer a wide range of services, such as product installation and configuration, software updates, hardware repairs, and training. Our knowledgeable staff can provide advice and guidance in selecting the best product for your specific application. We also provide a comprehensive range of after-sales services, including product maintenance, warranty coverage, and customer support.



Packing and Shipping:

Packaging and Shipping for Quartz Flexure Accelerometer

We package our Quartz Flexure Accelerometer to ensure its safe delivery. Our packaging process includes:

  • Wrapping the product in static dissipative material
  • Placing the product in an anti-static bag
  • Placing the product in a foam-lined cardboard box
  • Using soft foam to secure the product in the box

We ship the product via tracked, insured, and reliable courier services to ensure that the product arrives safely and on time.



FAQ:

Q: What is the brand name of the Quartz Flexure Accelerometer?
A: The brand name of the Quartz Flexure Accelerometer is Avic.
Q: What is the model number of the Quartz Flexure Accelerometer?
A: The model number of the Quartz Flexure Accelerometer is AV1-01.
Q: Where is the Quartz Flexure Accelerometer manufactured?
A: The Quartz Flexure Accelerometer is manufactured in China.
Q: Does the Quartz Flexure Accelerometer come with a CE certification?
A: Yes, the Quartz Flexure Accelerometer has a CE certification.
Q: How many Quartz Flexure Accelerometers can I order at once?
A: The minimum order quantity for the Quartz Flexure Accelerometer is 1 pcs.
