High Precision Stability Acceleration Sensor with ≤10 μg Scale Factor

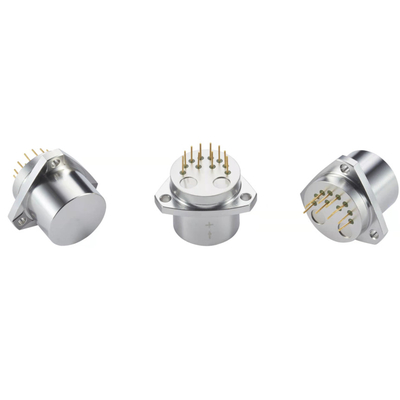

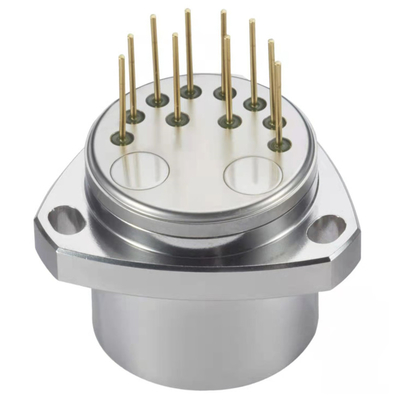

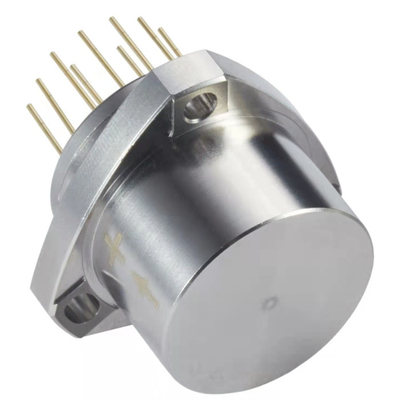

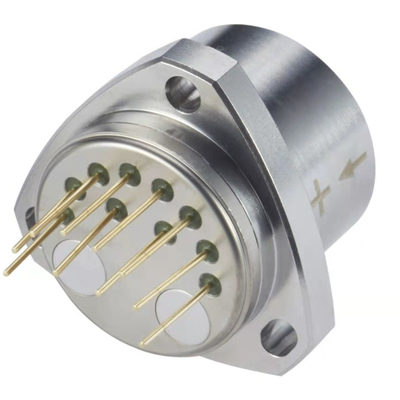

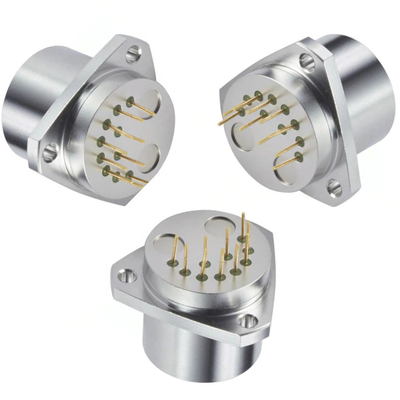

The Quartz flexible accelerometer AV1 series is a high-precision military inertial navigation class accelerometer that has many great features. It boasts excellent long-term stability, repeatability, startup performance, and environmental adaptability, to name a few. In addition, this accelerometer is highly reliable, making it the ideal choice for dynamic and static testing, as well as a standard vibration sensor and inclination sensor.
The output current of the product has a linear relationship with the force or acceleration it receives. This means that users can calculate the ideal sampling resistance to meet their precision and accuracy requirements. Furthermore, they can even apply a built-in temperature sensor for value and scale factor compensation, in order to reduce the environmental temperature’s influence.
The Quartz flexible accelerometer AV1 series is used in many different fields, including military high-precision inertial navigation systems and precision instruments/equipment in aerospace, aviation, ships, and weapons.
The XY2803 Position Sensor offers superior performance, as it features excellent turn-on repeatability and is environmentally rugged. It is equipped with an analog output, making it highly accurate and easy to use. The sensor is equipped with an adjustable range, and three fastener precision mounting flange to ensure the highest level of stability. An optional internal temperature sensor for thermal compensation is also available, and our team can adjust the scale factor to meet your needs.
Avic's quartz flexure accelerometer is a high-precision vibration sensor designed to accurately measure acceleration, velocity and displacement in the range of 50g. The model number is AV1-01, and it has been certified by CE. It is powered by ±12 to ±15V and equipped with a threshold/resolution of 1μg with short time stability up to 4 hours. With a repeatability of scale factor of 1σ, it guarantees a quality performance. Besides, the minimum order quantity is only 1 and the delivery time is 1 week. The price of this accelerometer is 1150 USD/pcs and it is packaged with a carton and sponge. With a supply ability of 500/month, Avic's quartz flexure accelerometer is suitable for various applications.
| 参数 | 技术参数 |
|---|---|
| Weight | ≤80g |
| Temperature range(Operating) | -55~+85℃ |
| Power | ±12~±15V |
| Bias thermal coefficient | ≤±10 μg /℃ |
| Scale factor kl | 1.05~1.30 MA/g |
| Class II nonlinearity coefficient k2/k1 | ≤±10μg /g2 |
| Repeatability of scale factor Sigma kl/kl( 1σ,one month) | ≤15ppm |
| Bias drift Sigma k0( 1σ,one month) | ≤10 μg |
| Bias k0/k1 | ≤±2mg |
| 0g 4 hours short time stability | ≤10 μg |
Quartz Flexure Accelerometer Technical Support and Service
Our technical support team is available to answer all your questions regarding our Quartz Flexure Accelerometer. We provide a range of services to ensure your product runs at optimal performance.
For any questions or inquiries, please contact our technical support team at support@example.com.
The Quartz Flexure Accelerometer will be packaged in a box that is designed to protect it during transport. The box will be padded with foam and other materials to ensure the device is secure from external impacts. The box will also be sealed to ensure no dust or other contaminants enter the package.
The package will be shipped with a reliable carrier, such as FedEx, UPS, or DHL. The shipping label will include the necessary information to ensure the package reaches its destination. The package will be insured for the full value of the device. Tracking information will be supplied to the customer so that they can track the package during transit.
