High Precision Quartz Flexure Accelerometer Bias Drift Equal Or Lesser Than 10uG

1
MOQ
1150 USD/pcs
Price
High Precision Quartz Flexure Accelerometer Bias Drift Equal Or Lesser Than 10uG
Features Gallery Product Description Request A Quote
Features
Specifications
Scale Factor Kl: 1.05~1.30 MA/g
Class II Nonlinearity Coefficient K2/k1: ≤±10μg /g2
Range: 50g
Bias Thermal Coefficient: ≤±10 μg /℃
Weight: ≤80g
Repeatability Of Scale Factor Sigma Kl/kl( 1σ,one Month): ≤15ppm
Scale Factor Thermal Coefficient: ≤±10 Ppm /℃
Bias K0/k1: ≤±2mg
High Light:

High Precision Quartz Flexure Accelerometer

,

High Accuracy Quartz Flexure Accelerometer

,

50g Vibration Measurement Sensor

Basic Infomation
Place of Origin: China
Brand Name: Avic
Certification: CE
Model Number: AV1-01
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 1 week
Payment Terms: 100% in advance
Supply Ability: 500/month
Product Description

Quartz Flexure Accelerometer, Bias Drift ≤10μG

Product Description:

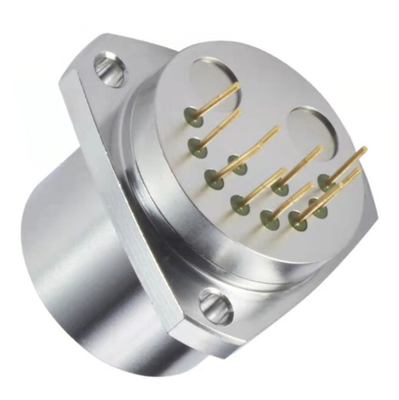

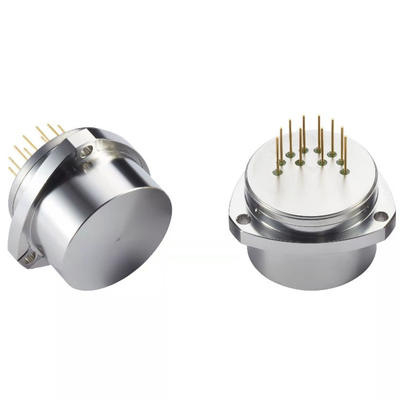

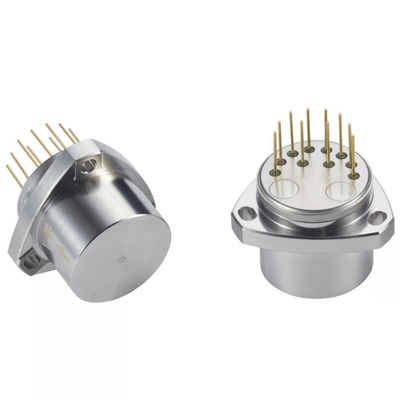

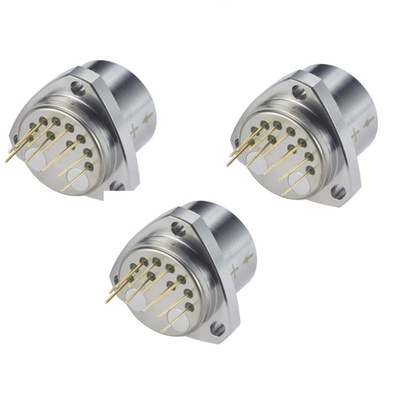

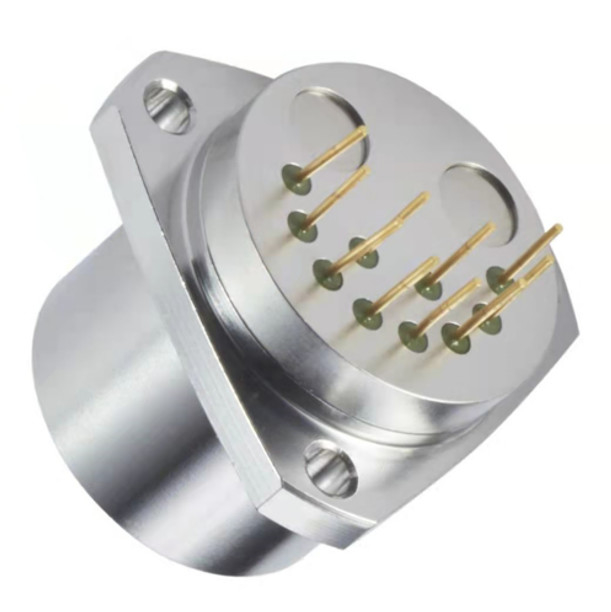

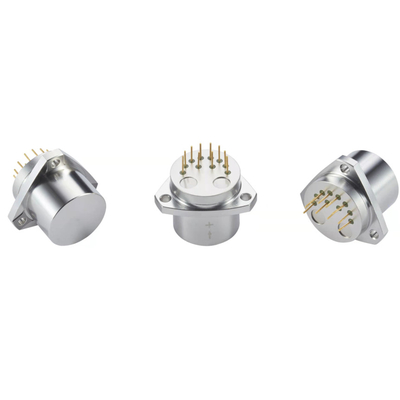

Quartz Flexible Accelerometer AV1 Series

Designed for high precision military inertial navigation class, the Quartz Flexible Accelerometer AV1 Series boasts impressive long-term stability, repeatability, start-up performance, environmental adaptability, and high reliability. It can be used both statically and dynamically, and it also works as a standard vibration sensor and inclination sensor.

The product’s output current features a linear relationship with the force or acceleration received, and users can select the appropriate sampling resistance through calculation to achieve a superior output. It also contains an integrated temperature sensor, which helps to offset values and scale factor compensation in order to reduce the environmental temperature’s impact.

Applications:

The AV1 series is indispensable for military high-precision inertial navigation measurements, as well as for the vibration isolation tests of precision instruments and equipment in aerospace, aviation, naval, and weapons industries.



Features:

Features

1. Excellent turn-on repeatability performance

2. Environmentally rugged

3. Analog output

4. Field adjustable range

5. Three fastener precision mounting flange

6. Internal temperature sensor for thermal compensation (option)

7. Scale factor that can be adjusted by us. No need for user recalibration.



Applications:

Avic AV1-01 flexure accelerometer is a high accuracy acceleration sensor with an impressive range of features. It has a CE certification, a minimum order quantity of 1, and a price of 1150 USD/pcs. It is packaged in a carton with sponge and can be delivered within 1 week. Payment terms are 100% in advance, and the supply ability is 500/month. The power range is ±12~±15V, and the scale factor kl is 1.05~1.30 MA/g. The operating temperature range is -55~+85℃, and the noise of sample resistance 840Ω is ≤5mv. The range of the flexure accelerometer is 50g.



Technical Parameters:

Parameter Value
0g 4 hours short time stability ≤10 μg
Weight ≤80g
Scale factor thermal coefficient ≤±10 Ppm /℃
Noise (sample resistance 840Ω) ≤5mv
Repeatability of scale factor Sigma kl/kl (1σ,one month) ≤15ppm
Threshold /Resolution 1μg
Bandwidth 800~2500 Hz
Bias k0/k1 ≤±2mg
Bias drift Sigma k0 (1σ,one month) ≤10 μg
Bias thermal coefficient ≤±10 μg /℃


Support and Services:

We offer technical support and services for our Quartz Flexure Accelerometer.

Our services include:

  • Repairs and maintenance
  • Calibration and adjustment
  • Software and firmware updates
  • Troubleshooting and technical advice
  • Replacement parts

Our technical support team is available 24/7 to answer any questions you may have and to help you get the most out of your Quartz Flexure Accelerometer.



Packing and Shipping:

Packaging and Shipping

Quartz Flexure Accelerometer is packaged with the utmost care and shipped in an appropriate container with necessary cushioning material to ensure it arrives undamaged. It is also shipped with the appropriate documents, labels, and other required material.

The product is packed in a polyethylene bag and then placed in a cardboard box. The box is sealed with packing tape. Instructions are included as to how to unpack the product.

The product is shipped via a reputable carrier, such as FedEx, UPS, or DHL. A tracking number is provided so the customer can monitor the progress of the shipment.



FAQ:

Q: What is a Quartz Flexure Accelerometer?
A: Quartz Flexure Accelerometer is a device used to measure acceleration of an object in three directions.
Q: What is the brand name of the Quartz Flexure Accelerometer?
A: The brand name of the Quartz Flexure Accelerometer is Avic.
Q: What is the model number for the Quartz Flexure Accelerometer?
A: The model number for the Quartz Flexure Accelerometer is AV1-01.
Q: Where is the Quartz Flexure Accelerometer made?
A: The Quartz Flexure Accelerometer is made in China.
Q: What certifications does the Quartz Flexure Accelerometer have?
A: The Quartz Flexure Accelerometer has a CE certification.

AV1 Accelerometer.pdf
