Navigation Grade Vibration Measurement Sensor Bias Equal Or Lesser Than ±2mg

1150 USD/pcs
Navigation Grade Vibration Measurement Sensor Bias Equal Or Lesser Than ±2mg
Features Gallery Product Description Request A Quote
Bias K0/k1: ≤±2mg
Repeatability Of Scale Factor Sigma Kl/kl( 1σ,one Month): ≤15ppm
0g 4 Hours Short Time Stability: ≤10μg
Bandwidth: 800~2500Hz
Threshold /Resolution: 1μg
Bias Drift Sigma K0( 1σ,one Month): ≤10μg
Noise (sample Resistance 840Ω): ≤5mv
Weight: ≤80g
High Light:

2mg Vibration Measurement Sensor


Navigation Grade Quartz Flexure Accelerometer


CE Certified Quartz Flexure Accelerometer

Basic Infomation
Place of Origin: China
Brand Name: Avic
Certification: CE
Model Number: AV1-01
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 1 week
Payment Terms: 100% in advance
Supply Ability: 500/month
Product Description

Navigation Grade Vibration Measurement Sensor Bias ≤±2mg

Product Description:

The AV1 series Quartz flexible accelerometer is designed specifically for use in military inertial navigation systems. It is renowned for its excellent long-term stability, repeatability, start-up performance, environment adaptability and high reliability. It is capable of functioning in static or dynamic testing situations, as it is a standard vibration sensor and inclination sensor.

The product itself has a linear output current with the force or acceleration it receives. Users can select their desired sampling resistance to obtain the highest precision output. Depending on the user’s needs, the product is also available with an in-built temperature sensor that is designed to compensate for value and scale factor changes, reducing undue effects from the environment’s temperature.

This product is ideal for inertial measurements in military navigation systems, as well as vibration isolation tests for precision instruments and equipment in the aerospace, aviation, naval, weapons and other industries.




1. Excellent turn-on repeatability performance is guaranteed.

2. It is Environmentally rugged, and highly reliable.

3. Analog output is available, providing a fast response.

4. Its field adjustable range is one of its best features.

5. The three fastener precision mounting flange ensure its stability.

6. Internal temperature sensor for thermal compensation(option) is a great addition.

7. We offer scale factor adjustment ensures its accuracy.

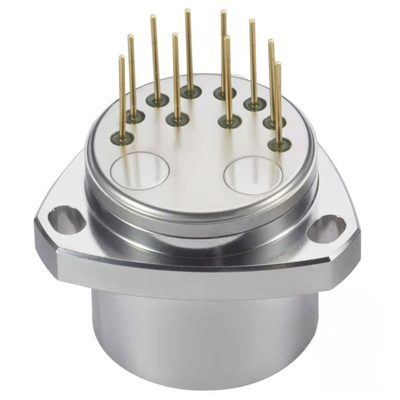

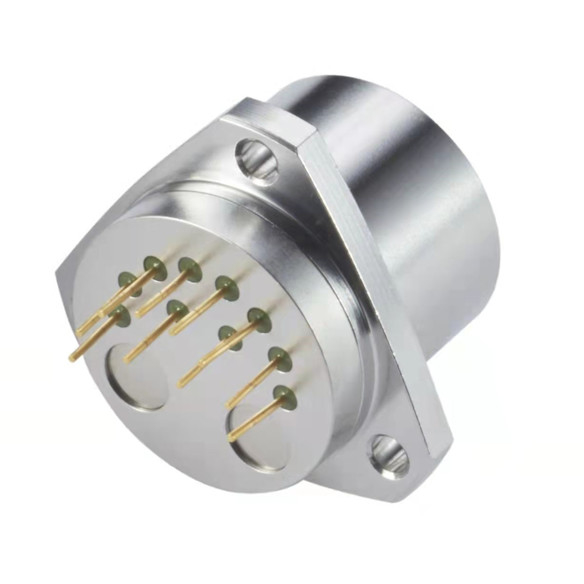

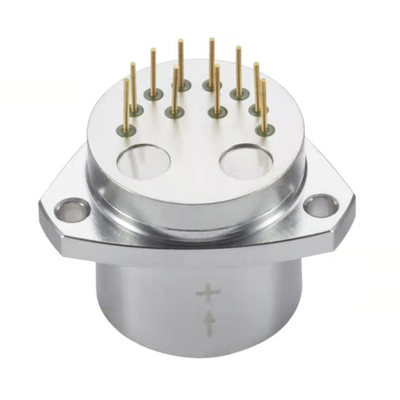

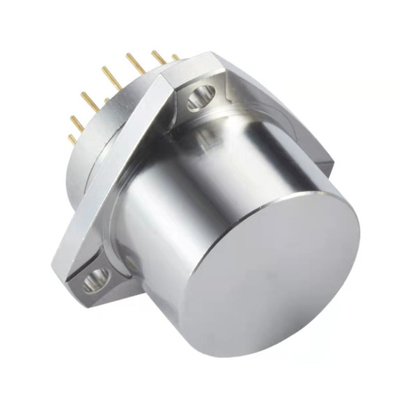

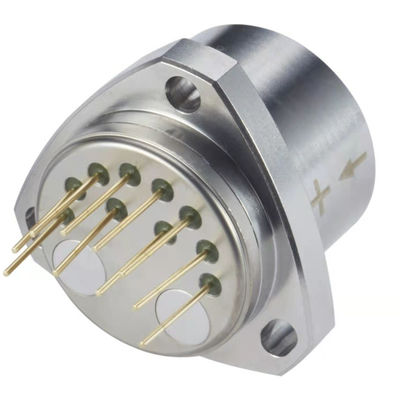

Avic's AV1-01 Quartz Flexure Accelerometer is a highly reliable and accurate acceleration sensor device that is perfect for vibration measurement. This CE-certified accelerometer is made from quartz flexure, and it has a threshold/resolution of 1μg, Class II nonlinearity coefficient k2/k1 of ≤±10μg/g2, temperature range of -55~+85℃, bias drift sigma k0 of ≤10 μg, and repeatability of scale factor sigma kl/kl of ≤15ppm.

This flexure accelerometer is perfect for a wide range of applications, including aerospace engineering, automotive testing, and seismic monitoring. It is also suitable for transportation infrastructure, such as railway and bridge monitoring. Furthermore, this device can be used for industrial testing, such as high-precision measuring of machinery and motors.

The AV1-01 Quartz Flexure Accelerometer is available for a competitive price of 1150 USD/pcs, with a minimum order quantity of 1. It is packaged in a carton with sponge, and delivery within 1 week is guaranteed. Payment must be made 100% in advance, and Avic can provide a maximum of 500 pieces per month.


Technical Parameters:

Parameter Value
Product Quartz Flexure Accelerometer
Sensor Type Quartz Vibration Sensor
Bias k0/k1 ≤±2mg
Bandwidth 800~2500 Hz
Scale factor kl 1.05~1.30 MA/g
Power ±12~±15V
Range 50g
Weight ≤80g
Bias thermal coefficient ≤±10 μg /℃
Class II nonlinearity coefficient k2/k1 ≤±10μg /g2
Repeatability of scale factor Sigma kl/kl( 1σ,one month) ≤15ppm
Temperature range(Operating) -55~+85℃

Support and Services:

Quartz Flexure Accelerometer offers professional technical support and service. Our dedicated technical team is available 24/7 to answer your questions and provide assistance. We provide a comprehensive range of support services, including:

  • Installation and troubleshooting support
  • Regular preventive maintenance
  • Upgrades and software updates
  • Replacement parts and components
  • On-site repairs and calibrations
  • Technical advice and guidance

If you have any questions or need assistance, please don't hesitate to contact us.


Packing and Shipping:

Packaging and Shipping for Quartz Flexure Accelerometer:

The Quartz Flexure Accelerometer will be packaged in a sturdy corrugated box with appropriate cushioning materials to protect against shock, vibration, and environmental exposure during shipping.

The package will be marked with the following information:
- Customer Name
- Shipping Address
- PO Number
- Description of Contents
- Weight
- Date and Time of Shipment

The package will be shipped using a reliable carrier with tracking information.



  • Q: What is the Brand Name?
    A: The Brand Name is Avic.
  • Q: What is the Model Number?
    A: The Model Number is AV1-01.
  • Q: Where is the Place of Origin?
    A: The Place of Origin is China.
  • Q: What is the Certification?
    A: The Certification is CE.
  • Q: What is the Minimum Order Quantity?
    A: The Minimum Order Quantity is 1.
  • Q: How much does it cost?
    A: It costs 1150 USD/pcs.
  • Q: What is the Packaging Details?
    A: The Packaging Details is carton with sponge.
  • Q: How long is the Delivery Time?
    A: The Delivery Time is 1 week.
  • Q: What are the Payment Terms?
    A: The Payment Terms are 100% in advance.
  • Q: What is the Supply Ability?
    A: The Supply Ability is 500/month.


Navigation Grade Vibration Measurement Sensor Bias Equal Or Lesser Than ±2mg 0AV1 Accelerometer.pdf
