Inertial System IMU Accelerometer Gyro 16488H Inertial Measurement Unit

1
MOQ
2400 USD
Price
Inertial System IMU Accelerometer Gyro 16488H Inertial Measurement Unit
Features Gallery Product Description Request A Quote
Features
Specifications
Gyro Measure Range: 450deg/s
MTBF: > 20000h
Accelerometer Allan Variance: 0.015mg
Weight: 50g
Power Consumption: 1.5w
Power Supply Voltage: 3V~3.6V
Working Temperature: -40~70℃
Zero-bias Stability: 0.8 °/h
High Light:

Inertial System IMU Accelerometer Gyro

,

1.5w IMU Accelerometer Gyro

,

Inertial Measurement Unit

Basic Infomation
Place of Origin: China
Brand Name: Avic
Certification: CE
Model Number: 16488H
Payment & Shipping Terms
Packaging Details: Box with sponge
Delivery Time: 1 week
Payment Terms: 100% in advance
Supply Ability: 1000/month
Product Description

Product Description:

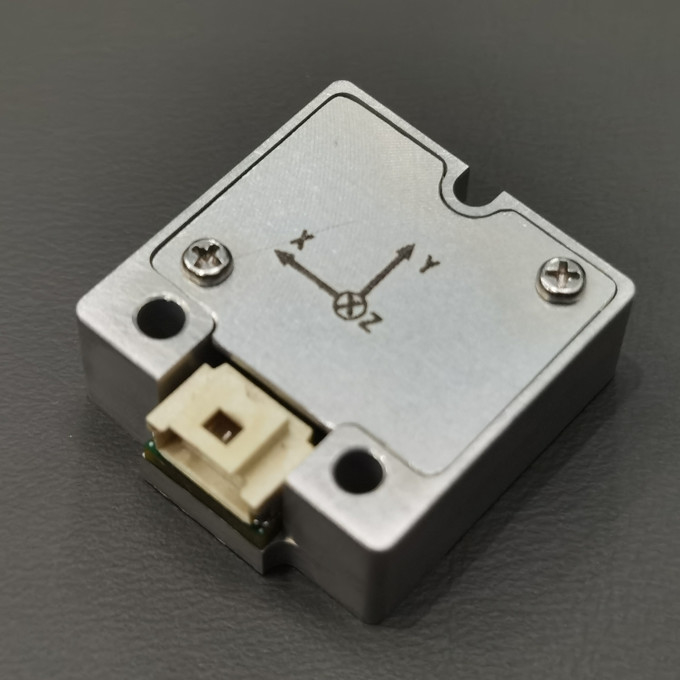

The 16488H inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.



Features:

  • Product Name: Integrated Motion Accelerometer Gyro (IMU Accelerometer Gyro)
  • Accelerometer allan variance: 0.015mg
  • Accelerometer zero-bias stability: 0.03mg
  • Accelerometer measure range: 16g
  • Gyrp scale factor accuracy: 0.3%
  • Working temperature: -40~70℃


Technical Parameters:

Parameter Specification
Power Supply Voltage 3V~3.6V
Working temperature -40~70℃
Accelerometer zero-bias stability 0.03mg
MTBF > 20000h
Baud rate 15MHz
Gyro measure range 450deg/s
Weight 50g
Gyrp scale factor accuracy 0.3%
Accelerometer measure range 16g
Size 47×44×14


Applications:

The Avic 16488H Inertial Measurement Accelerometer Gyro (IMU) offers a reliable and accurate solution for integrated measurement applications. Certified with CE, it has a minimum order quantity of 1 and is priced at 670 USD, with a delivery time of 1 week. It comes with power supply voltage of 3V~3.6V, gyro scale factor accuracy of 0.3%, power consumption of 1.5w, zero-bias stability of 0.8°/h and accelerometer allan variance of 0.015mg. Packaged in a box with sponge, it has a supply ability of 1000/month and payment terms of 100% in advance. It is an ideal choice for applications requiring stable and accurate inertial measurement.



Customization:

Avic 16488H Integrated Measurement Accelerometer Gyro (IMU) is a high-performance inertial measurement accelerometer gyro system with integrated motion accelerometer gyro. It is designed with CE certification, minimum order quantity 1, price 2400 USD, box with sponge for packaging, 1 week delivery time, 100% in advance payment terms, 1000/month supply ability, 15MHz baud rate, 47×44×14 size, 1.5w power consumption, 3V~3.6V power supply voltage and -40~70℃ working temperature.

Avic 16488H IMU is ideal for applications such as research and development, surveillance, monitoring, navigation, motion sensing, precision motion tracking, inertial guidance, and navigation. It offers superior performance in terms of accuracy, stability, and reliability.

Avic 16488H IMU is your reliable choice for integrated motion accelerometer gyro applications.



Support and Services:

IMU Accelerometer Gyro Technical Support and Services

We are committed to providing the highest quality of customer service and technical support for the IMU Accelerometer Gyro. Our team of experts is available to provide assistance with product installation, troubleshooting, and product optimization.

We offer a variety of technical support services, including:

  • Phone support – Our team of experts is available to answer any questions you may have about the product.
  • Email support – We offer email support to address any product-related issues.
  • Live chat support – Our team is available 24/7 to provide live chat support.
  • Software updates – We offer free software updates to ensure that your product is always up-to-date.
  • Hardware replacements – We provide hardware replacements in the event of a malfunction.

We stand behind our products and are committed to providing the best customer service and technical support. If you have any questions or need assistance, please don’t hesitate to contact us.



Packing and Shipping:

Packaging and Shipping for IMU Accelerometer Gyro:

  • The product will be individually packaged in an anti-static plastic bag.
  • The item will be shipped in a corrugated box to prevent any damage during transit.
  • The item will be shipped using a reliable shipping carrier with a tracking number.


FAQ:

Q1: What is the brand name of this IMU Accelerometer Gyro?
A1: The brand name of this IMU Accelerometer Gyro is Avic.
Q2: What is the model number of this IMU Accelerometer Gyro?
A2: The model number of this IMU Accelerometer Gyro is 16488C.
Q3: Where is this IMU Accelerometer Gyro made?
A3: This IMU Accelerometer Gyro is made in China.
Q4: What certifications does this IMU Accelerometer Gyro have?
A4: This IMU Accelerometer Gyro has CE certification.
Q5: How much does this IMU Accelerometer Gyro cost?
A5: This IMU Accelerometer Gyro costs 2400 USD.
