Home Products

IMU Accelerometer Gyro

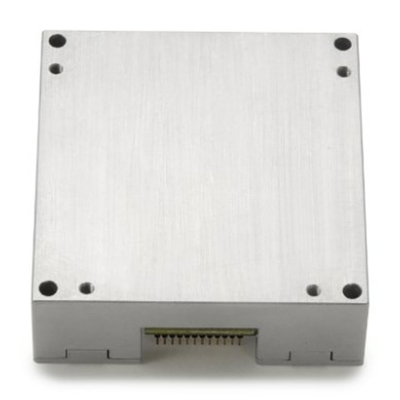

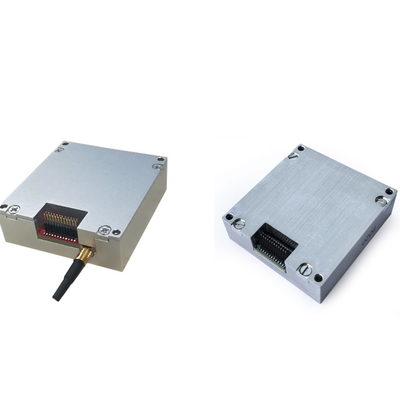

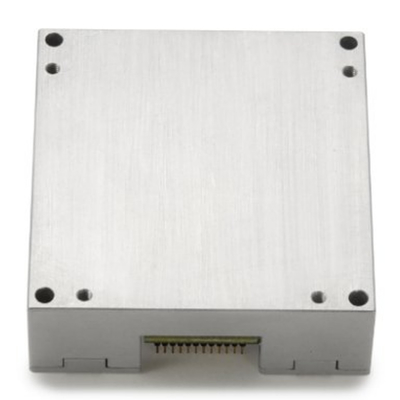

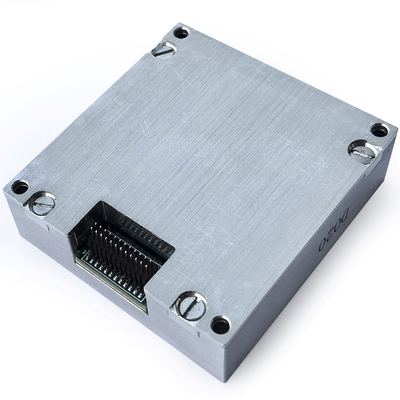

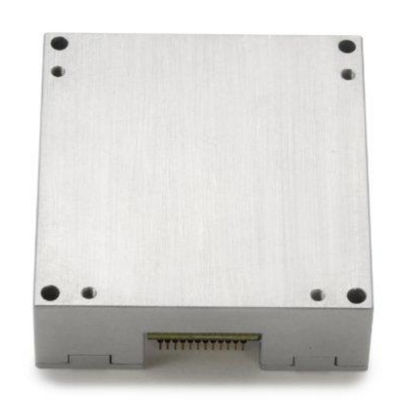

Power Consumption 1.5w Integrated Motion Accelerometer 15MHz Baud Rate

Name: Power Consumption 1.5w Integrated Motion Accelerometer 15MHz Baud Rate
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488C
Price: 670 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488C
MOQ:	1
Price:	670 USD
Payment Terms:	100% in advance
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Baud Rate:

15MHz

Working Temperature:

-40~70℃

Size:

47×44×14

MTBF:

> 20000h

Gyrp Scale Factor Accuracy:

0.3%

Zero-bias Stability:

0.8 °/h

Accelerometer Allan Variance:

0.015mg

Power Consumption:

1.5w

Packaging Details:

Box with sponge

Supply Ability:

1000/month

Highlight:

1.5w Integrated Motion Accelerometer

IMU Integrated Motion Accelerometer

15MHz Baud Rate Integrated Accelerometer

Product Description

Product Description:

The Integrated Motion Accelerometer Gyro (IMU) is a high-performance, low-power motion sensing solution that provides precise acceleration and angular rate measurements for a wide range of applications. With an impressive scale factor accuracy of 0.3%, this IMU packs a lot of power into a compact size of 47×44×14mm and an incredibly lightweight 50g. It can be powered by a voltage ranging from 3V to 3.6V, making it ideal for use in a variety of settings. Furthermore, with an MTBF of over 20000 hours, you can rest assured that this IMU will give you reliable and accurate readings for many years to come.

Features:

Product Name: IMU Accelerometer Gyro
Zero-bias stability: 0.8 °/h
Size: 47×44×14
Gyro scale factor nonlinearity: 0.01%FS
MTBF: >20000h
Accelerometer allan variance: 0.015mg
Integrated Measurement: Institute of Motion Accelerometer, Inertial Measurement Accelerometer Gyro

Technical Parameters:

Parameter	Value
Integrated Measurement Accelerometer Gyro	Yes
Integrated Motion Accelerometer	Yes
Accelerometer zero-bias stability	0.03mg
Gyro scale factor accuracy	0.3%
Working temperature	-40~70℃
Zero-bias stability	0.8 °/h
Baud rate	15MHz
MTBF	> 20000h
Accelerometer measure range	16g
Accelerometer allan variance	0.015mg
Weight	50g
Gyro measure range	450deg/s
