High-Precision IMU for Autonomous Vehicles – 6-Axis Gyro & Accelerometer

Name: High-Precision IMU for Autonomous Vehicles – 6-Axis Gyro & Accelerometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU115
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU115
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Military standard

Zero Bias Stability:

3.0º/h

Range:

±500°/s

Bandwidth:

80Hz

Communication Interface:

1-way UART

Size:

22.4mm X 22.4mm X 9.5mm

Weight:

16g

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

Triaxial FOG Fiber Optic Gyro

FOG Fiber Optic Gyro

Zero Bias FOG Fiber Optic Gyro

Product Description

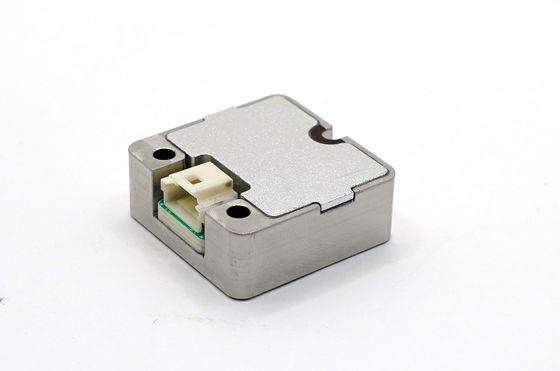

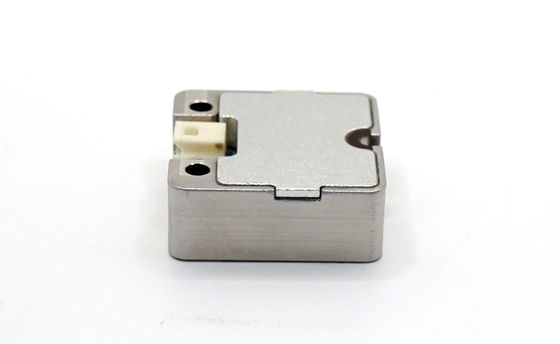

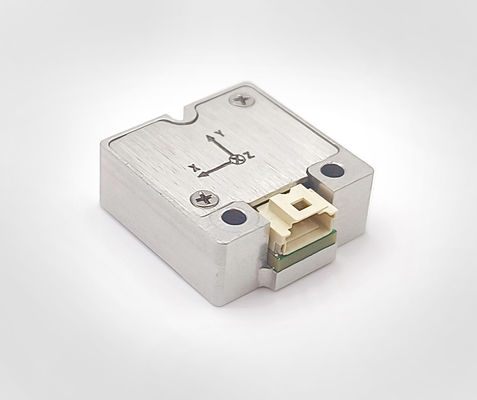

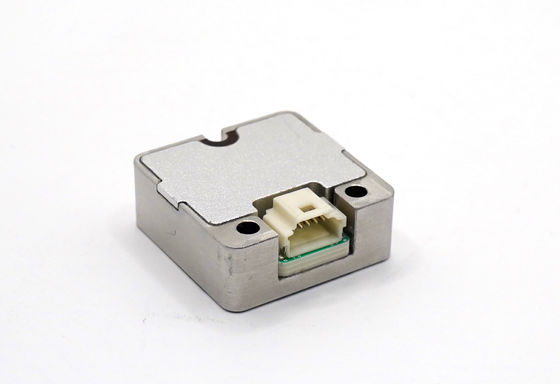

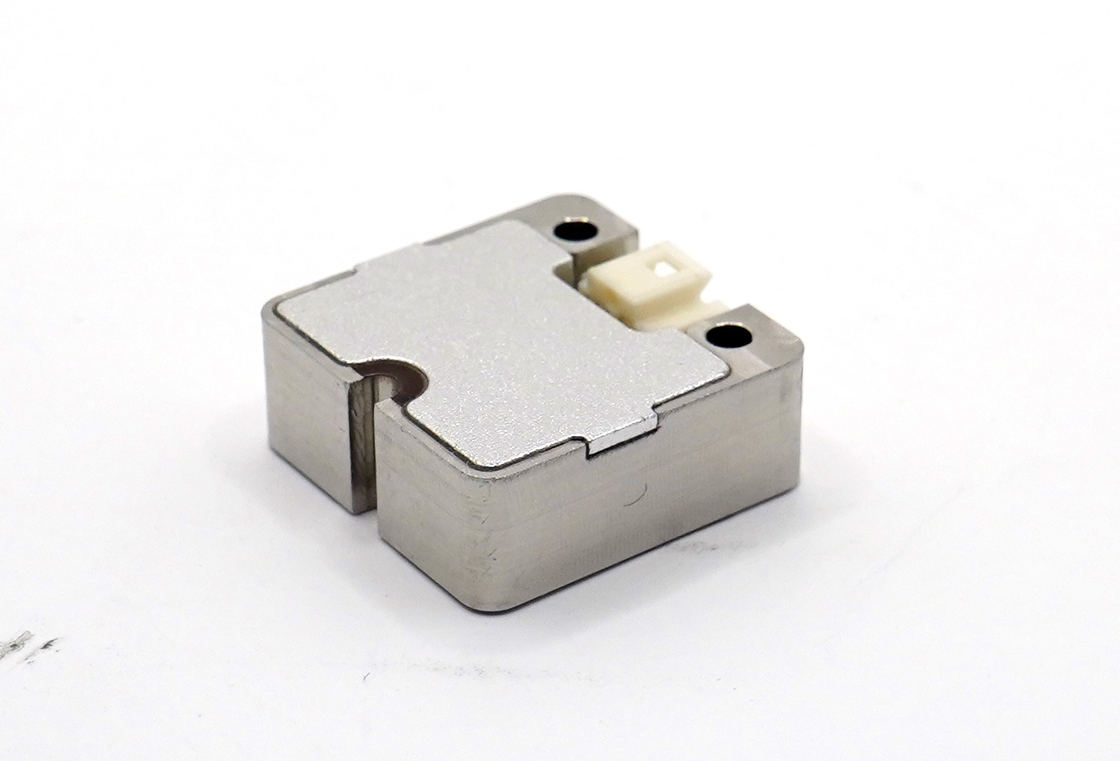

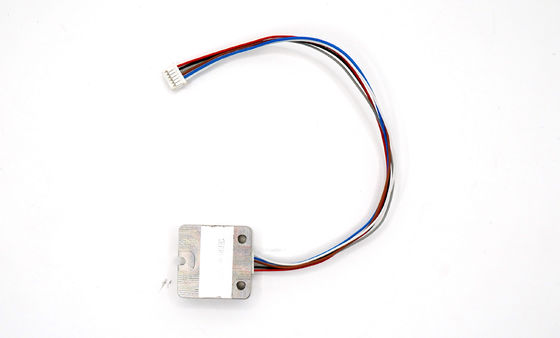

High-Precision IMU for Autonomous Vehicles – 6-Axis Gyro & Accelerometer

IMU115 is a high-precision 6-axis MEMS inertial measurement unit integrating a 3-axis gyroscope and a 3-axis accelerometer. It provides real-time compensated measurements of angular rate (±250°/s, optional ±500°/s) and linear acceleration (±4g, configurable up to 16g) via a 1-way UART interface. The unit features temperature, installation misalignment, and nonlinear compensation, ensuring accurate motion sensing under extreme temperatures (-40°C to 80°C), vibration, and shock. Compact and reliable, IMU115 is ideal for UAV navigation, autonomous vehicles, intelligent driving, mapping, and stabilized platforms.

Product Features

Three-axis digital gyroscope:
- ±250º/s dynamic measuring range (500°/s optional)
- Zero bias stability: 10°/h (GJB, 10s, typical value), 6.0°/h (ALLAN, typical value)
Triaxial digital accelerometer:
- ±4g dynamic measurement range (configurable 16g)
- Zero-bias stability: 0.12 mg (GJB, 10s), 0.065 mg (ALLAN)
High reliability: MTBF > 20000h
Guaranteed accuracy within the full temperature range (-40℃ ~ 80℃): built-in high-performance temperature calibration and compensation algorithm
Suitable for working under strong vibration conditions
Interface: 1-way UART

Field of Application

Intelligent driving
Communication in motion
Mapping
Stabilize the platform

Product Indicators

Parameter	Test conditions	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range		250 \| 500	º/s
	Zero bias stability (Allan variance)	3.0		º/h
	Zero bias stability (10 s average, -40℃ ~ +80℃, constant temperature)	6.0		º/h
	Zero bias range	±0.2		º/s
	Zero bias variation over full temperature range	±0.3		º/s
	Scale factor accuracy	0.2		%
Accelerometer	Dynamic measuring range		4 \| 16	g
	Zero bias stability (Allan variance)	0.065		mg
	Zero bias stability (10 s average, -40℃ ~ +80℃, constant temperature)	0.12		mg
	Zero bias range	±3		mg
	Zero bias change in full temperature range, peak-to-peak value	±6		mg
	Scale factor accuracy	0.3		%
Note: Calculate the zero bias of the whole temperature change process, the temperature change rate is ≤1℃/min, and the temperature range is -40℃ ~ +80℃

Structure Outline
