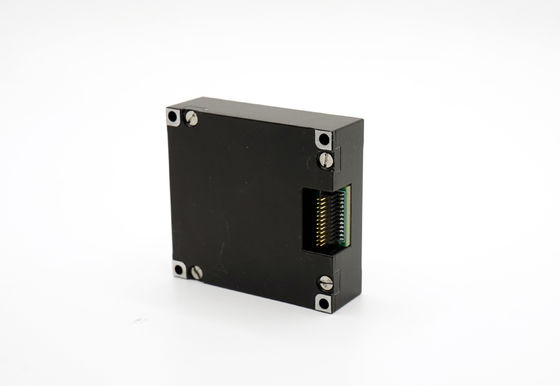

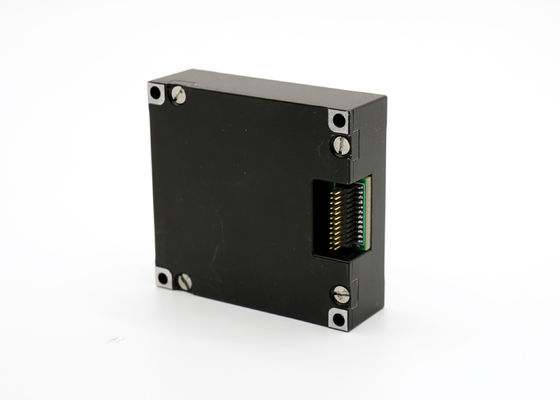

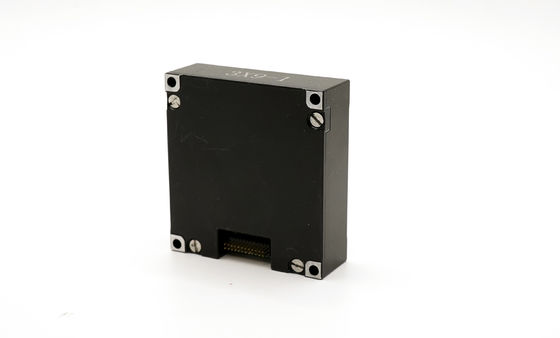

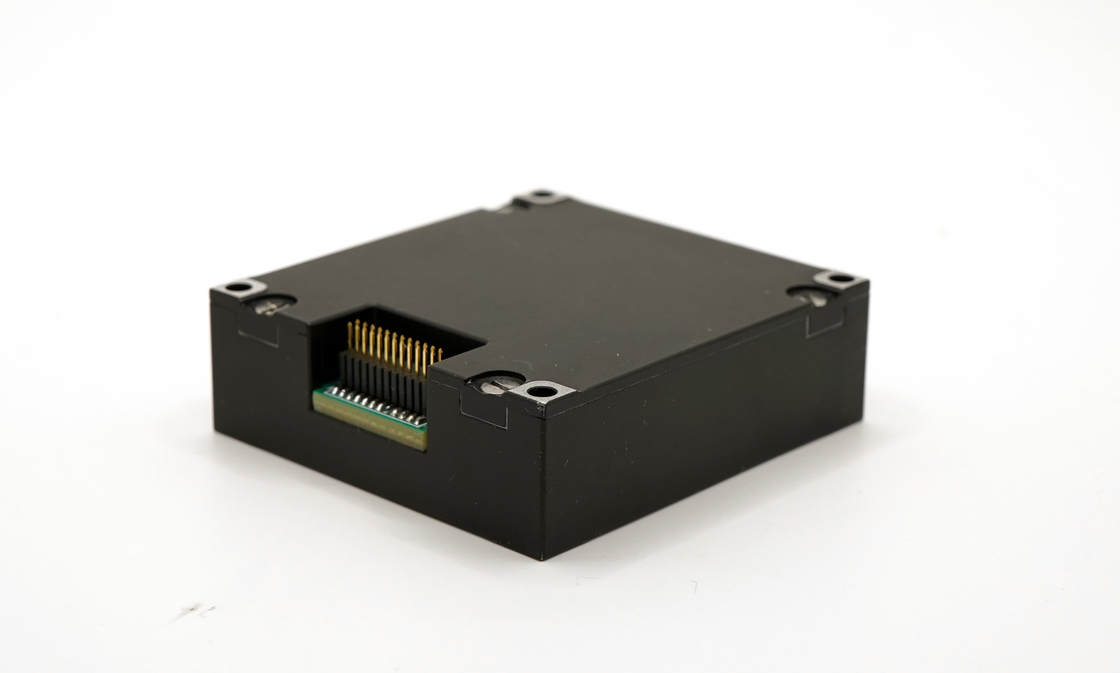

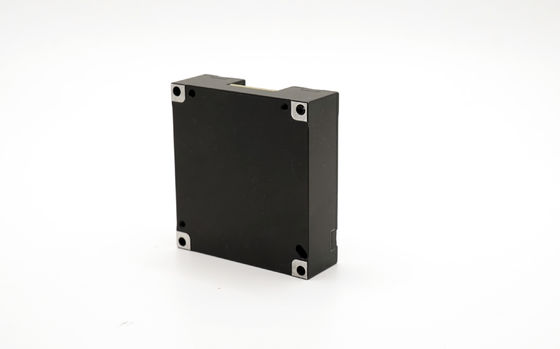

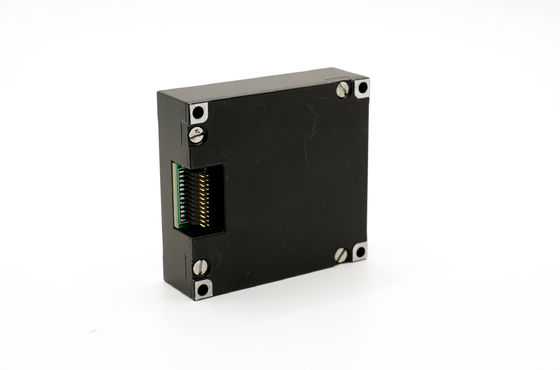

High Accuracy 6-Axis IMU MEMS Gyroscope & Accelerometer Module for Robotics UAV

Name: High Accuracy 6-Axis IMU MEMS Gyroscope & Accelerometer Module for Robotics UAV
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Stability:

≤0.3°/h,

Maximum Angular Rate:

±450°/s

Bias Repeatability:

≤5°/h

Angular Random Walk:

≤0.15°/h

Communication Interface:

1-way SPI

Acc Range:

±20g

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

500 deg/s range fiber optic gyro

small size fiber optic gyro

one axis fog gyroscope

Product Description

High Accuracy 6-Axis IMU MEMS Gyroscope & Accelerometer Module for Robotics UAV

The 16488HA MEMS Inertial Measurement Unit is a high-precision six-axis sensor integrating a three-axis gyroscope and three-axis accelerometer. It delivers exceptional performance with angular rate measurement up to ±450°/s and linear acceleration up to ±20 g, featuring low zero-bias instability (0.3°/h for gyro, 0.25 mg for accelerometer) and minimal random walk (0.15°/√h for gyro, 0.029 m/s/√h for accelerometer).

This unit includes full error compensation for temperature (-45~85 °C), installation misalignment, and nonlinear corrections to ensure precise inertial data. With SPI communication at 8-15 MHz, compact size, 250 Hz bandwidth, and 0.1% cross-coupling, it's ideal for UAV navigation, autonomous vehicles, robotics, industrial automation, marine/aerial navigation, mapping, satellite attitude control, and defense guidance systems.

Technical Specifications

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40℃ ~ 85℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40℃ ~ 85℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency	8		15	MHz
Electrical Characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use Environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Product Diagrams

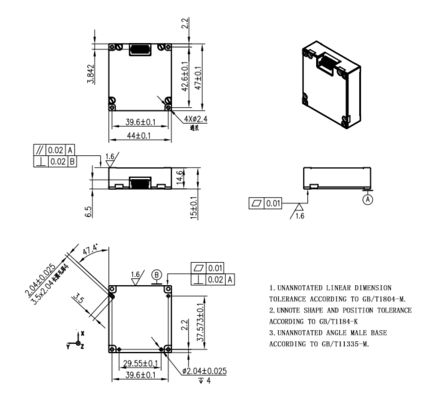

Outline Drawing

Connector Diagram

Axial Direction Diagram
