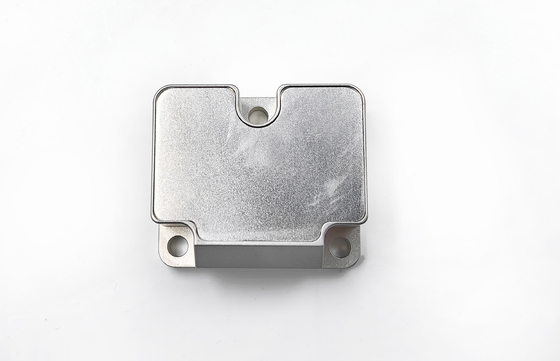

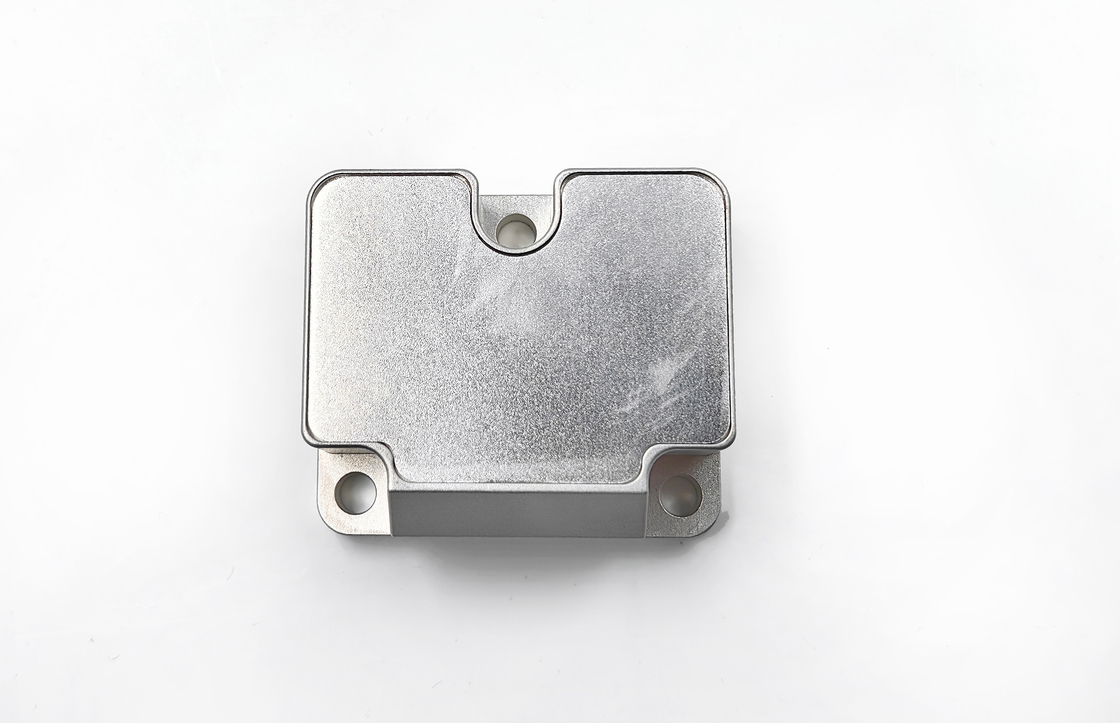

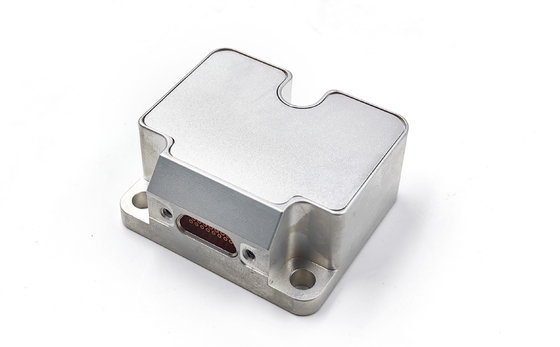

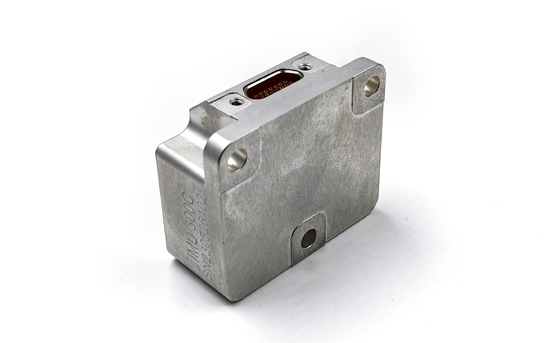

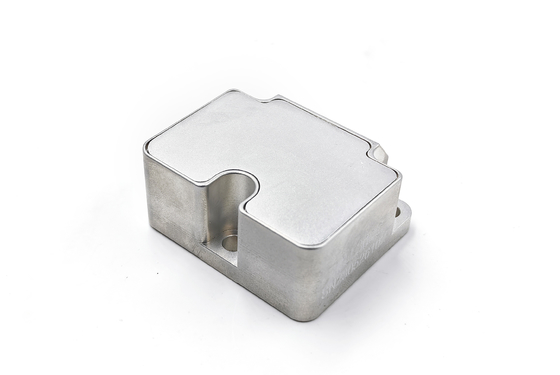

RS422 IMU Sensor 500º/s Gyro Range 16g Accelerometer

Name: RS422 IMU Sensor 500º/s Gyro Range 16g Accelerometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU300C
Price: 3,003.00 USD
Availability: InStock

Brand Name:	AVIC
Model Number:	IMU300C
MOQ:	1
Price:	negotiable
Payment Terms:	T/T,L/C
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

Inertial Measurement Unit

Gyro Measuring Range:

±500º/s

Gyro Zero Bias Stability:

0.3 Deg/h

Angular Random Walk:

0.06deg /√h

Accelerometer Range:

16g

Acc Bias Stability:

0.02mg

Scale Factor:

0.02%FS

Bandwidth:

200Hz

Output:

RS422

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

RS422 IMU sensor with gyro

IMU accelerometer 16g range

500º/s gyro sensor RS422

Product Description

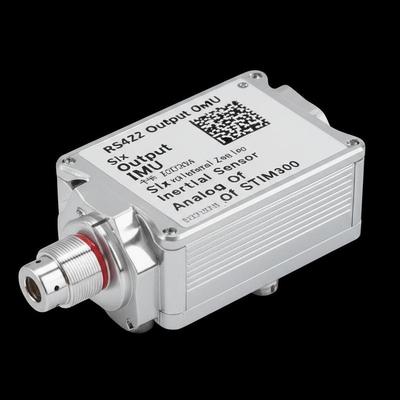

RS422 Output IMU Six Output Inertial Sensor Analog Of STIM300

Electrical Interface

The electrical connector of IMU300C-A0-IMU product is J30J-15 TJL, with the following contact definition:

Stitch number	Name	Type	Remark
1	TxD-	Output	RS422
2	RxD-	Input	RS422
3	TST_1	Output
4	TOV_1	Output
5	RST	Input
6	GND	Input
7	Spare
8	VCC_5V	Power source	+5v
9	TxD+	Output	RS422
10	RxD+	Input	RS422
11	ExtTrig	Input	Synchronous input 5V
12	GND	Input
13	GND	Input
14	Spare
15	GND	Power ground

Product Features

Three-axis digital gyroscope:
- ± 500º/s dynamic measuring range
- Zero-bias stability: 3 °/H (GJB, 10s), 0.3 °/H (ALLAN)
Triaxial digital accelerometer:
- ± 16 G dynamic measuring range
- Zero-bias stability: 0.1mg (GJB, 10S), 0.02mg (ALLAN)
High reliability: MTBF > 20000h
Guaranteed accuracy within full temperature range (-40℃ ~ 80℃): built-in high-performance temperature calibration and compensation algorithm
Suitable for working under strong vibration conditions
Interface 1-way RS422
Compatible with STIM300

Field of Application

Tactical and Industrial UAV
Smart Munitions
Seeker

Product Indicators

Parameter	Test conditions	Design accuracy	Unit
Gyro
Dynamic measuring range	-	±500	º/s
Bias stability	Allan variance (500 °/s range, normal temperature)	0.3	º/h
Bias stability	10 s average (-40℃ ~ +80℃, constant temperature)	3.0	º/h
Bias	Zero-bias range	0.1	º/s
Bias	Zero-bias variation over full temperature range	0.01	º/s
Bias	Start repeatability	0.005	º/s
Effect of linear acceleration on bias		0.002	º/s/g
Influence of vibration on Bias, change before and after vibration		0.002	º/s/g
Influence of vibration on Bias, change before and during vibration		0.001	º/s/g
Scale factor	Scale factor accuracy	0.1	%
Scale factor	Scale factor nonlinearity	0.01	%FS
Angular random walk	-	0.06	°/√hr
Bandwidth	-	200	Hz
Accelerometer
Dynamic measuring range	-	16	g
Bias stability	Allan variance (16g range, normal temperature)	0.02	mg
Bias stability	10 s average (-40℃ ~ +80℃, constant temperature)	0.03	mg
Bias	Zero-bias range	1	mg
Bias	Zero-bias variation over full temperature range	1	mg
Bias	Start repeatability	0.2	mg
Scale factor	Scale factor accuracy	0.3	%
Scale factor	Scale factor nonlinearity	0.02	%FS
Speed random walk	-	0.08	m/s/√hr
Bandwidth	-	200	Hz
Communication interface
1-way SR422	Baud rate	460.8	MHz
Sampling frequency	UART	1000	Hz
Electrical characteristics
Voltage	-	5	V
Power consumption	-	1.5	W
Ripple	P-P	150	mV
Structural characteristics
Size	-	38.6×44.6×21.5	mm
Weight	-	65±2	g
Use environment
Operating temperature	-	-40~80	℃
Storage temperature	-	-45~85	℃
Vibration	-	20~2000Hz,6.06g
Impact	-	6000g,0.5ms
Reliability
MTBF	-	20000	h
Continuous working time	-	120	h

Product Overview

The IMU300C-A0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.

IMU300C-A0-IMU features high reliability and strong environmental adaptability. By matching different software, the product can be widely used in tactical and industrial UAV, smart ammunition, seeker and other fields.

Size

Download IMU300C User Manual (PDF)
