Analog Devices ADIS16488 Tactical-Grade IMU for Precision Navigation System

Name: Analog Devices ADIS16488 Tactical-Grade IMU for Precision Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Random Walk:

≤0.15°/h

Scale Factor Nonlinear:

≤100ppm

Zero Bias Repeatability:

≤5°/h

Zero-bias Instability:

0.3º/h

Dynamic Measuring Range:

±450º/s

Acceleration Sensitivity:

2°/h/g

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

3 axis fiber optic gyroscope

close loop fiber optic gyroscope

military standard fiber optic gyro

Product Description

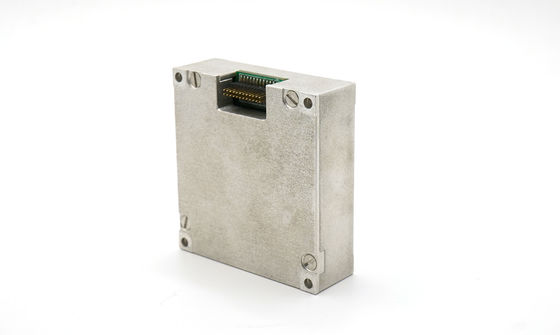

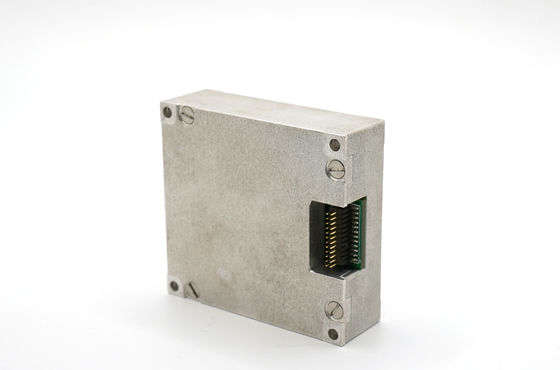

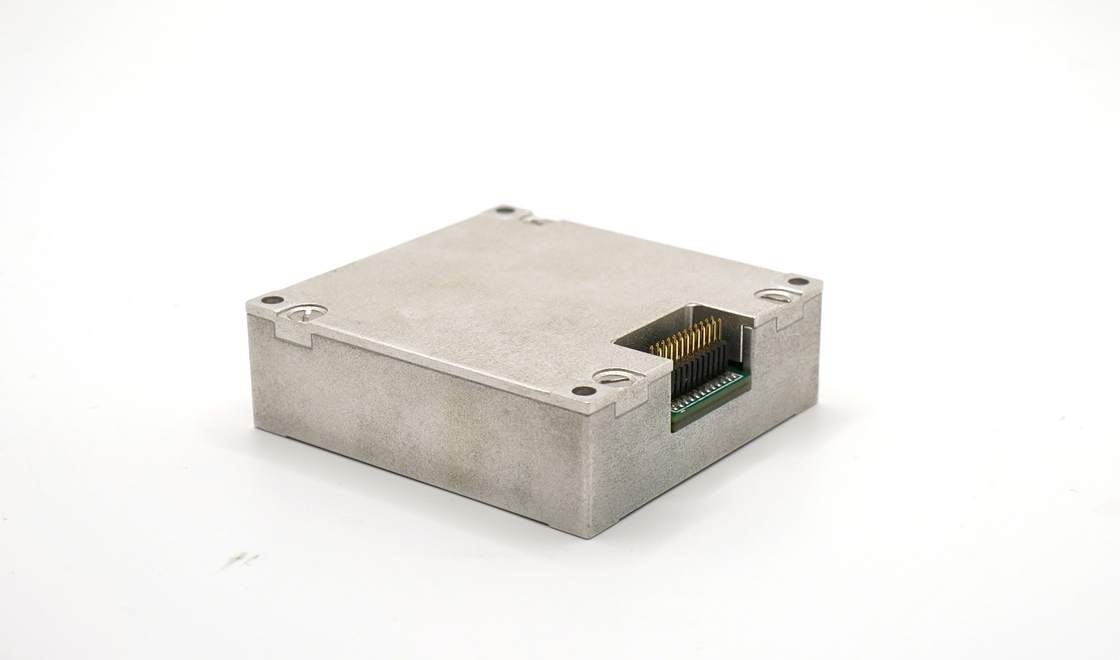

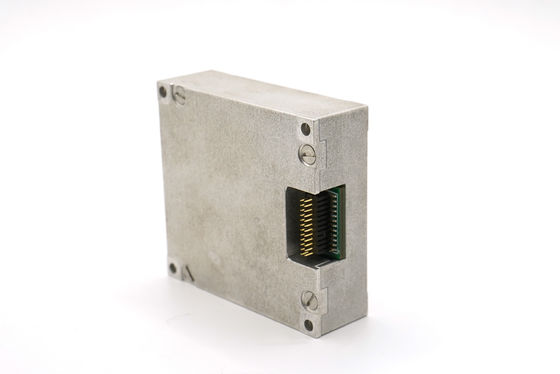

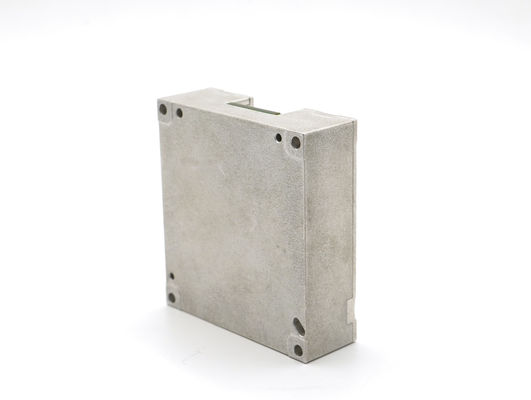

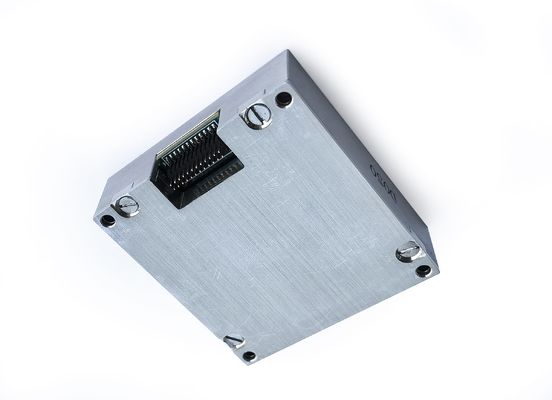

Analog Devices ADIS16488 Tactical-Grade IMU for Precision Navigation System

The ADIS16488HA is a compact MEMS IMU integrating a three-axis gyroscope and accelerometer, capable of measuring ±450°/s and ±20 g, with 0.3°/h gyro zero-bias instability and 0.25 mg accelerometer bias. This tactical-grade IMU features low random walk and high scale factor linearity for precise inertial sensing. Full compensation for temperature (-45~85 °C), misalignment, and nonlinear errors ensures stable operation. With SPI communication at 8-15 MHz, 1.5 W power consumption, 250 Hz bandwidth, and 0.1% cross-coupling, it's ideal for UAVs, autonomous robotics, industrial automation, mobile mapping, and precision navigation applications.

Technical Parameters

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Outline Drawing

Connector

Axial Direction
