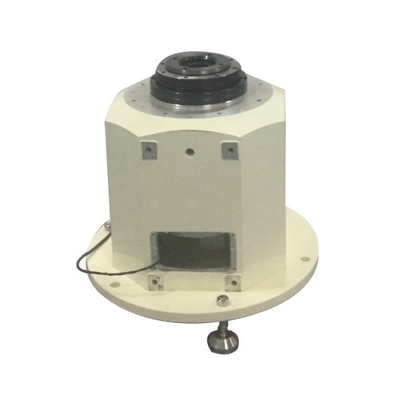

Single Axis Motion Simulator For INS Test With Thermal Chamber
| Serial number | Project | Indicators |
| 1 |
Table top Countertop load Load |
Ø300 mm Not less than 300 mm in Ø not more 5 kg Not more than 5 kg |
| 2 |
Speed range, deg/sec Speed range, |
± 10000 deg/sec |
| 3 |
Rotation, deg Rotation, degrees |
±360, not limited ± 360, unlimited |
|
4 |
Rate accuracy on 360 deg rotation, % 360 degree rotation rate accuracy,
|
±0,01%
± 0,001 deg/sec |
| 5 |
Position accuracy, arcsec Position accuracy, arcsec |
± 3 arcsec |
| 6 |
Max acceleration, deg/sec 2 Maximum acceleration, deg/sec2 |
15,000 degrees/second2 |
|
7 |
Payload, nominal: Nominal Payload: 1 UUT (115x115x115 mm) weight 2,3 kg. 1 UUT (115x115x115 mm) Weight 2.3 kg. |
|
| 8 |
Axis wobble, arcsec Axis wobble, arcsec |
± 2 arcsec |
| 9 |
Slipping rings Slip Ring |
50 pcs., 2А/150V DC 50 PCs, 2/150V DC |
|
10 |
Electrical feedthrough Electrical feedthrough |
D-SUB DHS-26 (2 pcs.) D-SUB DHS-26 (2) located in the center of the table Located in the center of the countertop |
| 11 |
Interface Communication interface |
Ethernet Ethernet |
| 12 |
Bandwidth, Hz, not less Bandwidth, Hz, not less than |
200 |
| 13 |
Electrical connection Electrical connection |
380V,60 Hz 380 V, 60 Hz |
| 15 |
Ability to work with climatic chamber -70 … + 150C Capable in the climate chamber-70 … Operation at + 150C |
Yes Yes |
|
The ability to modulate motion (especially rate) according to the sine function. The operator can adjust amplitude and frequency of changing the rate of the table The ability to regulate movement, especially velocity, according to a sinusoidal function. The operator can adjust the magnitude and frequency of the table rate of change The table must be compatible with customer climatic chamber. The shaft diameter 136 mm, the length 250 mm. The bench must be compatible with the customer's climate room. Shaft diameter 136 mm, length 250 mm.
The presence of the price which be located on vibration free foundation. The height if the frame not less than 200 mm. The existence of price is based on the absence of vibration. The height of the frame is not less than 200 mm. |
||
Single-axisturntableisakindofprecisetestingequipment,whichcanprovideangularposition,rateandacceleration inonedirection.
TheSingle-axisturntableisusedforthecharacterizationandcalibrationofgyroscope,inertialtesting systemandaccelerometer.Inaddition,thesingle-axisturntablecanalsoprovidedynamicmotioninonedirectionsuch asmotionsimulation,servocontrolandangularvibration.
ControlSystem:Highperformancecontrolunit,Highprecisionangularmeasurementsystem,PWMdigitalservo amplifier,Directdriveservomotor,etc.
KeyComponents:Bearing,Drivingmotor,Poweramplifier,Encoder,AD/DAcard,etc.(Adopthighperformance seriesproducts).
StructureType:Vertical,Horizontal
ProductCategory:Single-axisrateturntable,Single-axisrateandpositionangularvibrationturntable,Horizontal single-axisturntable.
