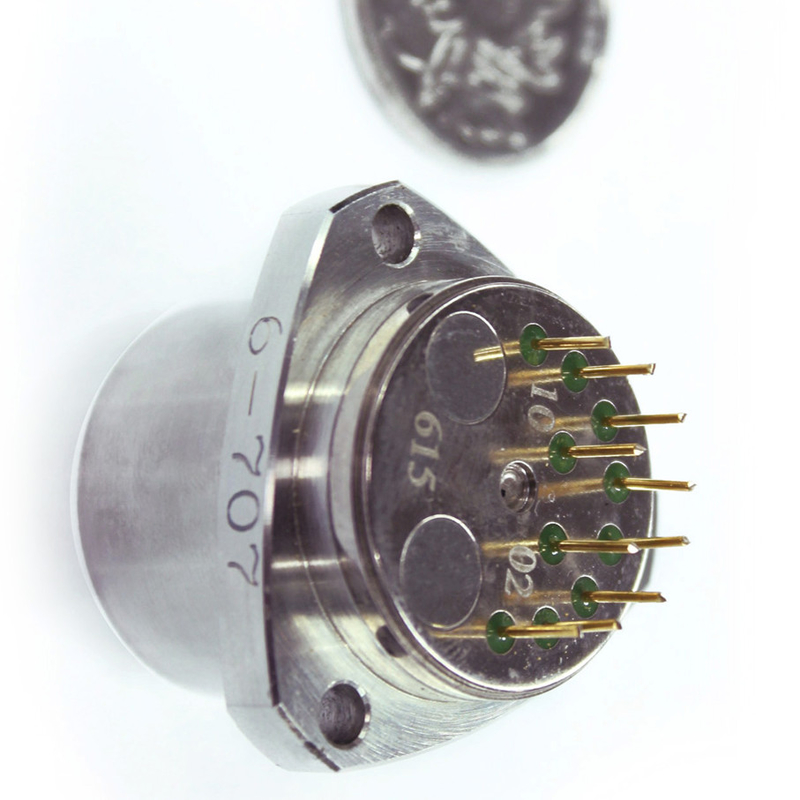

Quartz Flexible Accelerometer One Axis Inertial Accelerometer High Resolution Vibration Sensor

1
MOQ
1150 USD/pcs
Price
Quartz Flexible Accelerometer One Axis Inertial Accelerometer High Resolution Vibration Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Power: ±12~±15V
Bias Thermal Coefficient: ≤±10 μg /℃
Scale Factor Kl: 1.05~1.30 MA/g
Threshold /Resolution: 1μg
0g 4 Hours Short Time Stability: ≤10 μg
Noise (sample Resistance 840Ω): ≤5mv
Bias K0/k1: ≤±2mg
Bias Drift Sigma K0( 1σ,one Month): ≤10 μg
High Light:

Quartz Flexible Accelerometer

,

One Axis Inertial Accelerometer

Basic Infomation
Place of Origin: China
Brand Name: Avic
Certification: CE
Model Number: AV1-01
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 1 week
Payment Terms: 100% in advance
Supply Ability: 500/month
Product Description

Quartz Flexible Accelerometer One Axis Inertial Accelerometer High Resolution Vibration Sensor

AV1 Accelerometer.pdf







Technical Parameters:

Parameters Specification
Temperature range(Operating) -55~+85℃
Noise(sample resistance 840Ω) ≤5mv
Power ±12~±15V
Bandwidth 800~2500 Hz
Scale factor thermal coefficient ≤±10 Ppm /℃
Bias thermal coefficient ≤±10 μg /℃
Bias k0/k1 ≤±2mg
Weight ≤80g
Repeatability of scale factor Sigma kl/kl( 1σ,one month) ≤15ppm
Bias drift Sigma k0( 1σ,one month) ≤10 μg


Product Description:

The Quartz flexible accelerometer AV1 series is an extremely precise military inertial navigation class accelerometer, known for its outstanding long-term stability, repeatability, startup performance, and environmental adaptability. With high reliability, this product can be used for both static and dynamic testing; it functions as a standard vibration sensor as well as an inclination sensor.

The output current of this accelerometer has a linear relationship with the force or acceleration it receives. Users can adjust the appropriate sampling resistance according to their calculation to achieve high-precision outputs. Additionally, a built-in temperature sensor can offset value and scale factor compensations to reduce the environmental temperature’s impact.

This product is used for inertial measurement in military high-precision inertial navigation systems, as well as vibration isolation tests in the aerospace, aviation, ship, weapons, and other fields for precision instruments and equipment.



Features:

The features of the product include:

1. It features excellent turn-on repeatability performance.

2. Its structure is robust and resistant to environmental changes.

3. It is user-friendly and features an analog output.

4. An optional field adjustable range is available.

5. Three precision fastener precision mounting flanges secure it on almost any dataset.

6. Additionally, users can choose to add an internal temperature sensor for thermal compensation.

7. We also provide scale factor adjustment according to customer requirement.



Applications:

Avic's Vibration Measurement Flexure Accelerometer, Model Number AV1-01, is a high-performance sensor for vibration measurement. It is made in China and is certified by CE. The minimum order is 1 piece for 1150 USD/pcs. The package comes with a carton and sponge. Delivery time is 1 week, and payment terms are 100% in advance. The supply ability is 500/month. The repeatability of scale factor Sigma kl/kl (1σ,one month) is ≤15ppm, and the threshold/resolution is 1μg. The range is 50g, and the class II nonlinearity coefficient k2/k1 is ≤±10μg/g2. The weight of the product is ≤80g.



Support and Services:

Quartz Flexure Accelerometer Technical Support and Service

At XYZ Company, we provide technical support and service for our Quartz Flexure Accelerometer product. Our technical support staff is available to answer any questions you may have about the product.

We offer a range of services for our Quartz Flexure Accelerometer product, including:

  • Installation and setup assistance
  • Software and firmware updates
  • Troubleshooting and repair
  • On-site maintenance
  • Replacement parts

If you have any questions or need assistance with our Quartz Flexure Accelerometer product, please feel free to contact our technical support staff. We look forward to helping you.



Packing and Shipping:

Quartz Flexure Accelerometer
Packaging and Shipping:

  • The product is packaged and shipped in a durable cardboard box.
  • The product is securely sealed with foam padding and bubble wrap to prevent any damage during the shipping process.
  • The product is shipped via a reputable courier service that provides tracking and delivery confirmation.


FAQ:

Q1: What is the Brand Name of the Quartz Flexure Accelerometer?
A1: The Brand Name is Avic.
Q2: What is the Model Number of the Quartz Flexure Accelerometer?
A2: The Model Number is AV1-01.
Q3: Where is the place of origin of the Quartz Flexure Accelerometer?
A3: The place of origin is China.
Q4: Is the Quartz Flexure Accelerometer certified?
A4: Yes, it is CE certified.
Q5: What is the minimum order quantity and price of the Quartz Flexure Accelerometer?
A5: The minimum order quantity is 1 and the price is 1150 USD/pcs.
