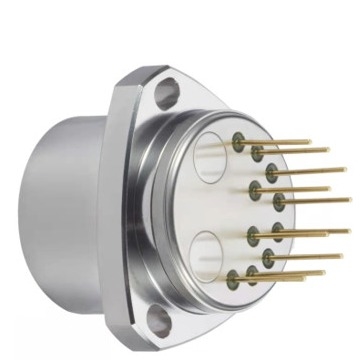

Low Bias Drift Flexiable Vibration Sensor Single Axis
The AV1 series Quartz flexible accelerometer is designed specifically for use in military inertial navigation systems. It is renowned for its excellent long-term stability, repeatability, start-up performance, environment adaptability and high reliability. It is capable of functioning in static or dynamic testing situations, as it is a standard vibration sensor and inclination sensor.
The product itself has a linear output current with the force or acceleration it receives. Users can select their desired sampling resistance to obtain the highest precision output. Depending on the user’s needs, the product is also available with an in-built temperature sensor that is designed to compensate for value and scale factor changes, reducing undue effects from the environment’s temperature.
This product is ideal for inertial measurements in military navigation systems, as well as vibration isolation tests for precision instruments and equipment in the aerospace, aviation, naval, weapons and other industries.
1. Excellent turn-on repeatability performance is guaranteed.
2. It is Environmentally rugged, and highly reliable.
3. Analog output is available, providing a fast response.
4. Its field adjustable range is one of its best features.
5. The three fastener precision mounting flange ensure its stability.
6. Internal temperature sensor for thermal compensation(option) is a great addition.
7. We offer scale factor adjustment ensures its accuracy.
Avic's AV1-01 Quartz Flexure Accelerometer is a highly reliable and accurate acceleration sensor device that is perfect for vibration measurement. This CE-certified accelerometer is made from quartz flexure, and it has a threshold/resolution of 1μg, Class II nonlinearity coefficient k2/k1 of ≤±10μg/g2, temperature range of -55~+85℃, bias drift sigma k0 of ≤10 μg, and repeatability of scale factor sigma kl/kl of ≤15ppm.
This flexure accelerometer is perfect for a wide range of applications, including aerospace engineering, automotive testing, and seismic monitoring. It is also suitable for transportation infrastructure, such as railway and bridge monitoring. Furthermore, this device can be used for industrial testing, such as high-precision measuring of machinery and motors.
The AV1-01 Quartz Flexure Accelerometer is available for a competitive price of 1150 USD/pcs, with a minimum order quantity of 1. It is packaged in a carton with sponge, and delivery within 1 week is guaranteed. Payment must be made 100% in advance, and Avic can provide a maximum of 500 pieces per month.
Quartz Flexure Accelerometer offers professional technical support and service. Our dedicated technical team is available 24/7 to answer your questions and provide assistance. We provide a comprehensive range of support services, including:
If you have any questions or need assistance, please don't hesitate to contact us.
Packaging and Shipping for Quartz Flexure Accelerometer:
The Quartz Flexure Accelerometer will be packaged in a sturdy corrugated box with appropriate cushioning materials to protect against shock, vibration, and environmental exposure during shipping.
The package will be marked with the following information:
- Customer Name
- Shipping Address
- PO Number
- Description of Contents
- Weight
- Date and Time of Shipment
The package will be shipped using a reliable carrier with tracking information.
| Parameter | Value |
|---|---|
| Product | Quartz Flexure Accelerometer |
| Sensor Type | Quartz Vibration Sensor |
| Bias k0/k1 | ≤±2mg |
| Bandwidth | 800~2500 Hz |
| Scale factor kl | 1.05~1.30 MA/g |
| Power | ±12~±15V |
| Range | 50g |
| Weight | ≤80g |
| Bias thermal coefficient | ≤±10 μg /℃ |
| Class II nonlinearity coefficient k2/k1 | ≤±10μg /g2 |
| Repeatability of scale factor Sigma kl/kl( 1σ,one month) | ≤15ppm |
| Temperature range(Operating) | -55~+85℃ |
