UAV Inertial accelerometer big range vibration sensor for INS

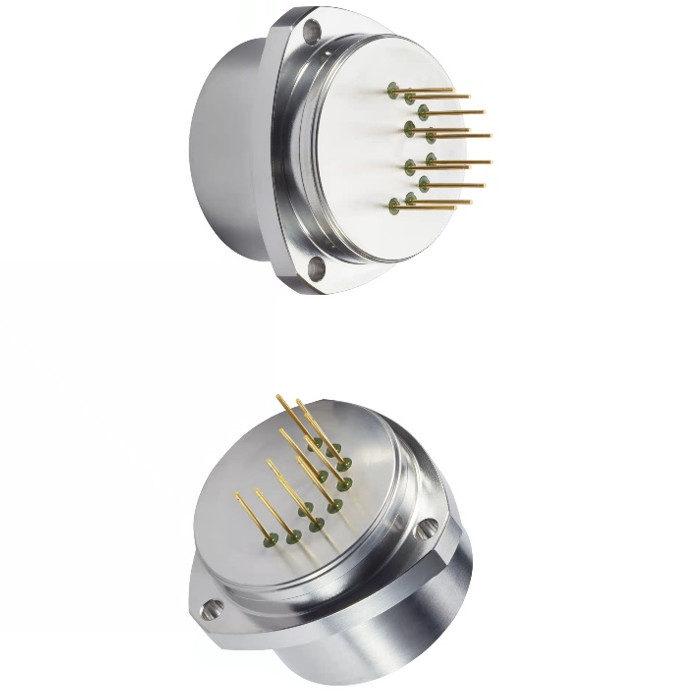

AV4 series quartz flexible accelerometer is a high temperature and anti-vibration accelerometer, the product has excellent repeatability, starting performance, high temperature and high reliability characteristics, it can be used for static testing and dynamic testing, it is also a standard vibration sensor.
Products adopt unique high temperature design, packaging process and special circuit, product output current is proportional to the measured acceleration, the user can calculate the appropriate sampling resistance, achieve high precision output, and according to the user demand built-in temperature sensor, used for the partial value and scale factor compensation, reduce the influence of environmental temperature. QA 650, T185, T160, JAE series products can be replaced in situ, but we adopt double torque structure, it is different from other company products. We can make the accelerometer bias value and scale factor more stable; it is launch since 2010, this product has delivered thousands of products. After years of application, it has become a mature product, especially a large number of applications in the drilling measurement of oil drilling
Application fields: inclination test of bridge, dam, oil well, coal mine, etc., high-speed railway control, ship stability control, etc.
Applications
Index Table
No. | Parameters | AV4-1 | AV4-2 | AV4-3 |
1 | Range | ±30g | ±30g | ±30g |
2 | Bias K0/K1 | <10mg | <40mg | <40mg |
3 | Bias comprehensive repeatability σK0 (1σ,1 month) | <50µg | <250µg | <250µg |
4 | Thermal coefficient | <50µg/℃ | <150µg/℃ | <150µg/℃ |
5 | Scale factor K1 | 1.1~1.4 mA/g | 1.1~1.4 mA/g | 1.1~1.4 mA/g |
6 | Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month) | <80 ppm | <250 ppm | <250 ppm |
7 | Bias thermal coefficient (full temp. mean) | <100ppm | <200ppm | <200ppm |
8 | Installation error | <1500µrad | <1500µrad | <1500µrad |
9 | Vibration | <100µg/g 2rms (50-500Hz) | <100µg/g 2rms (50-500Hz) | <100µg/g 2rms (50-500Hz) |
10 | Noise | <3000µg-rms (0-10000Hz) | <3000µg-rms (0-10000Hz) | <3000µg-rms (0-10000Hz) |
11 | Working temp. | -55~96℃ | -55~125℃ | -55~180℃ |
12 | Impact | 500 g 0.5ms | 1000 g 0.5ms | 1000 g 0.5ms |
13 | Sinusoidal vibration | 25 g @30-500Hz | 25 g @30-500Hz | 25 g @30-500Hz |
14 | Resolution | <10µg | <10µg | <10µg |
15 | Bandwidth | >300 Hz | >300 Hz | >300 Hz |
16 | Consume current | <20 mA | <20 mA | <20 mA |
18 | Power dissipation @ ±15VDC | <480 mW | <480 mW | <480 mW |
19 | Input voltage | ±13 to ±18V | ±13 to ±18V | ±13 to ±18V |
20 | Weight | <65g 55nominal | <65g | <65g |
21 | Mounting diameter | Ф25mm1.0inches | Ф25mm | Ф25mm |
22 | Height | <21.5mm | <21.5mm | <21.5mm |
23 | Shell material | 300 Series stainless steel | 300 Series stainless steel | 300 Series stainless steel |
