IMU Accelerometer Gyro

6 axis Inertial Measurement Units Low Bias IMU 500deg/S Range

Name: 6 axis Inertial Measurement Units Low Bias IMU 500deg/S Range
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: GI200H-A0
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	GI200H-A0
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS

Product Name:

Inertial Measurement Unit

Gryo Range:

±500deg/s

Accelerometer Measure Range:

16g

Accelerometer Allan Variance:

0.02mg

Gryo Allan Variance:

0.6deg/h

MTBF:

20000h

Gyro Scale Factor Nonlinearity:

0.02%FS

Vibration:

20~2000Hz

Packaging Details:

Box with sponge

Supply Ability:

1000/month

Highlight:

500deg/S Inertial Measurement Units

High Precision Inertial Measurement Units

Low bias Inertial Measurement Units

Product Description

Low bias IMU 500deg/S Range Inertial Measurement Units

Product Description

GI200H-A0-IMU is an inertial measurement unit (IMU) based on micro-mechanical technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.

Main Features

1)Three-axis digital gyroscope:

± 500º/s dynamic measuring range;
Zero-bias stability: 3 °/h (GJB, 10s), 0.6 °/h (ALLAN);

2)Triaxial digital accelerometer:

±16g dynamic measuring range;
Zero-bias stability: 0.1mg (GJB, 10S), 0.02mg (ALLAN);

3)High reliability: MTBF > 20000h;
4)Guaranteed accuracy within the full temperature range (-40 ℃~ 70 ℃): built-in high-performance temperature calibration and compensation algorithm;
5)Suitable for working under strong vibration conditions;
6)Interface 1-channel RS42

Main Application

Tactical and Industrial UAV
Smart Munitions
Seeker

Product indicators

Parameter		Test conditions	Design accuracy	Unit
Gyro	Dynamic measuring range	-	±500	º/s
	Zero bias stability	Allan variance (500 °/s range, normal temperature)	0.6	º/h
	Zero bias stability	10 s average (-40 ℃ ~ + 70 ℃, constant temperature),	3	º/h
	Zero bias	Zero bias range	0.1	º/s
		Zero-bias variation over full temperature range	0.03	º/s
		Start repeatability	0.005	º/s
		Effect of linear acceleration on bias	0.002	º/s/g
		Influence of vibration on zero bias, change before and after vibration	0.003	º/s/g
		Influence of vibration on zero bias, change before and during vibration	0.003	º/s/g
	Scale factor	Scale factor accuracy	0.2	%
	Scale factor	Scale factor nonlinearity	0.02	%FS
	Bandwidth	-	200	Hz
Accelerometer	Dynamic measuring range	-	16	g
	Zero bias stability	Allan variance (16g range, normal temperature)	0.02	mg
	Zero bias stability	10 s average (normal temperature, 1σ)	0.1	mg
	Zero bias	Zero bias range	1	mg
		Zero bias variation over full temperature range	1	mg
		Startup repeatability (1σ)	0.2	mg
	Scale factor	Scale factor accuracy	0.3	%
	Scale factor	Scale factor nonlinearity	0.02	%FS
	Bandwidth	-	200	Hz
Communication interface	1-channel SR422	Baud rate	460.8	MHz
Communication interface	Sampling frequency	UART	1000	Hz
Electrical characteristics	Voltage	-	5±0.1	V
	Power consumption	-	≤1.5	W
	Ripple	P-P	150	mV
Structural characteristics	Size	Tolerance ± 0.1	38.5×44.5×21.5	mm
Structural characteristics	Weight	Potting/no potting	70±2/45±2	g
Use environment	Operating temperature	-	-40~70	℃
	Storage temperature	-	-45~85	℃
	Vibration	-	20~2000Hz,6.06g
	Impact	-	6000g,0.5ms
Reliability	MTBF	-	20000	h
Reliability	Continuous working time	-	120	h

Product Structure

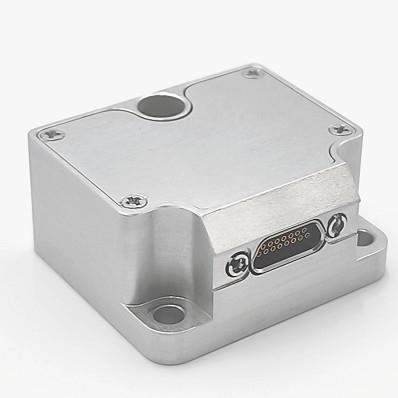

6 axis Inertial Measurement Units Low Bias IMU 500deg/S Range 0
L38.5mm x W44.5mm x H21.5mm(L x W x H)
