Home Products

IMU Accelerometer Gyro

Low Drift Inertial Measurement Unit Sensor For Dam Monitoring

Name: Low Drift Inertial Measurement Unit Sensor For Dam Monitoring
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: GI200F-A0
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	GI200F-A0
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

IMU Accelerometer Gyro

Gryo Scope:

500deg/s

Gryo Allan Variance:

2deg/h

Accelerometer Allan Variance:

0.1mg

Accelerometer Scope:

16g

Communication Interface:

1-channel SPI/UART

Gryo Scale Factor Accuracy:

0.3%

Power Supply Voltage:

3.3V

Packaging Details:

sponge/box

Supply Ability:

1000/month

Highlight:

High Performance Inertial Measurement Unit Sensor

Intelligent Driving Inertial Measurement Unit Sensor

UAVs Inertial Measurement Unit Sensor

Product Description

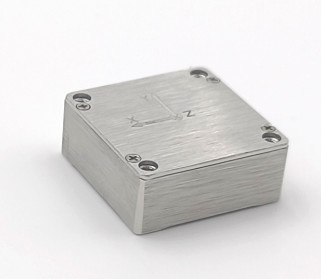

Low Drift Inertial Measurement Unit Sensor

Product Description

The GI200F-A0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.

Main Functions

Three-axis digital gyroscope:
1. ± 500º/s dynamic measuring range;
2. Zero bias stability: 10 °/H (GJB, 10s), 2.0 °/H (ALLAN);
Triaxial digital accelerometer:
1. ± 16g dynamic measuring range;
2. Zero-bias stability: 0.5mg (GJB, 10s), 0.1mg (ALLAN);
High reliability: MTBF > 20000h;
Guaranteed accuracy within the full temperature range (-40 ℃~ 70 ℃): built-in high-performance temperature calibration and compensation algorithm;
Suitable for working under strong vibration conditions;
Interface 1 channel SPI, 1 channel UART.

Performance Index

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyro	Dynamic measuring range				500	º/s
	Zero bias stability	Allan variance		2		º/h
	Zero bias stability	10 s average (-40 ℃ ~ + 70 ℃, constant temperature)		10		º/h
	Zero bias	Zero bias range		±0.5		º/s
	Zero bias	Zero-bias variation over full temperature range①		±0.5		º/s
	Scale factor	Scale factor accuracy		0.3		%
	Scale factor	Scale factor nonlinearity		0.02		%FS
	Bandwidth			200		Hz
Accelerometer	Dynamic measuring range			16		g
	Zero bias stability	Allan variance		0.1		mg
	Zero bias stability	10 s average (-40 ℃ ~ + 70 ℃, constant temperature)		0.5		mg
	Zero bias	Zero bias range		2		mg
	Zero bias	Zero bias change in full temperature range, peak-to-peak value①		2		mg
	Scale factor	Scale factor accuracy		0.3		%
	Scale factor	Scale factor nonlinearity		0.02		%FS
	Bandwidth			200		Hz
Communication interface	1-channel SPI	Baud rate			15	MHz
	UART	Baud rate		230.4		Kbps
	Sampling frequency	SPI		1000		Hz
	Sampling frequency	UART		200	1000	Hz
Electrical characteristics	Voltage			3.3		V
	Power consumption				1	W
	Ripple	P-P			100	mV
Structural characteristics	Size			24×24×10		mm
Structural characteristics	Weight			10		g
Use environment	Operating temperature		-40		70	℃
	Storage temperature		-45		85	℃
	Vibration			20~2000Hz,6.06g
	Impact			1000g,0.5ms
Reliability	MTBF			20000		h
Reliability	Continuous working time			120		h
1: Calculate the zero deviation of the whole temperature change process, the temperature change rate is ≤ 1 ℃/min, and the temperature range is-40 ℃ ~ + 70 ℃;

Electrical interface

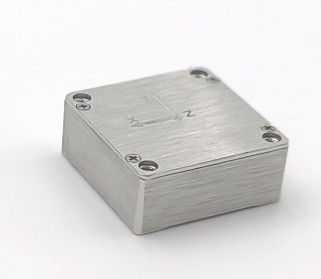

Product Structure

L24mm x W24mm x H10mm(L x W x H)
