High Precision MEMS Gyroscope Chip with 0.05°/h Bias Instability for IMU Accelerometer Gyro

High Precision MEMS Gyroscope Chip with 0.05°/h Bias Instability for IMU Accelerometer Gyro

Brand Name: Firepower
Model Number: MGZ332HC-P5
MOQ: 1
Payment Terms: L/C,T/T
Supply Ability: 500pcs
Detail Information
Place of Origin:
CHINA
Certification:
CE
Product Name:
MEMS Gyroscope Chip
Bias Instability:
0.05°/h
Bias Stability @10s:
<0.5°/h
(Bias Stability @1s:
<1.5°/h
Angular Random Walk:
<0.025°/ √h
Bias Error Over Temperature:
<5°/h
VRE:
<1°/hr/g
Data Rate:
12K
Packaging Details:
Wooden box
Supply Ability:
500pcs
Highlight:

Three Axis Motion Simulation Turntable

,

Multi Function Turntable

,

Gyro Sensor Testing Turntable

Product Description

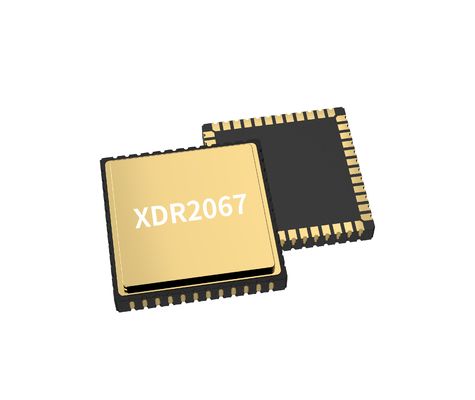

High Precision MEMS Gyroscope Chip with 0.05°/h Bias Instability for IMU Accelerometer Gyro

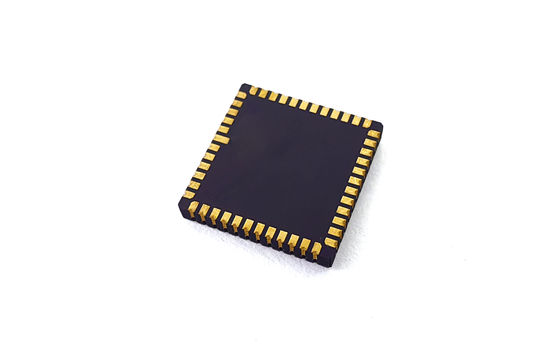

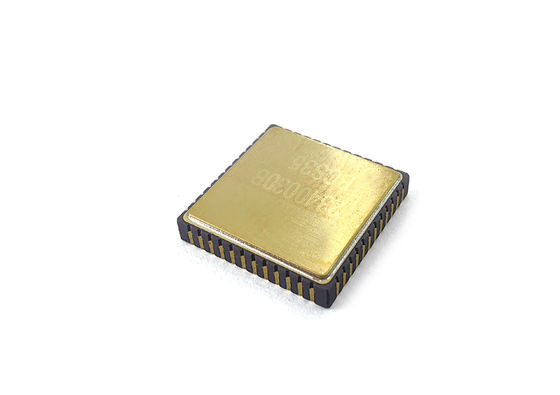

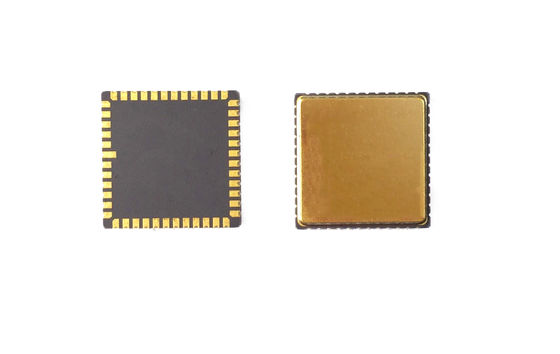

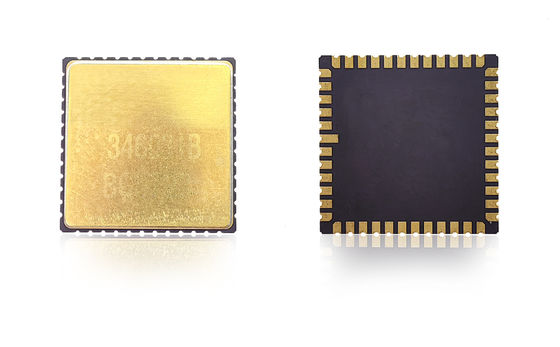

The MEMS Gyroscope Chip is a miniature solid-state angular rate sensor designed for accurate measurement of rotational velocity. It incorporates advanced MEMS micromachining technology and closed-loop drive architecture to deliver high precision, low bias instability, and excellent vibration resistance.
The chip features digital output through SPI or UART interface and is fully temperature compensated, ensuring consistent performance in dynamic environments. Ideal for applications in UAVs, robotics, vehicle stabilization systems, and tactical-grade inertial navigation units.
Main Parameters
Performance MGZ332HC-P1 MGZ332HC-P5 MGZ318HC-A1 MGZ221HC-A4 MGZ330HC-O1 MGZ330HC-A1
Range (deg/s) 400 400 400 400 400 100
Band Width @3DB (customized) (Hz) 90 180 200 200 300 50
Output accuracy (digital SPI) (bits) 24 24 24 24 24 24
Output rate (ODR) (customized) (Hz) 12K 12K 12K 12K 12K 12K
Delay (customized) (ms) <3 <1.5 <1.5 <1.5 <1 <6
Bias stability (deg/hr(1o)) <0.05 <0.05 <0.1 <0.5 <0.1 <0.02
Bias stability (1σ 10s) (deg/hr(1o)) <0.5 <0.5 <1 <5 <1 <0.1
Bias stability (1σ 1s) (deg/hr(1o)) <1.5 <1.5 <3 <15 <3 <0.3
Bias error over temperature (1σ) (deg/hr(1o)) <5 <5 <10 <30 10 5
Bias temperature variations, calibrated(1σ) (deg/hr(1o)) <0.5 <0.5 <1 <10 <1 <0.5
Bias repeatability (deg/hr(1o)) <0.5 <0.5 <0.5 <3 <0.3 <0.1
Scale factor at 25°C (lsb/deg/s) 20000 20000 16000 16000 20000 80000
Scale factor repeatability (1σ) (ppm(1o)) <20ppm <20ppm <20ppm <20ppm <100ppm <100ppm
Scale factor vs temperature (1σ) (ppm(1o)) 100ppm 100ppm <100ppm <100ppm <300ppm <300ppm
Scale factor non-linearity (1σ) (ppm) 100ppm 100ppm <150ppm <150ppm <300ppm <300ppm
Angular random walk (ARW) (°/√h) <0.025 <0.025 <0.05 <0.25 <0.05 <0.005
Noise (Peak to Peak) (deg/s) <0.15 <0.3 <0.35 <0.4 <0.25 <0.015
GValue sensitivity (°/hr/g) <1 <1 <1 <3 <1 <1
Vibration rectification error (12gRMS,20-2000) (°/hr/g(rms)) <1 <1 <1 <3 <1 <1
Environmental Suitability
Impact (power on) 500g, 1ms
Impact resistance (power off) 10000g, 10ms
Vibration (power on) 18g rms (20Hz to 2kHz)
Working temperature -40ºC to +85ºC
Store temperature -55ºC to +125ºC
Supply voltage 5±0.25V
Current consumption 45ma
PCB Design
The decoupling capacitors for pins VCP, VREF, VBUF, and VREG should be placed as close to the pins as possible, with minimized equivalent resistance of the traces. The other ends of the decoupling capacitors for VREF, VBUF, and VREG are connected to the nearest AVSS_LN and then to signal ground via a magnetic bead.
The decoupling capacitors for VCC and VIO must be placed close to the corresponding pins. When VCC is in normal operation, the overall current will be about 35 mA, requiring wide PCB traces to ensure voltage stability.

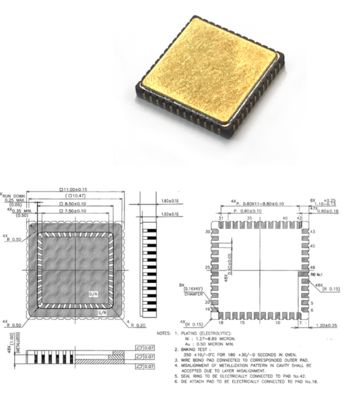

For smooth assembly, avoid routing under the package and locate components away from stress concentration areas. Avoid placement near large heat dissipation elements, external mechanical contact points, and areas prone to warping during installation.
