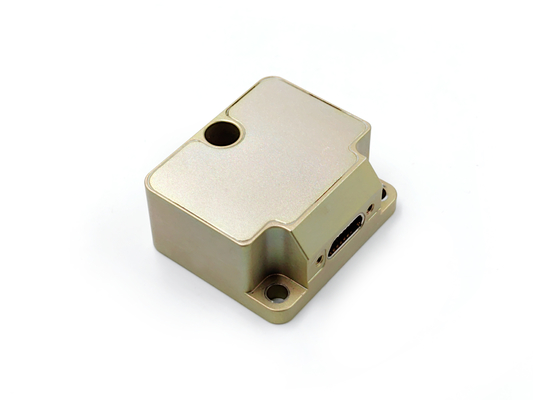

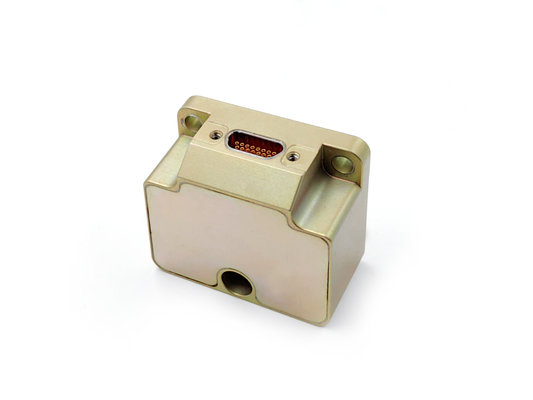

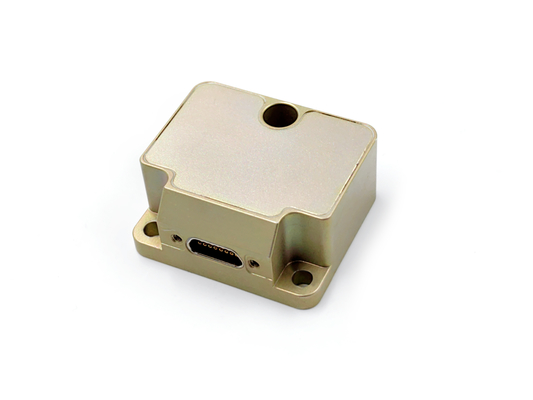

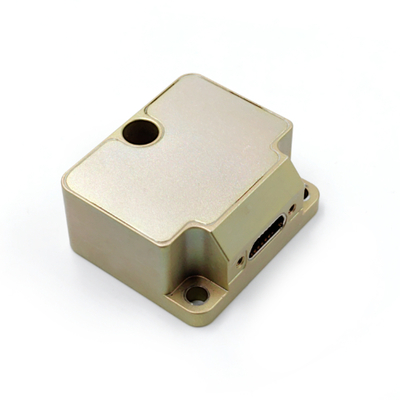

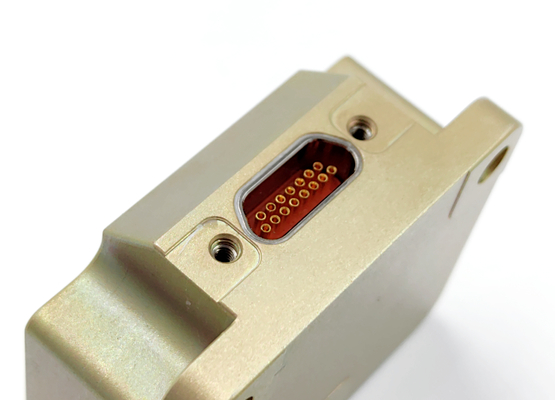

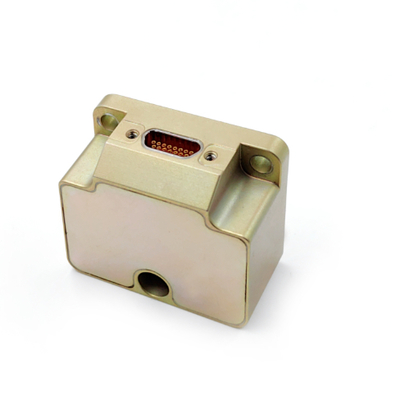

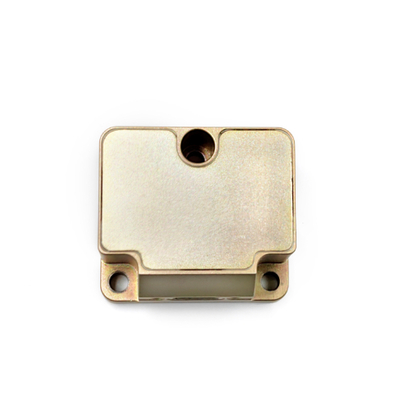

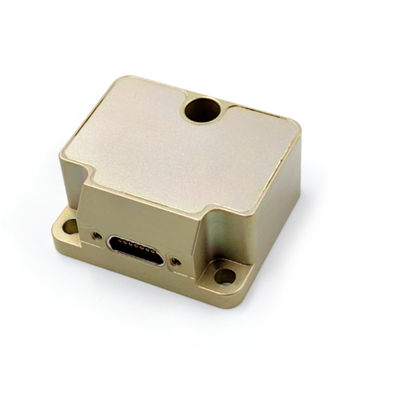

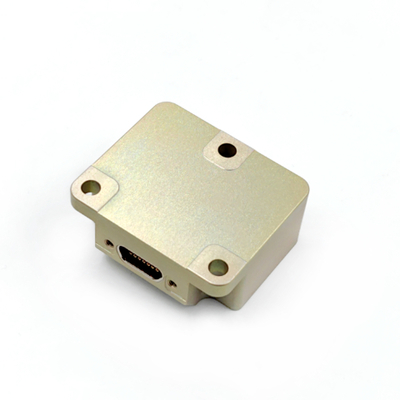

Light Weight Mems IMU Inertial Measurement Unit 400deg/s for Industry

Name: Light Weight Mems IMU Inertial Measurement Unit 400deg/s for Industry
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU6
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU6
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Range:

±400°/s

Gyro Zero Bias Stability:

0.5°/h

Acc Range:

±30g

Acc Zero Bias Stability:

0.05mg

Bandwidth:

125 Hz

Random Walk:

0.1°/√h

Interface:

RS-422

Power Supply:

Packaging Details:

Wooden Box

Supply Ability:

500/Month

Highlight:

Light Weight Mems Imu

Automotive Industry Mems Imu

400deg/s Mems IMU Inertial Measurement Unit

Product Description

Light Weight MEMS IMU Inertial Measurement Unit 400°/s for Industry

Key Specifications

Attribute	Value
Gyro Range	±400°/s
Gyro Zero Bias Stability	0.5°/h
Acc Range	±30g
Acc Zero Bias Stability	0.05mg
Bandwidth	125 Hz
Random walk	0.1°/√h
Interface	RS-422
Power Supply	5V

Product Description

The MEMS inertial measurement unit consists of:

Three-axis gyroscope
Three-axis accelerometer
Three-axis inclination angle sensor
Temperature sensor
Signal processing board
Structural components
Integrated software

This unit measures three-axis angular rate, three-axis acceleration, and three-axis inclination angle of a carrier. After error compensation (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation), it outputs gyro, loading table, and inclination data through an RS-422 serial port using a defined communication protocol.

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A
Measuring range (customizable)	°/s	±400	±400
Zero bias stability (@ Allan Variance)	°/h	1	0.5
Zero bias stability (1s smooth, 1 σ, room temperature)	°/h	10	5
Zero bias stability (10s smooth, 1 σ, room temperature)	°/h	5	1
Zero-bias error over full temperature range	°/h	20	10
Random walk	°/√h	0.2	0.1
Zero-bias repeatability	°/h	10	5
Zero bias acceleration sensitivity	°/h/g	1	1
Resolution	°/h	2	1
Scale factor nonlinearity	ppm	500
Scale factor repeatability	ppm	500
Cross coupling	%	0.1
Bandwidth	Hz	125

Accelerometer Specifications

Parameter	Unit	IMU6-1y-1	IMU6-1y-2
Measuring range (customizable)	g	±10	±30
Zero-bias stability (Allan Variance @ 25°C)	mg	0.02	0.05
Zero-bias stability (1s smoothing)	mg	0.1	0.5
Zero-bias stability (10 s smoothing)	mg	0.05	0.2
Zero-bias error over full temperature range	mg	1	3
Random walk	m/s/√h	0.001	0.002
Zero-bias repeatability	mg	0.1	0.5
Scale factor repeatability	ppm	500
Scale factor nonlinearity	ppm	500
Bandwidth	Hz	125

Dimensions
