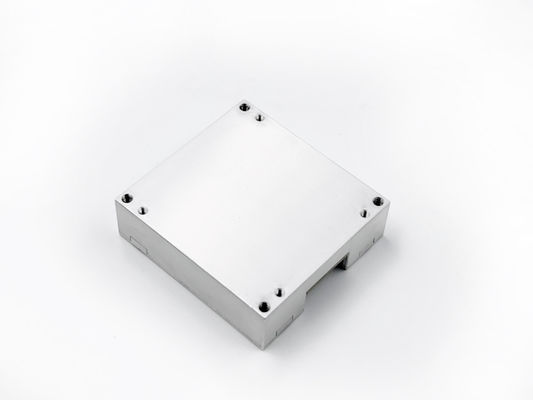

Low Power Consumption Imu Sensor for 3dB Bandwidth 200Hz Random Walk 0.15º/√h

Name: Low Power Consumption Imu Sensor for 3dB Bandwidth 200Hz Random Walk 0.15º/√h
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HB

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Range:

±500°/s

Gyro Zero Bias Stability:

0.8 °/h

Acc Range:

±16g

Acc Zero Bias Stability:

0.06mg

Bandwidth (-3dB):

200Hz

Random Walk:

0.15º/√h

Interface:

1 Channel SPI/UART/CAN

Power Consumption:

1.5W

Highlight:

KT-EX 9-2 Imu Sensor

High Accuracy Imu Sensor

330Hz Imu Sensor

Product Description

The 16488HB multi-degree-of-freedom inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope, a three-axis accelerometer, a three-axis magnetometer and a pressure sensor for measuring the three-axis angle of the carrier parameters such as rate, acceleration, three-axis magnetic field, air pressure, etc., output data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) according to the communication protocol through SPI.

Technical parameters

Parameter		Test conditions	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range		500	2000	°/s
	Zero bias stability	Allan variance, Z-axis	0.8		°/h
		Allan variance, X and Y axis	1.6		°/h
		10 s average (-40 ℃ ~ + 70 ℃, constant temperature), Z-axis	3		°/h
		10 s average (-40 ℃ ~ + 70 ℃, constant temperature), X-axis and Y-axis	6		°/h
	Zero bias	Zero-bias range, Z-axis	±0.07		°/s
		Zero-bias range, X-axis and Y-axis	±0.2		°/s
		Zero-bias change in full temperature range, Z-axis ①	±0.02		°/s
		Zero Bias Change Over Temperature, X and Y Axis ①	±0.06		°/s
		Successive Start Repeatability, Z-axis	0.002
		Successive Start Repeatability, X-Axis and Y-Axis	0.006		°/s
		Day-by-day start repeatability, Z-axis	0.003		/s
		Start repetition day by day, X axis and Y axis	0.009		°/s
		Ffect of linear acceleration on bias	0.002		°/s/g
		Influence of vibration on zero bias, change before and after vibration ②	0.002		°/s/g
		Influence of vibration on zero bias, change before and during vibration ②	0.002		°/s/g
	Scale factor	Scale factor accuracy, Z-axis	0.3		%
		Scale Factor Accuracy, X and Y Axis	0.6		%
		Scale factor nonlinearity, Z-axis	0.01		%FS
		Scale Factor Nonlinearity, X and Y Axis	0.02		%FS
	Angular random walk		0.15		°/ √hr
	Noise density		0.001		°/s/ √Hz
	Resolution		3.052*10-7		/s/LSB
	Bandwidth		200		Hz
Accelerometer	Dynamic measuring range		16	200	g
	Zero bias stability	Allan variance	0.06		mg
	Zero bias stability	10 s average (-40 ℃ ~ + 70 ℃, constant temperature)	0.4		mg
	Zero bias	Zero bias range	2		mg
		Change of zero bias within the whole temperature range, peak-to-peak value ①	4		mg
		Repeatability of successive starts	0.5		mg
		Repeatability is initiated on a daily basis	0.8		mg
		Zero-bias temperature coefficient	0.05	0.1	mg/℃

Dimension

Low Power Consumption Imu Sensor for 3dB Bandwidth 200Hz Random Walk 0.15º/√h 0

Payment& Shipping

Low Power Consumption Imu Sensor for 3dB Bandwidth 200Hz Random Walk 0.15º/√h 1

Low Power Consumption Imu Sensor for 3dB Bandwidth 200Hz Random Walk 0.15º/√h 2

Low Power Consumption Imu Sensor for 3dB Bandwidth 200Hz Random Walk 0.15º/√h 3
