Home Products

IMU Accelerometer Gyro

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h

Name: Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Range:

±500°/s

Gyro Zero Bias Stability:

0.3°/h

Acc Range:

±20g

Acc Zero Bias Stability:

2ug

Random Walk:

0.15°/√h

Communication Interface:

1 Channel SPI

Bandwidth:

250Hz

Weight:

50g

Packaging Details:

Sponge/Box

Supply Ability:

500/Month

Highlight:

Aerospace Inertial Navigation Sensor

Mems Inertial Navigation Sensor

Product Description

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h

Product Description

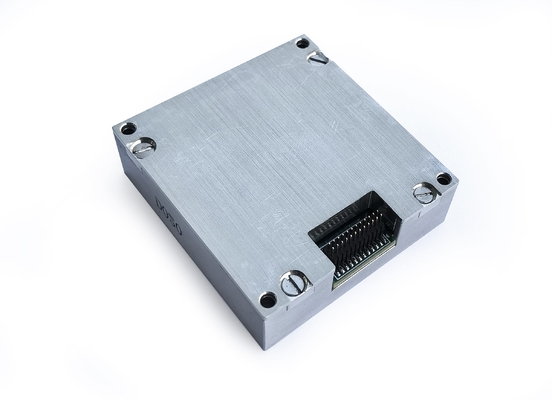

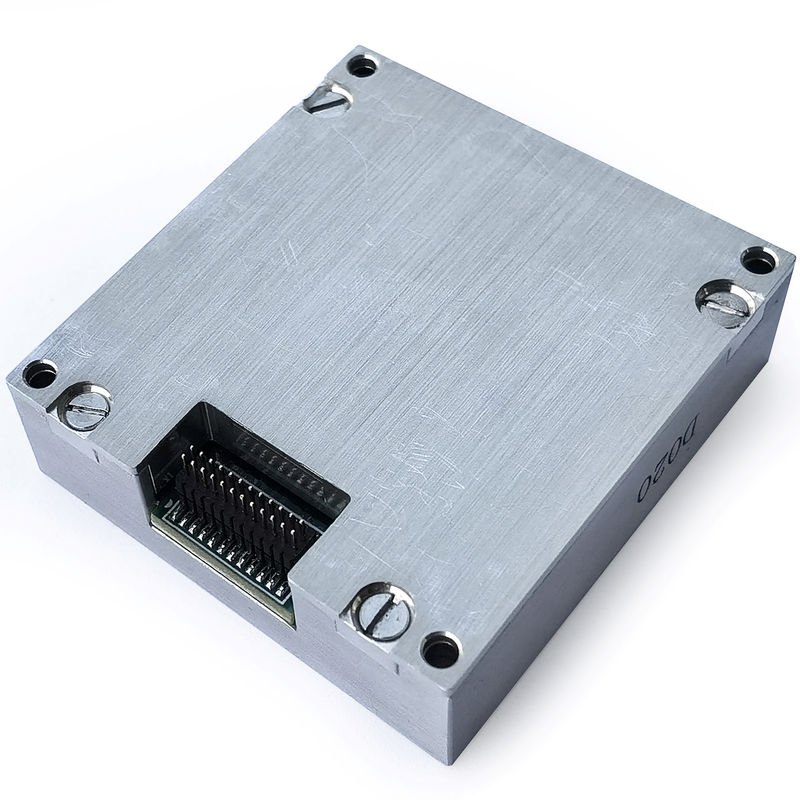

The 16488HA inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.

Main Parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyro	Dynamic measuring range			±500		º/s
	Bias instability	Allan variance, better than		0.3		º/h
	Bias stability	1s smooth, RMS, better than		10		º/h
	Bias in full temperature range	-40 ºC ~ 85 ºC, 10 s smoothing, RMS		0.005		º/s
	Random walk	1б		0.15		º/√h
	Bias repeatability	1б		10		º/h
	Output noise	No filtering, RMS		0.05		º/s
	Scale factor repeatability	1б		0.01		%
	Scale factor nonlinearity	1б		0.01		%
	Scale factor	FS=450 º/s, 32bits		2621440		LSB/°/sec
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
	Acceleration sensitivity			1		°/h/g
	Vibration rectification effect			0.5		°/h/g2
	Resonant frequency			12k		Hz
Accelerometer	Dynamic measuring range			±20		g
	Bias stability	Allan variance		2		ug
	Bias in full temperature range	-40 ºC ~ 85 ºC, 10 s smoothing, RMS		1		mg
	Random walk	1б		0.029		m/s/√h
	Bias repeatability	1б		5		mg
	Output noise	No filtering, RMS		0.5		mg
	Scale factor repeatability	1б		0.1		%
	Scale factor nonlinearity	FS=20g		0.1		%FS
	Scale factor	±20, 32bits		65536000		g/LSB
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
Temperature	Scale factor			0.0125		°C/LSB
Communication interface	1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics	Voltage	Direct current		3.3 ± 10%		V
	Power consumption			1	1.5	W
	Ripple	P-P		48±2	100	mV
Use environment	Operating temperature	Scalable	-40		85	ºC
	Storage temperature		-55		85	ºC
	Vibration			10~2000Hz,6.06g
	Impact			1000g,0.1ms

Outline drawing

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h 0

Production Environment

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h 1

Packing& Shipping

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h 2

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h 3

Mems Inertial Measurement Unit Sensor Random Walk 0.15°/√h 4
