Name: 30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor for Inertial Navigation
Brand: Firepower
SKU: IMU103
Rating: 4.7 (175 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Gyro Range: ±500°/s

Gyro Zero Bias Stability: 1°/h

Acc Range: ±16g

Accelerometer Bias Stability: 0.07mg (ALLAN)

Communication Interface: 1-channel SPI/UART/CAN

Bandwidth: 150Hz

Weight: ≤40g

Dimension: 30mm*30mm*16mm

Highlight:

30mm30mm16mm IMU Sensor

MEMS Inertial Measurement Unit Sensor

Inertial Navigation IMU Sensor

Basic Infomation

Place of Origin: CHINA

Brand Name: Firepower

Certification: CE

Model Number: IMU103

Payment & Shipping Terms

Packaging Details: Sponge/Box

Delivery Time: 1 week for sample

Payment Terms: L/C, T/T

Supply Ability: 500/Month

Gallery

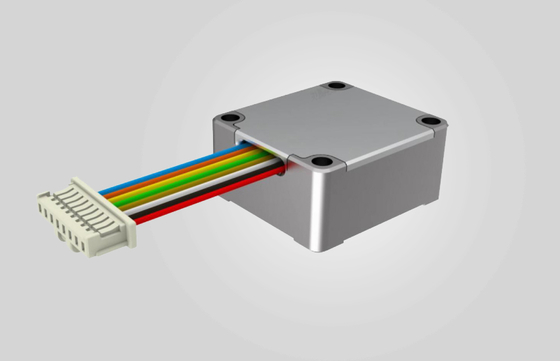

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor for Inertial Navigation

Product Description

Low Cost Mems Inertial Measurement Unit Imu Sensor for Inertial Navigation

Product Description

IMU has high reliability and strong environmental adaptability. By matching different software, the product can be widely used in intelligent driving, tactical and industrial UAV, intelligent ammunition, seeker, mobile communication, mapping, stable platform and other fields.

1. Three-axis digital gyroscope:

①± 500º/s dynamic measuring range;
②. Zero-bias stability: 1 °/h

2. Triaxial digital accelerometer:

① ± 16 g dynamic measuring range;
② Zero-bias stability: 0.07mg (ALLAN);
3. High reliability: MTBF > 20000h;
4. Guaranteed accuracy within the full temperature range (-40 ºC ~ 70 ºC):

built-in high-performance temperature calibration and compensation algorithm;
5. Suitable for working under strong vibration conditions;
6. Interface 1 channel UART, 1 channel SPI, 1 channel CAN.

Technical parameters

Model		IMU115	IMU103	IMU109
Axis No.		6axis	6axis	6axis
Gyro	Range / º/s	*±250 /±500	±500	*±250 /±500
	Bias instability /Allan,º/h	≤8.0	≤1	≤3.5~4.5
	Bias stability in full temp. /10s/ º/h	≤13	≤2.5	≤6.0~8.0
	Bias range / º/s	±0.15	±0.03	±0.1
	Bias change in full temp. / º/s	±0.08	±0.01	±0.1
	Scale factor accuracy / %	0.2	0.15	0.15
	Scale factor nonlinearity /%FS	0.02	0.005	0.015
	Bandwidth /Hz	150	150	150
Acc.	Range / g	*4 / 16	16	*4 / 16
	Bias stability /Allan / mg	0.065	0.02	0.055
	Bias stability in full temp. /10s/ mg	0.12	0.035	0.12
	Bias range / mg	±3	±0.75	±1.5
	Bias change in full temp. /10s/ mg	±3	±1	±1.5
	Scale factor accuracy / %	0.3	0.2	0.3
	Scale factor nonlinearity / %FS	0.03	0.03	0.03
	Bandwidth /Hz	150	150	150
Interface	1-way UART / Kbps	Baud rate(115.2~460.8)
	Sampling frequency / Hz	UART (100~1000)
Electrical	Voltage / V	4.5~5.5
	Power consumption / W	≤0.35
Environment	Working temperature / ºC	-40 ~ 85ºC
	Vibration / Hz/g	20~2000Hz,3g
	Impact	1000g,0.5ms

Detail Photo

Payment & Shipping

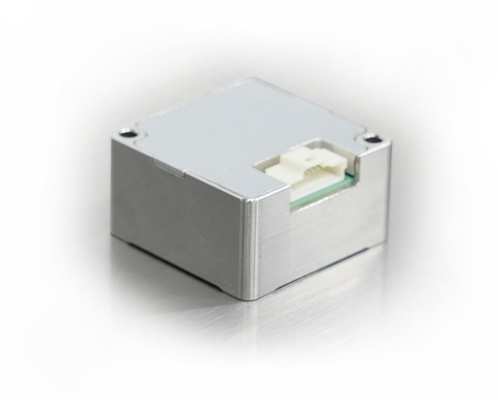

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor for Inertial Navigation 2

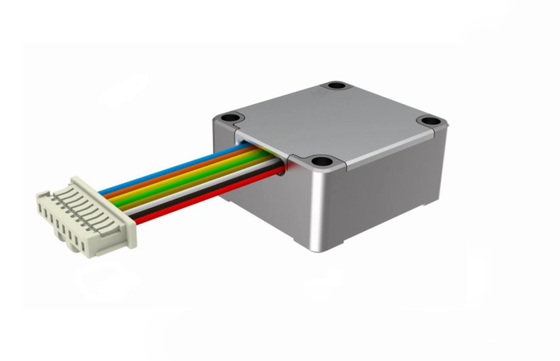

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor for Inertial Navigation 3

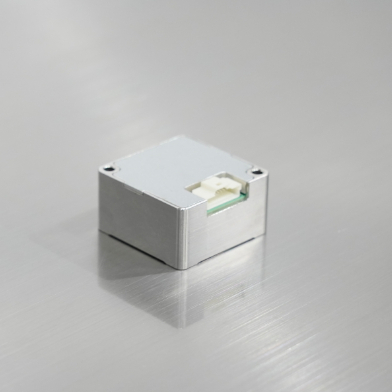

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor for Inertial Navigation 4
