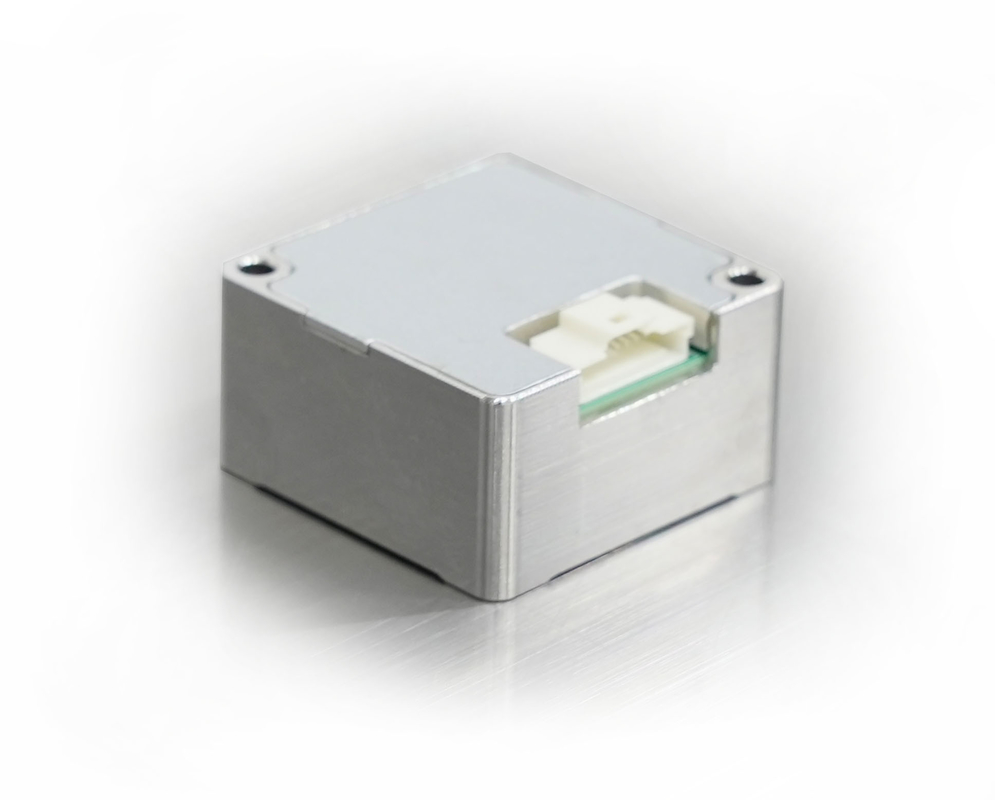

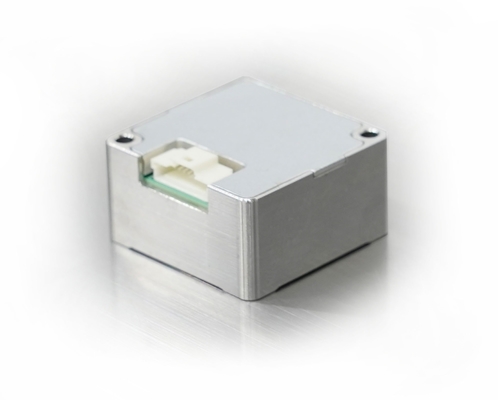

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor

Brand Name: Firepower
Model Number: IMU103
MOQ: 1
Price: negotiable
Payment Terms: L/C,T/T
Supply Ability: 500/Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Gyro Range:
±500°/s
Gyro Zero Bias Stability:
1°/h
Acc Range:
±16g
Accelerometer Bias Stability:
0.07mg (ALLAN)
Communication Interface:
1-channel SPI/UART/CAN
Bandwidth:
150Hz
Weight:
≤40g
Dimension:
30mm*30mm*16mm
Packaging Details:
Sponge/Box
Supply Ability:
500/Month
Highlight:

30mm*30mm*16mm IMU Sensor

,

MEMS Inertial Measurement Unit Sensor

,

Inertial Navigation IMU Sensor

Product Description

Low Cost Mems Inertial Measurement Unit Imu Sensor


Product Description


1. Three-axis digital gyroscope:
①± 500º/s dynamic measuring range;
②. Zero-bias stability: 1 °/h
2. Triaxial digital accelerometer:
① ± 16 g dynamic measuring range;
② Zero-bias stability: 0.07mg (ALLAN);
3. High reliability: MTBF > 20000h;
4. Guaranteed accuracy within the full temperature range (-40 ºC ~ 70 ºC):
built-in high-performance temperature calibration and compensation algorithm;
5. Suitable for working under strong vibration conditions;
6. Interface 1 channel UART, 1 channel SPI, 1 channel CAN.



Technical parameters

Model
IMU115
IMU103
 IMU109
Axis No.

6axis
6axis

 6axis







Gyro
Range / º/s
*±250 /±500
±500

 *±250 /±500
Bias instability /Allan,º/h
≤8.0
≤1

 ≤3.5~4.5
Bias stability in full temp. /10s/ º/h
≤13
≤2.5

 ≤6.0~8.0
Bias range / º/s
±0.15
±0.03
±0.1
Bias change in full temp. / º/s
±0.08
±0.01
±0.1
Scale factor accuracy / %
0.2
0.15
0.15
Scale factor nonlinearity /%FS
0.02
0.005
0.015
Bandwidth /Hz
150
150
150






Acc.
Range / g
*4 / 16
16
*4 / 16
Bias stability /Allan / mg
0.065
0.02
0.055
Bias stability in full temp. /10s/ mg
0.12
0.035
0.12
Bias range / mg
±3
±0.75
±1.5
Bias change in full temp. /10s/ mg
±3
±1
±1.5
Scale factor accuracy / %
0.3
0.2
0.3
Scale factor nonlinearity / %FS
0.03
0.03
0.03
Bandwidth /Hz
150
150
150
Interface
1-way UART / Kbps
Baud rate(115.2~460.8)
Sampling frequency / Hz
UART (100~1000)
Electrical
Voltage / V
4.5~5.5
Power consumption / W
≤0.35
Environment
Working temperature / ºC
-40 ~ 85ºC
Vibration / Hz/g
20~2000Hz,3g
Impact
1000g,0.5ms

Detail Photo

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor 0
30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor 1

Payment & Shipping



30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor 2

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor 3

30mm*30mm*16mm MEMS Inertial Measurement Unit IMU Sensor 4
