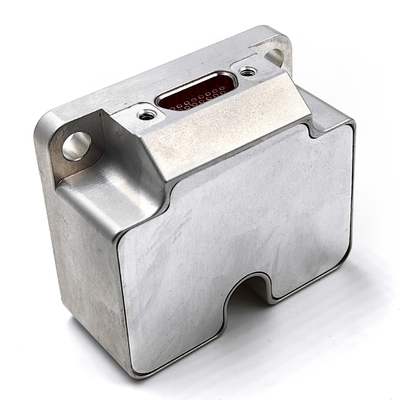

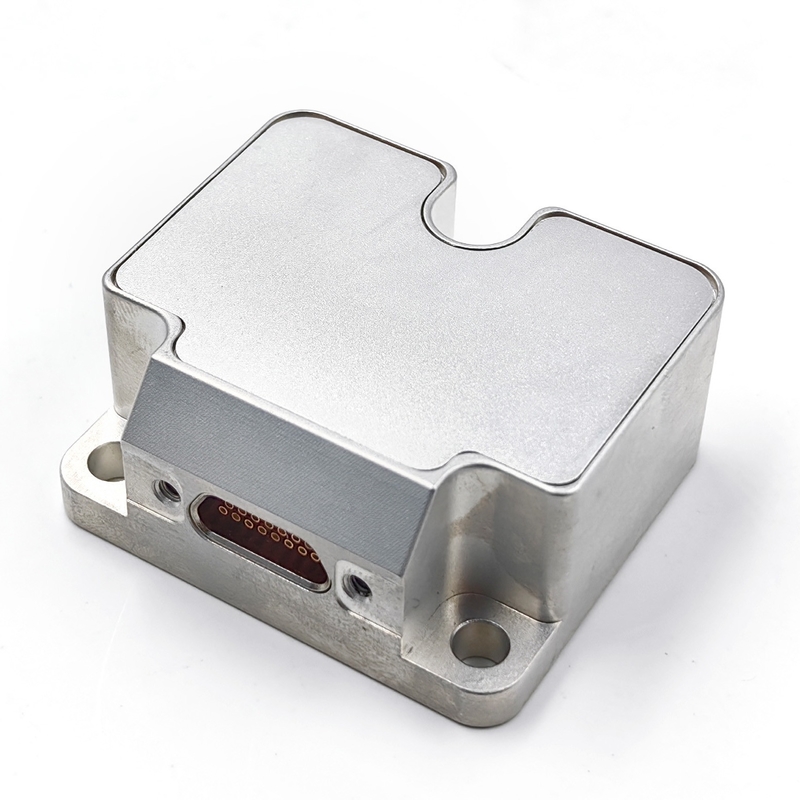

Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise

Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low noise

Brand Name:	FIREPOWER
Model Number:	IMU6
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Gyro Range:

±400°/s

Gyro Zero Bias Stability:

≤0.5°/h

Acc Range:

30g

Scale Factor Nonlinearity:

0.02mg

Power Supply:

Bandwidth:

125Hz

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

IMU Inertial Measurement Unit Sensor

Tactical Grade IMU Sensor

STIM300 Replacement IMU

Product Description

Industrial Grade IMU Inertial Measurement Unit Sensor STIM300 Replacement Low Noise

Key Specifications

Attribute	Value
Gyro Range	±400°/s
Gyro zero bias stability	≤0.5°/h
Acc Range	30g
Scale factor nonlinearity	0.02mg
Power Supply	5V
Bandwidth	125Hz

Product Overview

The MEMS inertial measurement unit integrates a three-axis gyroscope, three-axis accelerometer, three-axis inclinometer, temperature sensor, signal processing board, and supporting software. This comprehensive system measures three-axis angular rate, acceleration, and inclination angle of a carrier, delivering compensated data (including temperature compensation, installation misalignment compensation, and nonlinear compensation) through an RS-422 serial port using standardized communication protocols.

Technical Parameters

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A
Measuring range (customizable)	°/s	±400	±400
Zero bias stability (@ Allan Variance)	°/h	1	0.5
Zero bias stability (1s smooth, 1σ, room temperature)	°/h	10	5
Zero bias stability (10s smooth, 1σ, room temperature)	°/h	5	1
Zero-bias error over full temperature range	°/h	20	10
Random walk	°/√h	0.2	0.1
Zero-bias repeatability	°/h	10	5
Zero bias acceleration sensitivity	°/h/g	1	1
Resolution	°/h	2	1
Scale factor nonlinearity	ppm	500
Scale factor repeatability	ppm	500
Cross coupling	%	0.1
Bandwidth	Hz	125

Accelerometer Specifications

Parameter	Unit	IMU6-1y-1	IMU6-1y-2
Measuring range (customizable)	g	±10	±30
Zero-bias stability (Allan Variance @ 25 ºC)	mg	0.02	0.05
Zero-bias stability (1s smoothing)	mg	0.1	0.5
Zero-bias stability (10 s smoothing)	mg	0.05	0.2
Zero-bias error over full temperature range	mg	1	3
Random walk	m/s/√h	0.001	0.002
Zero-bias repeatability	mg	0.1	0.5
Scale factor repeatability	ppm	500
Scale factor nonlinearity	ppm	500
Bandwidth	Hz	125
