Full Compensation Honeywell HG4930 MEMS IMU Angular Rate & Acceleration Measurement

Brand Name:	Firepower
Model Number:	HG4930C
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	100/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±200°/s

Zero-bias Stability:

0.2°/h

Zero-bias Stability (10 S Smoothing, 1σ, Room Temperature):

0.5°/h

Random Walk:

0.02°/√h

Packaging Details:

Wooden box

Supply Ability:

100/Month

Highlight:

Tactical Grade GNSS Inertial Navigation System

High Accuracy GNSS Inertial Navigation System

Vessel Tracking GNSS Inertial Navigation System

Product Description

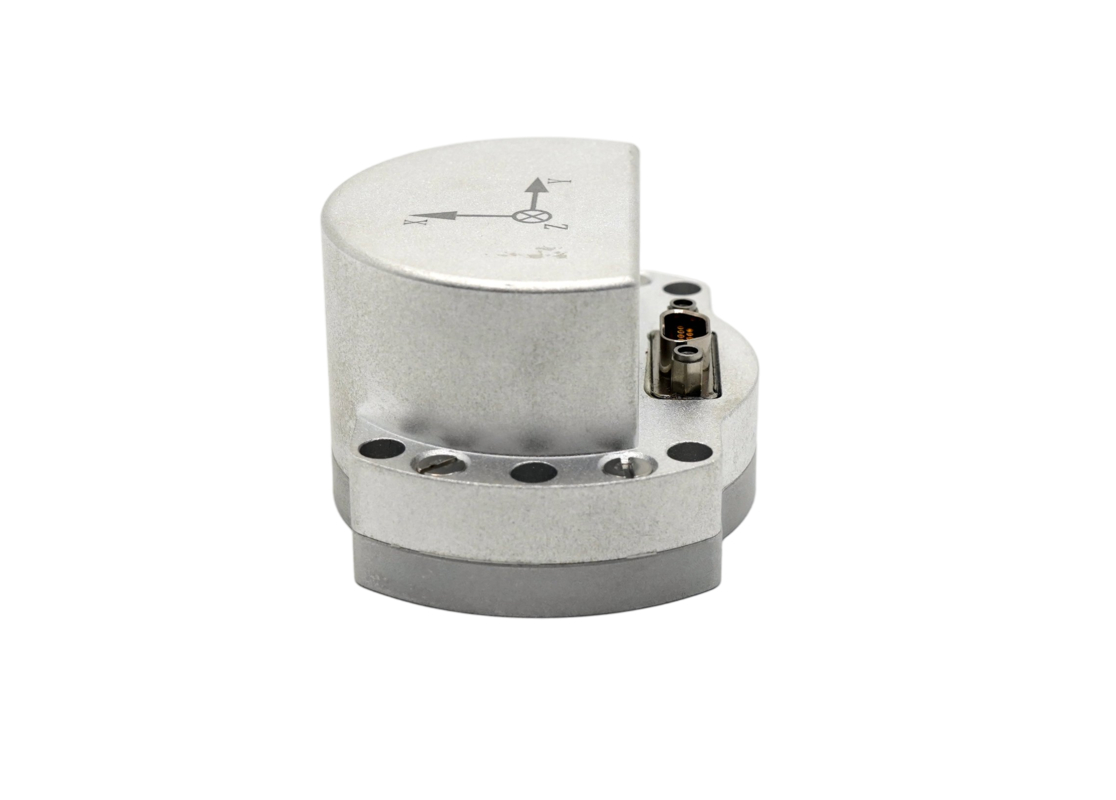

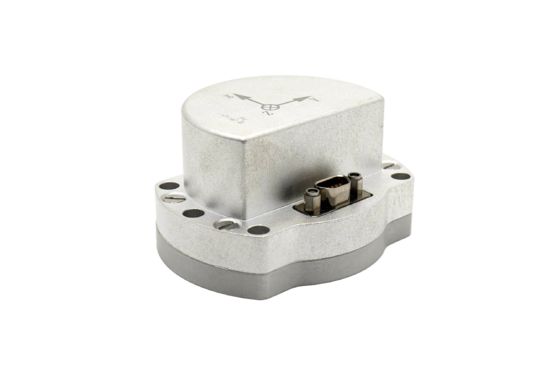

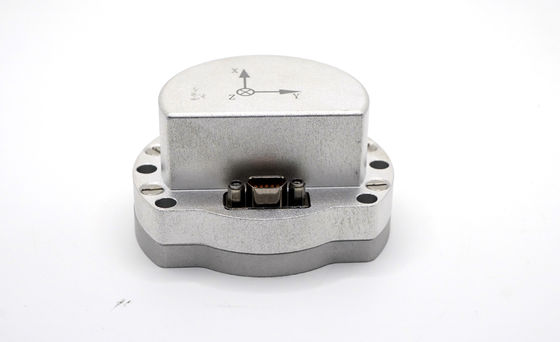

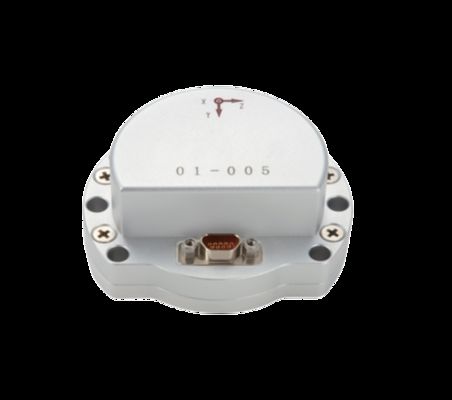

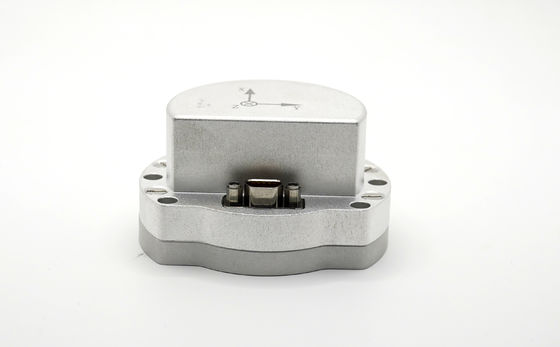

Full Compensation Honeywell HG4930 MEMS IMU Angular Rate & Acceleration Measurement

HG4930 MEMS Inertial Measurement Unit - Advanced 6-axis MEMS IMU with gyroscope ±200°/s, 0.5°/h stability and accelerometer ±30 g, 1.5 mg bias. Provides accurate, compensated angular rate, acceleration, and inclination data for autonomous vehicles, UAVs, robotics, aerospace, marine, and industrial use. RS-422 interface ensures seamless integration for navigation, stabilization, and motion control.

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Indicators

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
