products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
IMU Accelerometer Gyro
Created with Pixso.

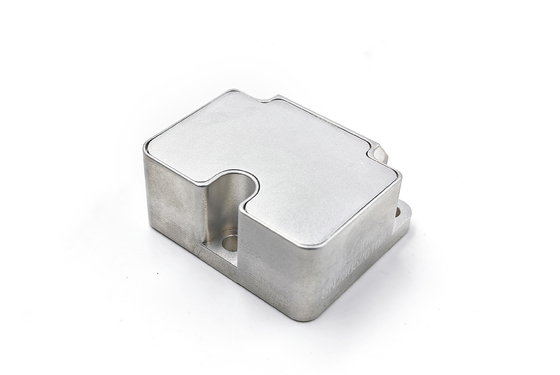

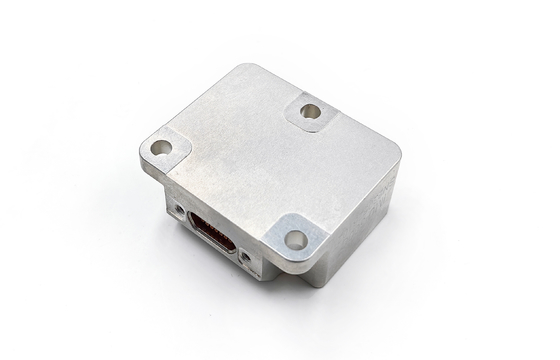

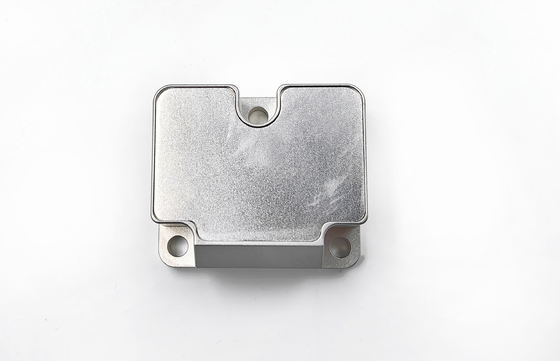

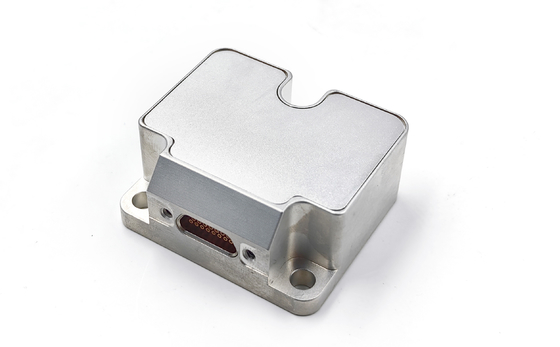

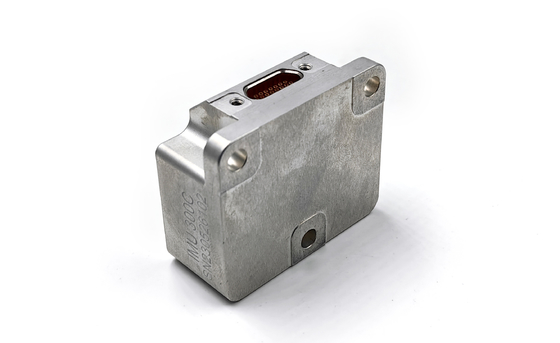

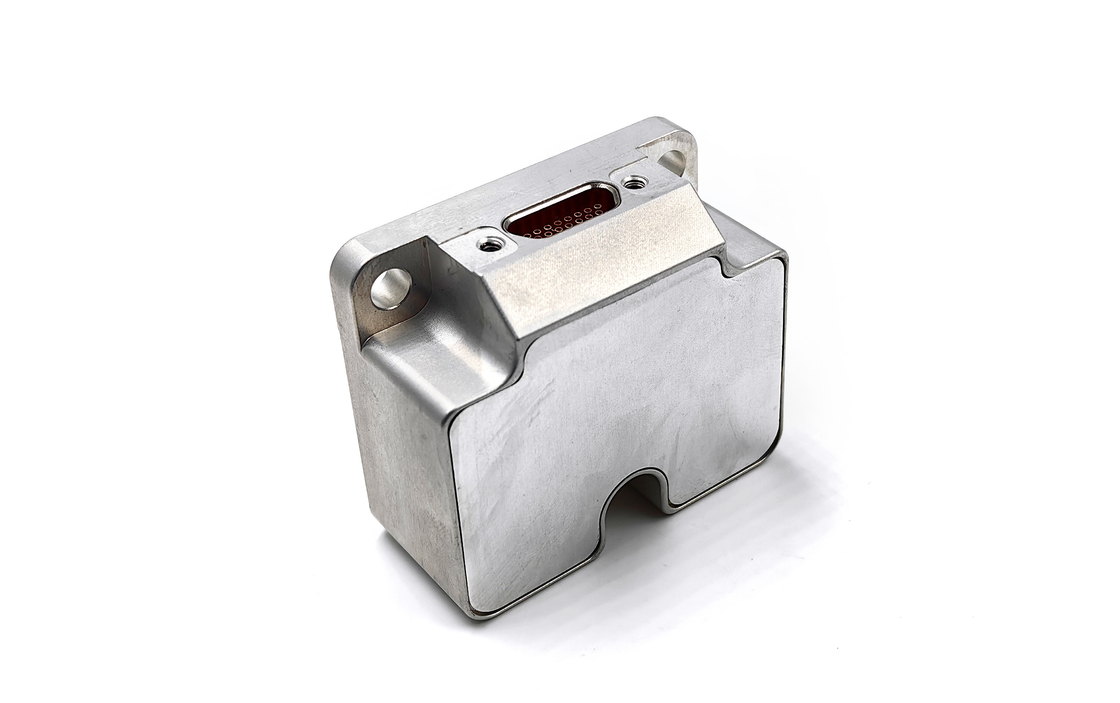

Tactical Grade Inertial Measurement Unit with Built-in 3 Axis Accelerometer and Gyroscope

Name

Tactical Grade Inertial Measurement Unit with Built-in 3 Axis Accelerometer and Gyroscope

Brand Name: Firepower
Model Number: IMU6-1
MOQ: 1
Price: 3000$
Payment Terms: L/C,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
±400°/s
In-Run Bias Stability:
0.3°/h
Angular Random Walk:
0.15°/√h
Bias Repeatability (1σ ):
1°/h
Scale Factor Non-Linearity(1σ ):
150ppm
Accelerometer Range:
±10g
Accelerometer In-Run Bias Stability:
0.02mg
Weight:
55±5g
Packaging Details:
sponge+box
Supply Ability:
500/month
Highlight:

Gyroscope Inertial Measurement Unit

,

3 Axis Accelerometer Inertial Measurement Unit

,

Tactical Grade Inertial Measurement Unit

Product Description

Product Description


The IMU6 inertial measurement unit consists of three-axis gyroscope, three-axis accelerometer,  three-axis tilt angle (without this sensor by default), temperature sensor, signal processing board, structure and necessary software, and is used to measure the three-axis angular rate, the three-axis acceleration and the three-axis tilt angle of the carrier. And output the gyro, accelerometer and the inclination data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation and etc) through RS-422 serial port according to an agreed communication protocol.


Product Parameters


Gyroscope Technical Index

Parameter Unit IMU6-1 IMU6-1A IMU6-1B IMU6-1C
Measuring range (customizable) °/s ±400 ±400 ±400 ±2000
In-Run Bias Stability(@ Allan variance)
 		 °/h 0.3 0.1 0. 05 1
Bias stability @10s
(10s smooth, 1σ, room temperature)		 °/h 3 1 0.5 6
Bias stability in full temperature °/h 10 3 2 18
Angular Random Walk °/√h 0.15 0.1 0.02 0.3
Bias repeatability
(1σ )		 °/h 1 0.5 0.3 2
Bias acceleration sensitivity °/h/g 1 1 1 2
Scale Factor Non-Linearity(1σ ) ppm 150 150 150 300
Scale Factor Repeatability (1σ ) ppm 20 20 20 100
Misalignment ° ±0.05 ±0.05 ±0.05 ±0.05
3 dB Bandwidth Hz 250 200 150 250


 Accelerometer Technical Index

Parameter Unit IMU6-1y-1 IMU6-1y-2 IMU6-1y-3 IMU6-1y-4
Measuring range (customizable) g ±10 ±30 ±50 ±80
In-Run Bias Stability (Allan Variance @ 25 ºC) mg 0.02 0.05 0.1 0.2
Bias stability @10s mg 0.05 0.2 0.5 1
Bias stability in full temperature mg 1 3 5 15
Angular Random Walk m/s/√h 0.001 0.002 0.005 0.01
Bias repeatability(1σ ) mg 0.1 0.5 1 2
Scale Factor Repeatability (1σ ) ppm 200 200 200 200
Scale Factor Non-Linearity(1σ ) ppm 50 100 200 300
Misalignment ° ±0.05 ±0.05 ±0.05 ±0.05
3 dB Bandwidth Hz 100 100 100 100


Inclination Technical Index

Parameter Unit IMU6-1y-x
Measuring range g ±1.7
Zero-bias stability (1s smoothing) mg 0.5
Scale factor nonlinearity ppm 500


 Electrical characteristics

Parameter Unit IMU6-1y
Voltage V +5±0.5
Starting current mA <400
Steady-state power consumption W <1.2
Ripple mV 100


 Environmental adaptability


Parameter Unit IMU6-1y-x
Operating temperature ºC -45~85
Storage temperature ºC -55~105


 Others

Parameter Unit IMU6-1y-x
Weight g 55±5
Start time s 1


Outline Drawing

Tactical Grade Inertial Measurement Unit with Built-in 3 Axis Accelerometer and Gyroscope 0

Tactical Grade Inertial Measurement Unit with Built-in 3 Axis Accelerometer and Gyroscope 1
