Quartz Flexure Accelerometer

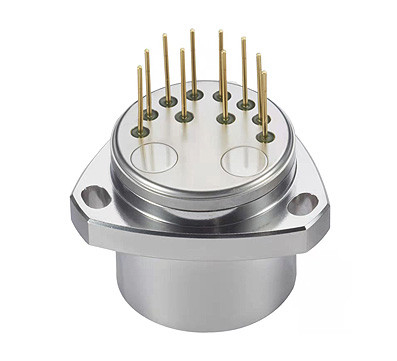

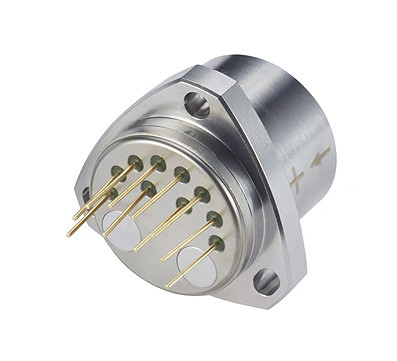

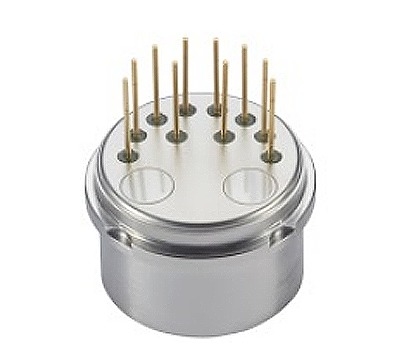

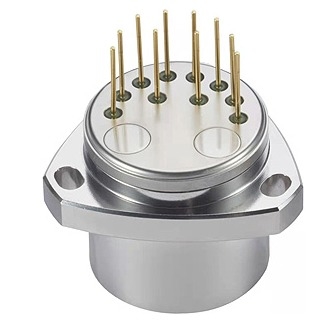

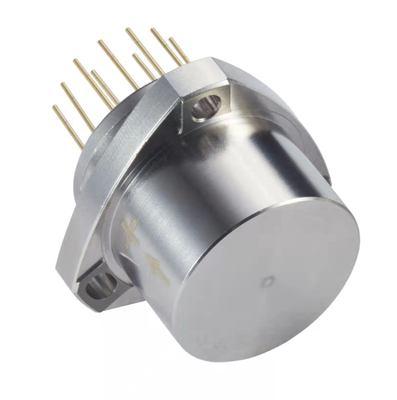

Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling

Name: Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: ACC1-01
Price: 1600 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	ACC1-01
MOQ:	1
Price:	1600$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±50/60/70g

Threshold Value:

5μg

Bias K0/K1:

≤±3mg

Scale Factor K1:

1.0~1.30 Ma/G

Class II Nonlinear Coefficient K2:

≤±10μg /G2

Bias Comprehensive Repeatability σ:

≤10 μg

Scale Factor Comprehensive Repeatability:

≤10ppm

Noise (840 Ω Sampling Resistor):

≤5mv

Bandwidth:

800~2500 Hz

Size:

Ф25.4X30mm

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

Vibration Sensor Quartz Flexure Accelerometer

Navigation Grade Quartz Flexure Accelerometer

Oil Drilling Quartz Flexure Accelerometer

Product Description

Navigation Grade Quartz Flexure Accelerometer Vibration Sensor for Oil Drilling

Product Specifications

Attribute	Value
Measuring Range	±50/60/70g
Threshold Value	5μg
Bias K0/K1	≤±3mg
Scale Factor K1	1.0~1.30 Ma/G
Class II Nonlinear Coefficient K2	≤±10μg /G2
Bias Comprehensive Repeatability σ	≤10 μg
Scale Factor Comprehensive Repeatability	≤10ppm
Noise (840 Ω Sampling Resistor)	≤5mv
Bandwidth	800~2500 Hz
Size	Ф25.4X30mm

Product Description

The ACC1 series vibration acceleration sensor is a high-precision accelerometer featuring exceptional long-term stability, repeatability, start-up performance, environmental adaptability, and reliability. Suitable for both static and dynamic testing applications, it serves as a standard vibration and tilt sensor.

The product's output current maintains a linear relationship with force or acceleration. Users can select appropriate sampling resistance through calculation to achieve high-precision output. An integrated temperature sensor enables bias and scale factor compensation, reducing the impact of ambient temperature variations as required.

Technical Parameters

Serial number	Parameter	ACC1-01	ACC1-02	ACC1-03
1	Range	±50g,±60g,±70g	±50g,±60g,±70g	±50g,±60g,±70g
2	Threshold	5μg	5μg	5μg
3	Bias K0/K1	≤±3mg	≤±3mg	≤±5 mg
4	Scale factor K1	1.0~1.30 mA/g	1.0~1.30 mA/g	1.0~1.30 mA/g
5	Class II nonlinear coefficient K2	≤±10μg /g2	≤±15μg /g2	≤±20μg /g2
6	0 g 4 hour short term stability	≤10 μg	≤10μg	≤10 μg
7	1g 4-hour short-term stability	≤10 ppm	≤10 ppm	≤10 ppm
8	Bias comprehensive repeatability σK0 (1σ, 1 month)	≤10 μg	≤15μg	≤25 μg
9	Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month)	≤10ppm	≤20 ppm	≤30 ppm
10	Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month)	≤±10 μg /g2	≤±15 μg /g2	≤±20 μg /g2
11	Bias temperature coefficient (full temperature average)	≤±10 μg /℃	≤±20 μg /℃	≤±30 μg /℃
12	Scale Factor Temperature Coefficient (Averaged Over Temperature)	≤±10 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
13	Noise (840 Ω sampling resistor)	≤5mv	≤8.4mv	≤8.4mv
14	Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
15	Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
16	Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
17	Impact	100g,8ms,1/2sin	100g,8ms,1/2sin	100g,8ms,1/2sin
18	Operating temperature range	-55~+85℃	-55~+85℃	-55~+85℃
19	Storage temperature range	-60~+120℃	-60~+120℃	-60~+120℃
20	Power supply	±12~±15V	±12~±15V	±12~±15V
21	Current consumption	≤±20mA	≤±20mA	≤±20mA
22	Temperature sensor	Option	Option	Option
23	Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
24	Weight	≤80g	≤80g	≤80g

Outline Drawing
