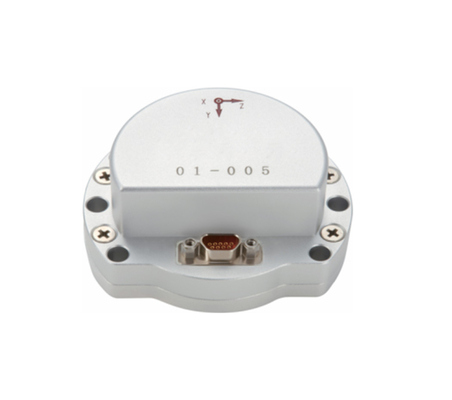

100ppm Scale Factor Nonlinearity 6-Axis MEMS Inertial Measurement Unit Sensor Hg4930 Honeywell Replacement for Industrial

Brand Name:	FIREPOWER
Model Number:	HG4930C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Range:

±200°/s

Zero-bias Stability (@ Allan Variance):

≤0.2 °/h

Zero-bias Stability (10 S Smoothing, 1σ, Room Temperature):

≤0.5 °/h

Angular Random Walk:

≤0.02 °/h

Scale Factor Nonlinearity:

100ppm

Acc Range:

±30g

Acc Zero-bias Stability (Allan Variance @ 25 ℃):

30ug

Zero-bias Error Over Full Temperature Range:

1.5mg

Zero-bias Repeatability:

2mg

Bandwidth:

100Hz

Highlight:

6-Axis MEMS Inertial Measurement Unit

100ppm MEMS Inertial Measurement Unit

Product Description

6 Axis Mems Inertial Measurement Unit Sensor Hg4930 Honeywell Replacement

Product Description

The MEMS Inertial Measurement Unit (IMU) consists of three-axis gyroscope, three-axis accelerometer, temperature sensor, signal processing board, structure and necessary software, and is used for measuring the three-axis angular rate, three-axis acceleration and three-axis inclination angle of a carrier. And output the data of the gyroscope and the accelerometer after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation and etc) through RS-422 serial port according to an agreed communication protocol.

Product Parameter
- Gyroscope specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer indicators

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100

Electrical characteristics

Parameter	Unit	HG4930C
Voltage	V	5
Power consumption	W	1.5
Ripple	mV	100

Environmental adaptability

Parameter	Unit	HG4930C
Operating temperature	℃	-45~85
Storage temperature	℃	-60~105
Vibration	--	10~2000Hz,6.06g
Impact	--	15000g,4ms

Outline Drawing

100ppm Scale Factor Nonlinearity 6-Axis MEMS Inertial Measurement Unit Sensor Hg4930 Honeywell Replacement for Industrial 0
