Adis16488 Replacement Sensors Mems Inertial Measurement Unit Sensor Imu Accelerometer Gyro

Name: Adis16488 Replacement Sensors Mems Inertial Measurement Unit Sensor Imu Accelerometer Gyro
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 3,003.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488HA

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Dynamic Measuring Range:

±450°/s

Zero-bias Stability (@ Allan Variance):

≤0.3 °/h

Zero Bias Stability(10s Smooth):

≤3°/h

Angular Random Walk:

≤0.15 °/h

Scale Factor Nonlinearity:

100ppm

Acc Range:

±20g

Acc Zero-bias Stability (Allan Variance @ 25 ℃):

0.07mg

Zero-bias Error Over Full Temperature Range:

1.5mg

Communication Interface:

1-way SPI

Voltage:

3.3V

Highlight:

Mems Inertial Measurement Unit Sensor

Imu Accelerometer Gyro

Replacement Sensors Mems

Product Description

ADIS16488 Replacement Sensors MEMS Inertial Measurement Unit (IMU) Accelerometer Gyro

Key Specifications

Attribute	Value
Gyro Dynamic measuring range	±450°/s
Zero-bias stability (@ Allan variance)	≤0.3 °/h
Zero bias stability (10s smooth)	≤3°/h
Angular random walk	≤0.15 °/h
Scale factor nonlinearity	100ppm
Acc range	±20g
Acc Zero-bias stability (Allan Variance @ 25 ℃)	0.07mg
Zero-bias error over full temperature range	1.5mg
Communication Interface	1-way SPI
Voltage	3.3V

Product Overview

The ADIS16488HA inertial measurement unit is a complete inertial system featuring a built-in three-axis gyroscope and three-axis accelerometer. This high-performance IMU measures three-axis angular rate, acceleration, and other critical parameters of the carrier. The unit outputs error-compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through SPI according to the communication protocol.

Detailed Technical Parameters

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope Specifications
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer Specifications
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical Characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use Environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

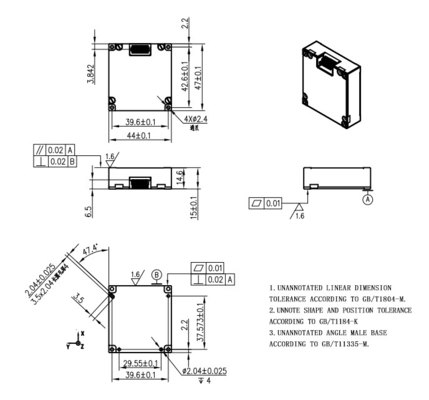

Outline Drawing
