Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking

Name: Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 1000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	1000$
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Gyroscope Range:

±450º/s

Zero-bias Instability:

0.3º/h

Zero Bias Stability:

3º/h

Random Walk:

0.029m/s/√h

Communication Interface:

1-way SPI

Accelerometer Range:

±20 G

Acc Zero Bias Stability:

0.07 Mg

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Gyroscope Rate Turntable

Three Axis Rate Turntable

MEMS Sensor testing Rate Turntable

Product Description

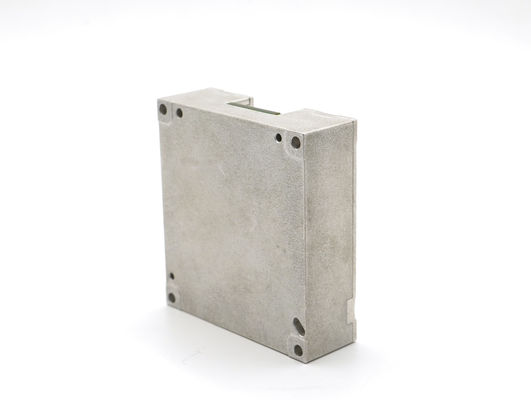

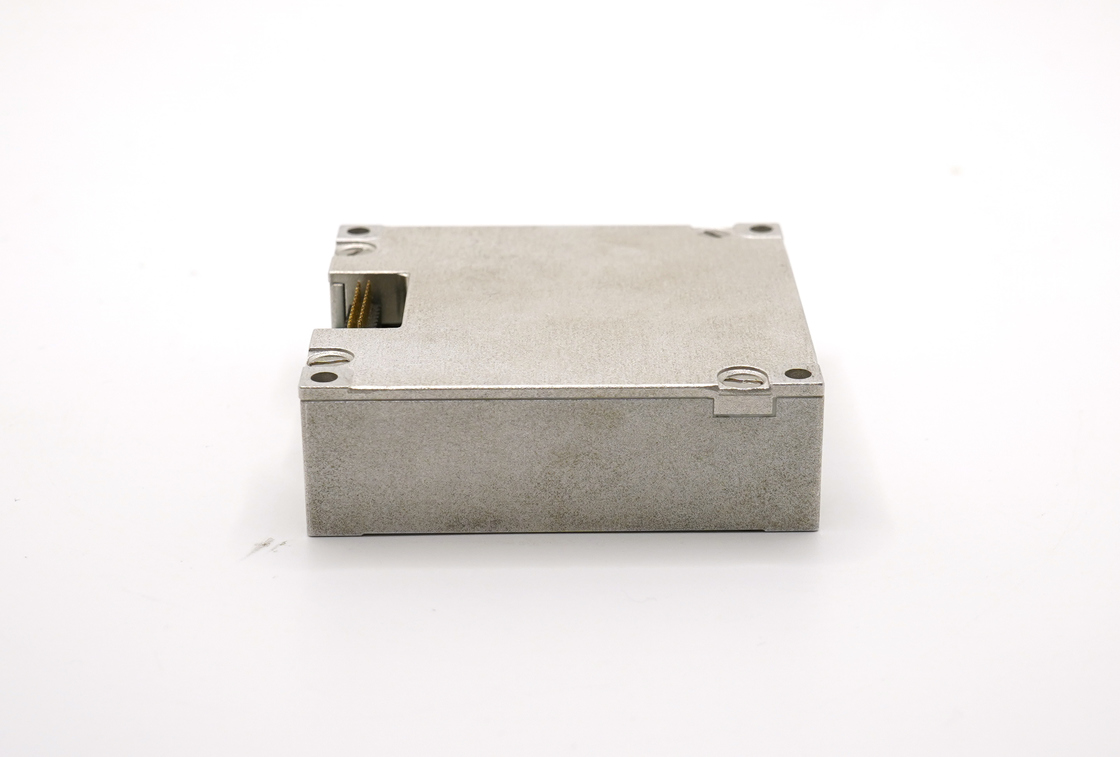

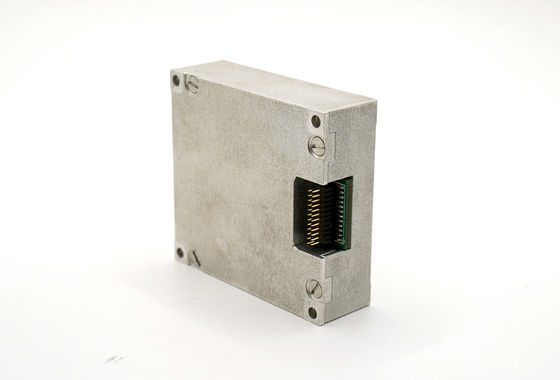

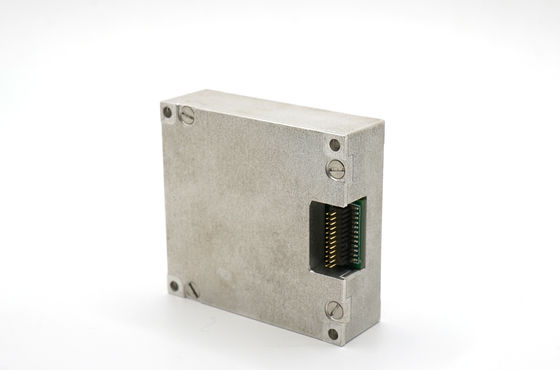

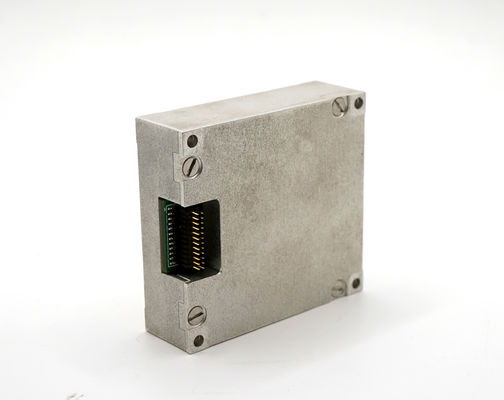

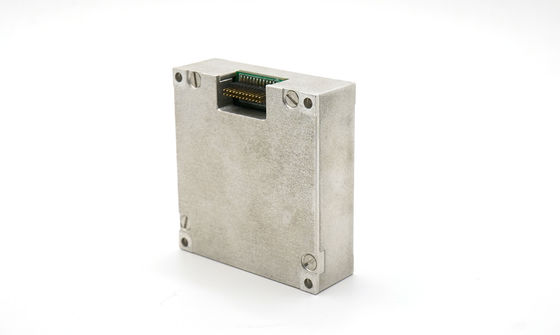

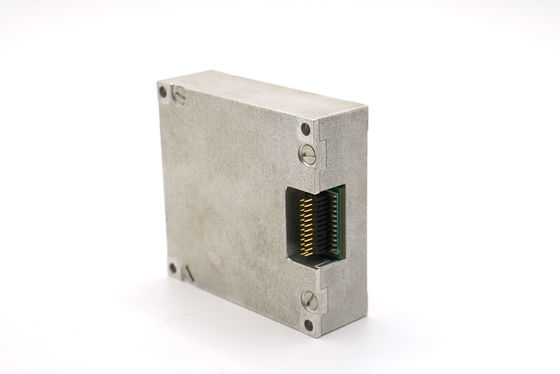

Adis16488 MEMS Inertial Measurement Unit IMU for Motion Tracking

Product Description

The 16488HA inertial measurement unit is a complete inertial system featuring a built-in three-axis gyroscope and three-axis accelerometer. It measures three-axis angular rate, acceleration, and other carrier parameters, outputting error-compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) via SPI communication protocol.

Technical Parameters

Parameter	Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope
Dynamic measuring range				±450	º/s
Zero-bias instability	Allan variance, better than		0.3		º/h
Zero bias stability	10s smooth, RMS, better than		3		º/h
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
Random walk	1σ		0.15		º/√h
Zero-bias repeatability	1σ		5		º/h
Scale factor repeatability	1σ		100		ppm
Scale factor nonlinearity	1σ		100		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Resolution			2		º/h
Acceleration sensitivity			2		°/h/g
Accelerometer
Dynamic measuring range				±20	g
Zero bias stability	Allan variance		0.07		mg
Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
Zero bias stability	10s smooth, RMS, better than		0.25		mg
Random walk	1σ		0.029		m/s/√h
Zero-bias repeatability	1σ		0.5		mg
Scale factor repeatability	1σ		500		ppm
Scale factor nonlinearity	FS=20g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross coupling			0.1		%
Communication Interface
1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics
Voltage	Direct current		3.3		V
Power consumption			1.5	1.5	W
Ripple	P-P		48±2	100	mV
Use environment
Operating temperature		-45		85	℃
Storage temperature		-55		85	℃

Outline Drawing
