3 Axis Turntable
Created with Pixso.

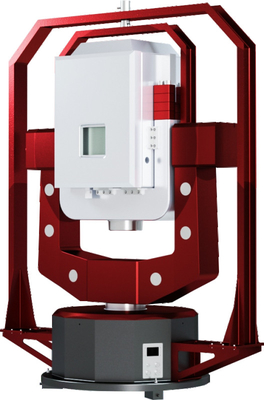

High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing

High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing

High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing

Brand Name: Firepower
Model Number: 3LT400-W
MOQ: 1
Price: negotiable
Payment Terms: T/T
Supply Ability: 1000/month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Product Name:
Three Axis Motion Simulation Rate Turntable
Payload:
40kg
Table Size:
Φ400mm
Computer Port:
RS232/RS422
Location Range:
±0- ±360°
Position Accuracy:
±1~3''
Rotation Accuracy:
±1~3''
Table Height:
540mm
Mesa Flatness:
0.02mm
Tempe. Control Accuracy:
±0.5ºC
Packaging Details:
carton with sponge
Supply Ability:
1000/month
Highlight:

Gyroscope Rate Turntable

,

Three Axis Rate Turntable

,

MEMS Sensor testing Rate Turntable

Product Description
High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor Testing
Product Overview

The Three-Axis Turntable with Temperature Chamber Series is a specialized testing device designed to support full-temperature range testing. It provides motion excitation in three axes—including angular position, angular rate, and angular acceleration—making it ideal for testing gyroscopes, inertial measurement units, and accelerometers.

Key Specifications
Attribute Value
Product name Three Axis Motion Simulation Rate Turntable
Payload 40kg
Table size Φ400mm
Computer Port RS232/RS422
Location Range ±0- ±360°
Position Accuracy ±1~3''
Rotation accuracy ±1~3''
Table Height 540mm
Mesa Flatness 0.02mm
Tempe. Control Accuracy ±0.5ºC
System Components

This system consists of four main components:

  • The mechanical body
  • Temperature control chamber
  • Electrical measurement and control cabinet
  • The compressor with piping support

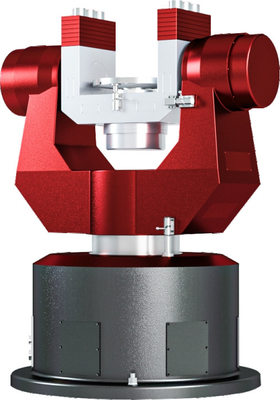

The mechanical body features a U-U-T type three-axis structure, comprising the base, outer frame shaft, middle frame shaft, and inner frame shaft.

Technical Parameters
Structural form Three axis continuous rotation with chamber
Mesa material Stainless steel/aluminum alloy (Optional)
Maximum load weight 40KG
Table size Φ400mm
Table height 540mm
Rotation accuracy ±1~3″ (Optional)
Angular position range ±0~ ±360°
Angular position accuracy ±1~3″ (Optional)
Angular resolution 0.0001°
Angular rate range 0.001~4500°/s
Angular rate accuracy ω<1°/s
1<ω<10°/s
10<ω°/s
Speed smoothness 1 × 10-3
1 × 10-4
5 × 10-5
Maximum angular acceleration Inner 4500°/s²
Middle 2000°/s²
Outer 1000°/s²
Rate resolution 0.0001°
Slip ring number 10~80 (Optional)
System bandwidth 5~80Hz (Optional)
Slip-ring voice 0.03V
Tank range -60~+100ºC
Tempe. control accuracy ±0.5ºC
High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing 0
