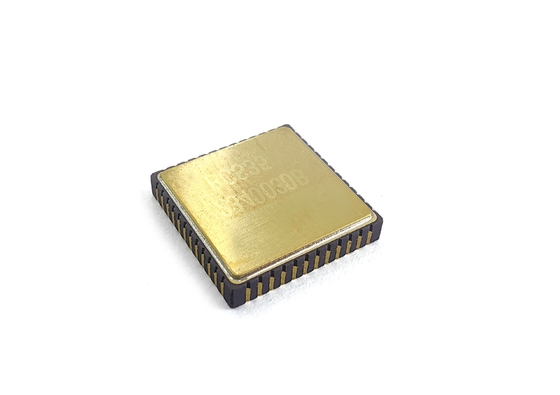

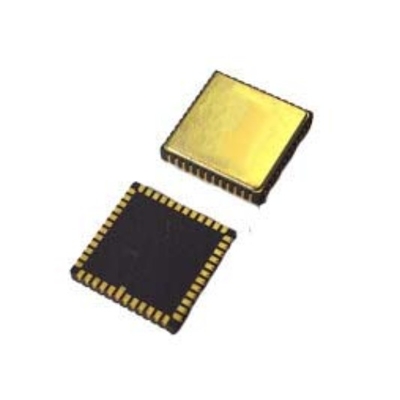

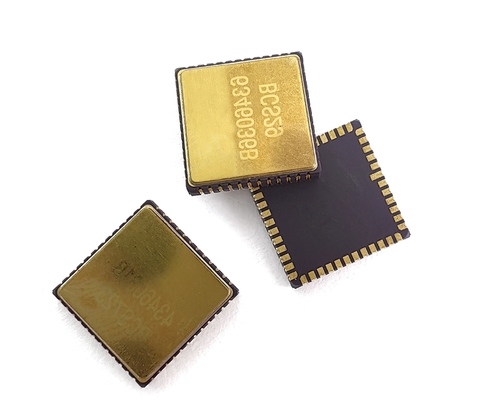

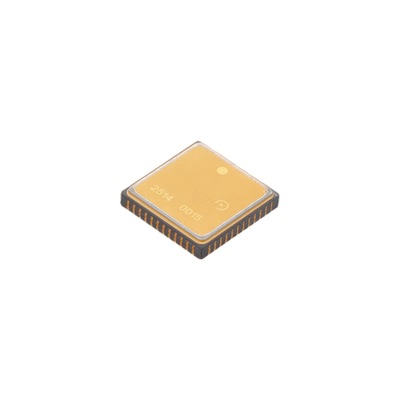

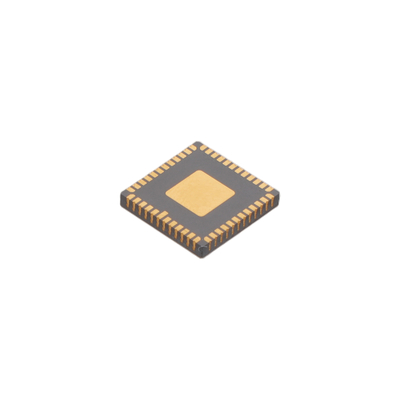

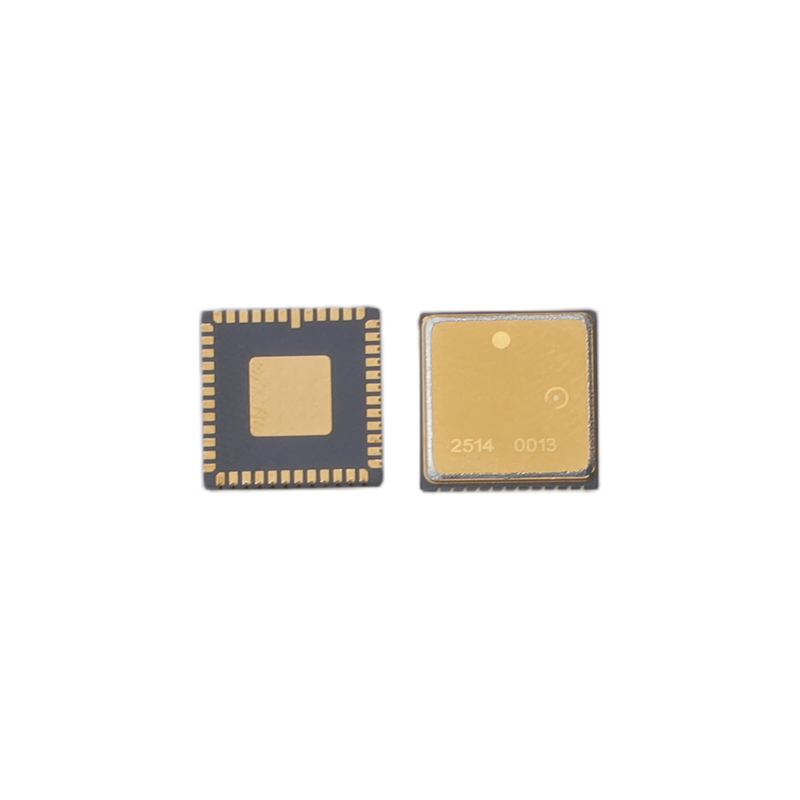

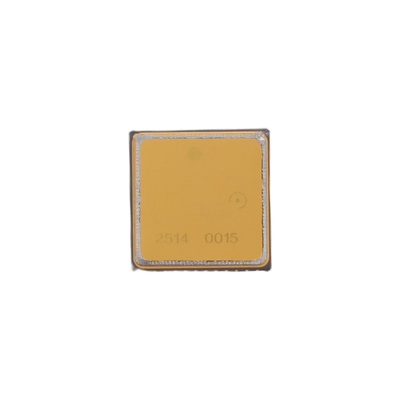

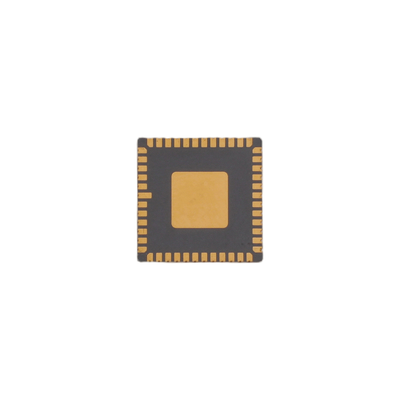

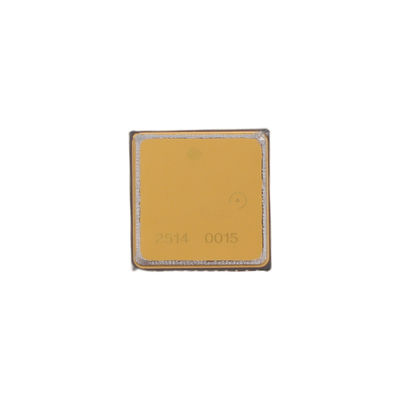

Tactical-grade single-axis MEMS gyroscope chips for Unmanned Systems

Name: Tactical-grade single-axis MEMS gyroscope chips for Unmanned Systems
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGC150- P05
Price: 1500 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MGC150- P05
MOQ:	1
Price:	1500$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

150°/s

Bias Stability (10 S Smoothing):

0 .5°/h

Bias @ 25℃:

15°/h

Angle Random Walk:

0.06°/√ H

Bias Repeatability:

2°/h

Scale Factor Repeatability:

30ppmx

Non - Linearity @ Full Scale (FS):

100ppm

Bandwidth:

30Hz

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

Tactical-grade single-axis MEMS gyroscope chips for Unmanned Systems

Product Description

MGC series single-axis MEMS gyroscopes deliver highly stable and low-noise angular velocity outputs in a compact ceramicpackage with fully digital interface. With bias stability as low as 0.5 dph, angle random walk down to 0.06°/√h, and wide bandwidth up to ≥100 Hz, these sensors are ideal for demanding applications requiring high precision and long-term repeatability.They are especially suitable for drone and unmanned systems' orientation and attitude control, as well as for integration into advanced navigation systems such as IMU and INS

Technical Parameters

Parameter	MGC150- P05	MGC500- P1	MGC500- P2	MGC500- P3	Unit
Range	150	500	500	500	dps
Bias @ 25℃	15	45	45	45	dph
Noise @ 10Hz	0.001	0.0012	0.0012	0.0012	mdps/√ H z
Bias Stability (10 s smoothing)	0 .5	1.0	2.0	3.0	dph
Angle Random Walk	0.06	0.08	0.08	0.08	°/√ h
Bias Repeatability (Weekly Repeatability	2	2	2	2	dph
Scale Factor	38550	11185	11185	11185	LSB/ dps
Scale Factor Repeatability (Weekly Repeatability)	30	30	30	30	ppm
Non - linearity @ Full Scale (FS)	100	100	100	100	ppm
Non - linearity @ 200 dps	50	50	50	50	ppm
Bandwidth	30	≥100	≥100	≥100	Hz
G - Sensitivity	2	3	3	3	dph/g
Vibration Rectification Coefficient @ 6.06 grms	0.4	0.3	0.3	0.3	dph/g2
Vibration Reliability (Power - on))	4000g , 0. 5ms

Typical Applications:

Inertial Navigation Systems
Platform Stabilization
Attitude and Heading Reference System
Precision Agriculture and Industrial Automation
UAV and Autonomous Vehicle
