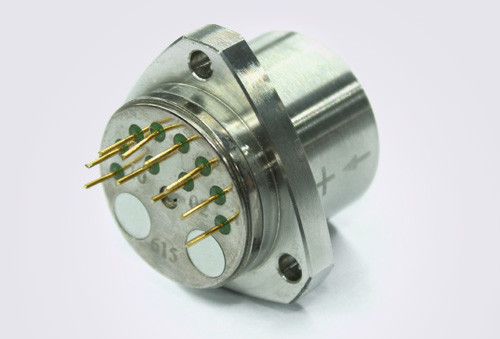

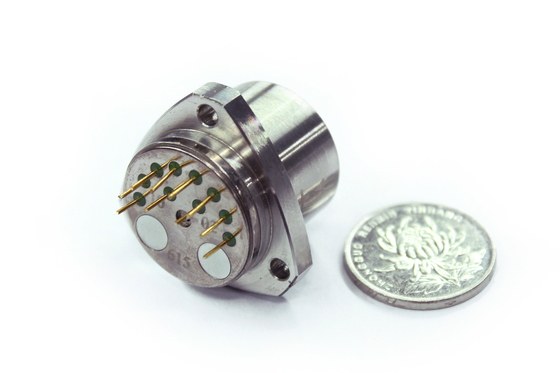

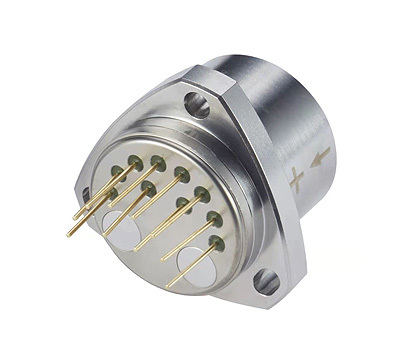

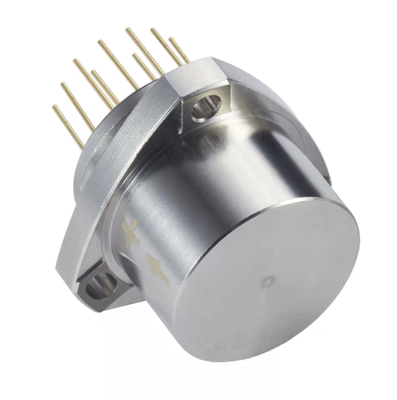

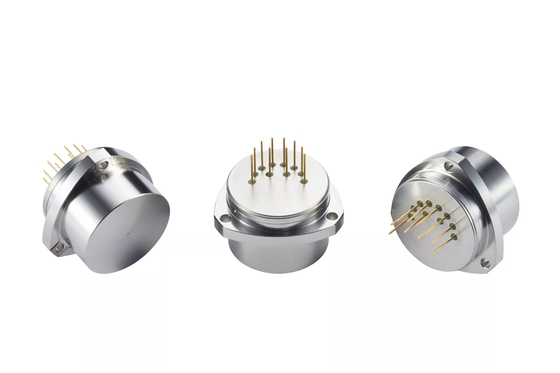

Analog Output Single Axis Quartz Accelerometer Vibration Sensor for Oil Drilling

Brand Name:	FIREPOWER
Model Number:	ACC2-01
MOQ:	1
Price:	$1200
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Range:

±70g-100g

Bias K0/K1:

≤±3mg

Threshold:

5μg

Class II Nonlinear Coefficient K2:

≤±10μg /g2

Scale Factor K1:

0.8~1.2 MA/g

Bias comprehensive Repeatability:

≤10 μg

Random Vibration:

6g(20-2000Hz)

Current Consumption:

≤±20mA

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Analog Output Accelerometer Vibration Sensor

Vibration Sensor for Oil Drilling

Single Axis Accelerometer Vibration Sensor

Product Description

Analog Output Single Axis Quartz Accelerometer Vibration Sensor for Oil Drilling

Key Specifications

Attribute	Value
Range	±70g-100g
Bias K0/K1	≤±3mg
Threshold	5μg
Class II nonlinear coefficient K2	≤±10μg /g2
Scale factor K1	0.8~1.2 mA/g
Bias comprehensive repeatability	≤10 μg
Random vibration	6g(20-2000Hz)
Current consumption	≤±20mA

Product Description

The ACC2 Series Vibration Acceleration Sensor is a high-precision, wide-range accelerometer capable of measuring up to ±100 g. It offers excellent long-term stability, repeatability, fast start-up performance, strong environmental adaptability, and high reliability.

The sensor is suitable for both static and dynamic measurements and can also serve as a standard vibration or tilt sensor. The sensor's output current maintains a linear relationship with the applied force or acceleration. Users can achieve high-precision output by calculating and selecting an appropriate sampling resistor.

Additionally, the built-in temperature sensor allows for compensation of bias and scale factor, effectively reducing the influence of ambient temperature as per user requirements.

Technical Parameters

Serial number	Parameter	ACC2-01	ACC2-02	ACC2-03
1	Range	±70g,±100g	±70g,±100g	±70g,±100g
2	Threshold	5μg	5μg	5μg
3	Bias k0/K1	≤±3 mg	≤±3 mg	≤±5 mg
4	Scale factor K1	0.8~1.2 mA/g	0.8~1.2 mA/g	0.8~1.2 mA/g
5	Class II nonlinear coefficient K2	≤±10μg /g2	≤±15μg /g2	≤±20μg /g2
	6	0 g 4-hour short term stability	≤10 μg	≤10μg	≤10 μg
7	1g 4-hour short-term stability	≤10 ppm	≤10 ppm	≤10 ppm
8	Bias comprehensive repeatability σK0 (1σ, 1 month)	≤10 μg	≤15 μg	≤25 μg
9	Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month)	≤15ppm	≤20 ppm	≤30 ppm
10	Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month)	≤±10 μg /g2	≤±10 μg /g2	≤±10 μg /g2
11	Bias temperature coefficient (full temperature average)	≤±10 μg /℃	≤±20 μg /℃	≤±30 μg /℃
12	Scale Factor Temperature Coefficient (Averaged Over Temperature)	≤±20 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
13	Noise (840 Ω sampling resistor)	≤5mv	≤5mv	≤5mv
14	Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
15	Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
16	Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
17	Impact	100g,8ms,1/2sin	100g,8ms,1/2sin	100g,8ms,1/2sin
18	Operating temperature range	-55～+85℃	-55～+85℃	-55～+85℃
19	Storage temperature range	-60~+120℃	-60~+120℃	60~+120℃
20	Power supply	±12~±15V	±12~±15V	±12~±15V
21	Current consumption	≤±20mA	≤±20mA	≤±20mA
22	Temperature sensor	Option	Option	Option
23	Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
24	Weight	≤80g	≤80g	≤80g

Dimension Drawings

Standard version

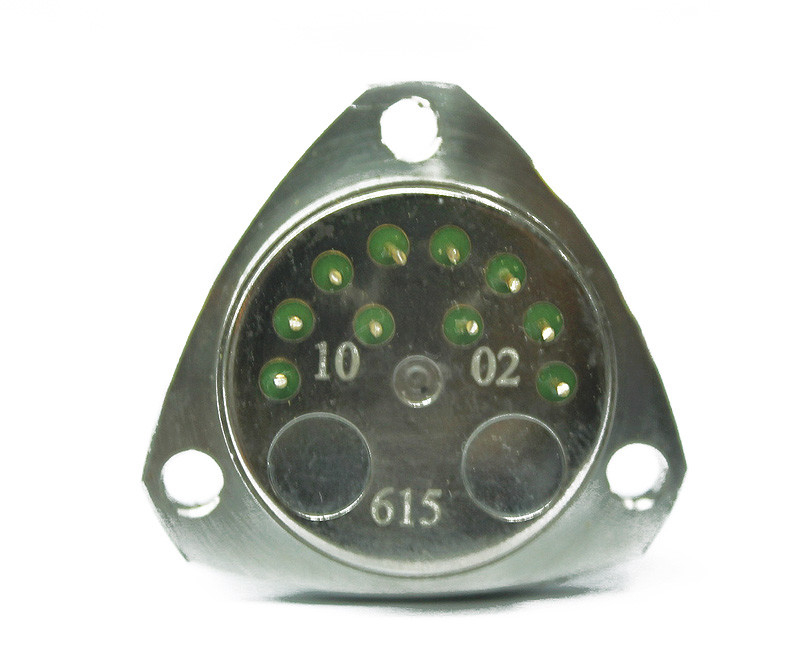

The mounting hole is U-shaped

Square flange
