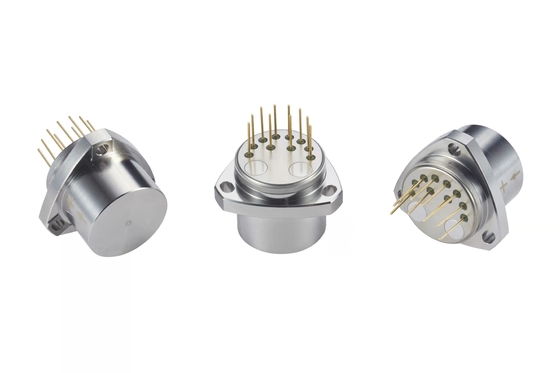

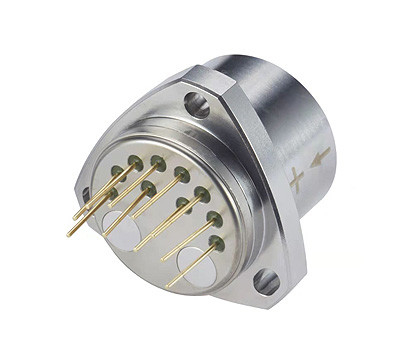

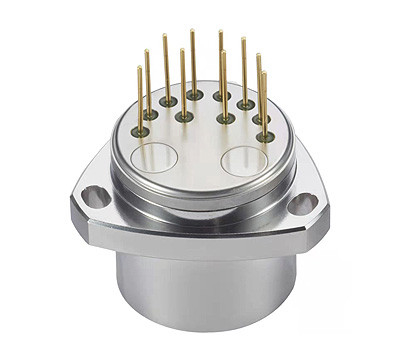

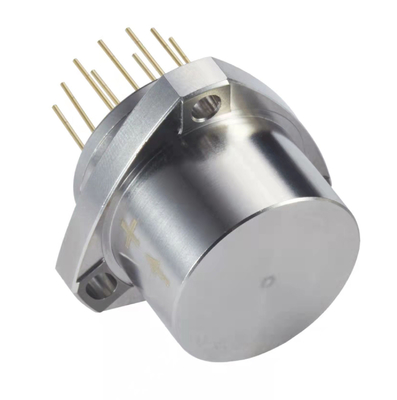

Navigation Grade Quartz Accelerometer Vibration Sensor Q-Flex QA-3000 Replacement

Brand Name:	FIREPOWER
Model Number:	ACC1-01
MOQ:	1
Price:	$1300
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±50-70g

Bias K0/K1:

≤±3mg

Threshold:

5μg

Class II Nonlinear Coefficient K2:

≤±10μg /g2

Scale Factor K1:

1.0~1.30 MA/g

Bandwidth:

800~2500 Hz

Size:

Ф25.4X30mm

Weight:

≤80g

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Vibration Sensor Quartz Accelerometer

Navigation Grade Quartz Accelerometer

Product Description

Navigation Grade Quartz Accelerometer Vibration Sensor Q-Flex QA-3000 Replacement

Product Attributes

Attribute	Value
Range	±50-70g
Bias K0/K1	≤±3mg
Threshold	5μg
Class II nonlinear coefficient K2	≤±10μg /g2
Scale factor K1	1.0~1.30 mA/g
Bandwidth	800~2500 Hz
Size	Ф25.4X30mm
Weight	≤80g

Product Description

The ACC1 series vibration acceleration sensor is a high-precision accelerometer with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. It can be used for both static and dynamic tests. It is also a standard vibration sensor and tilt sensor.

The output current of the product has a linear relationship with the force or acceleration, and the user can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the bias and scale factor and reduce the influence of ambient temperature according to the user's requirements.

Technical Parameters

Serial number	Parameter	ACC1-01	ACC1-02	ACC1-03
1	Range	±50g,±60g,±70g	±50g,±60g,±70g	±50g,±60g,±70g
2	Threshold	5μg	5μg	5μg
3	Bias K0/K1	≤±3mg	≤±3mg	≤±5 mg
4	Scale factor K1	1.0~1.30 mA/g	1.0~1.30 mA/g	1.0~1.30 mA/g
5	Class II nonlinear coefficient K2	≤±10μg /g2	≤±15μg /g2	≤±20μg /g2
6	0 g 4 hour short term stability	≤10 μg	≤10μg	≤10 μg
7	1g 4-hour short-term stability	≤10 ppm	≤10 ppm	≤10 ppm
8	Bias comprehensive repeatability σK0 (1σ, 1 month)	≤10 μg	≤15μg	≤25 μg
9	Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month)	≤10ppm	≤20 ppm	≤30 ppm
10	Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month)	≤±10 μg /g2	≤±15 μg /g2	≤±20 μg /g2
11	Bias temperature coefficient (full temperature average)	≤±10 μg /℃	≤±20 μg /℃	≤±30 μg /℃
12	Scale Factor Temperature Coefficient (Averaged Over Temperature)	≤±10 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
13	Noise (840 Ω sampling resistor)	≤5mv	≤8.4mv	≤8.4mv
14	Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
15	Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
16	Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
17	Impact	100g,8ms,1/2sin	100g,8ms,1/2sin	100g,8ms,1/2sin
18	Operating temperature range	-55~+85℃	-55~+85℃	-55~+85℃
19	Storage temperature range	-60~+120℃	-60~+120℃	-60~+120℃
20	Power supply	±12~±15V	±12~±15V	±12~±15V
21	Current consumption	≤±20mA	≤±20mA	≤±20mA
22	Temperature sensor	Option	Option	Option
23	Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
24	Weight	≤80g	≤80g	≤80g

Dimension Drawing
