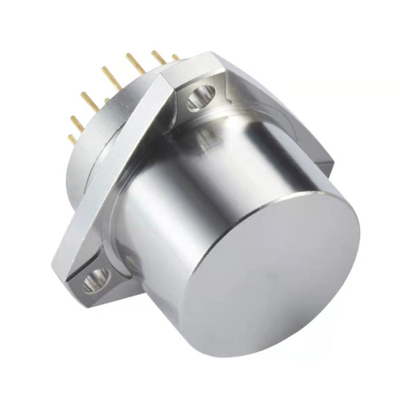

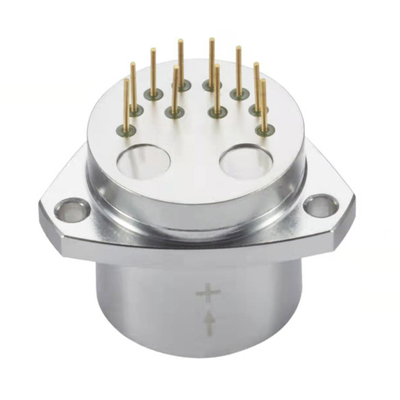

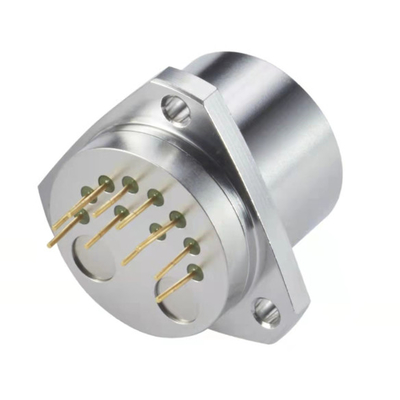

Tactical-grade Quartz Accelerometer Q-Flex QA3000 Replacement Honeywell for Aerospace and aviation

Tactical-grade Quartz Accelerometer Q-Flex QA3000 Replacement Honeywell for Aerospace and aviation

Brand Name:	FIREPOWER
Model Number:	ACC1-01
MOQ:	1
Price:	$1300
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±50-70g

Bias K0/K1:

≤±3mg

Threshold:

5μg

Class II Nonlinear Coefficient K2:

≤±10μg /g2

Scale Factor K1:

1.0~1.30 MA/g

Bandwidth:

800~2500 Hz

Size:

Ф25.4X30mm

Weight:

≤80g

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Aerospace Aviation Quartz Accelerometer

Tactical-grade Quartz Accelerometer Q-Flex

Q-Flex QA3000 Quartz Accelerometer

Product Description

Tactical-grade Quartz Accelerometer Q-Flex QA3000 Replacement Honeywell for Aerospace and Aviation

Key Specifications

Attribute	Value
Range	±50-70g
Bias K0/K1	≤±3mg
Threshold	5μg
Class II nonlinear coefficient K2	≤±10μg /g²
Scale factor K1	1.0~1.30 mA/g
Bandwidth	800~2500 Hz
Size	Ф25.4X30mm
Weight	≤80g

Product Description

The ACC1 series vibration acceleration sensor is a high-precision accelerometer with excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability. Suitable for both static and dynamic testing applications, it serves as a standard vibration sensor and tilt sensor.

The output current maintains a linear relationship with force or acceleration, allowing users to select appropriate sampling resistance for high-precision output. Includes built-in temperature sensor for bias and scale factor compensation, reducing environmental temperature effects.

Technical Parameters

Parameter	ACC1-01	ACC1-02	ACC1-03
Range	±50g,±60g,±70g	±50g,±60g,±70g	±50g,±60g,±70g
Threshold	5μg	5μg	5μg
Bias K0/K1	≤±3mg	≤±3mg	≤±5 mg
Scale factor K1	1.0~1.30 mA/g	1.0~1.30 mA/g	1.0~1.30 mA/g
Class II nonlinear coefficient K2	≤±10μg /g²	≤±15μg /g²	≤±20μg /g²
0 g 4 hour short term stability	≤10 μg	≤10μg	≤10 μg
1g 4-hour short-term stability	≤10 ppm	≤10 ppm	≤10 ppm
Bias comprehensive repeatability σK0 (1σ, 1 month)	≤10 μg	≤15μg	≤25 μg
Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month)	≤10ppm	≤20 ppm	≤30 ppm
Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month)	≤±10 μg /g²	≤±15 μg /g²	≤±20 μg /g²
Bias temperature coefficient (full temperature average)	≤±10 μg /℃	≤±20 μg /℃	≤±30 μg /℃
Scale Factor Temperature Coefficient (Averaged Over Temperature)	≤±10 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
Noise (840 Ω sampling resistor)	≤5mv	≤8.4mv	≤8.4mv
Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
Impact	100g,8ms,1/2sin	100g,8ms,1/2sin	100g,8ms,1/2sin
Operating temperature range	-55~+85℃	-55~+85℃	-55~+85℃
Storage temperature range	-60~+120℃	-60~+120℃	-60~+120℃
Power supply	±12~±15V	±12~±15V	±12~±15V
Current consumption	≤±20mA	≤±20mA	≤±20mA
Temperature sensor	Option	Option	Option
Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
Weight	≤80g	≤80g	≤80g

Dimension Drawing
