ADIS16488 Replacement MEMS Inertial Measurement Unit Sensor SPI Output for Land Vehicle

Name: ADIS16488 Replacement MEMS Inertial Measurement Unit Sensor SPI Output for Land Vehicle
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 2000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Dynamic Measuring Range:

±450°/s

Zero-bias Instability:

0.3°/h

Random Walk:

0.15º/√h

Scale Factor Repeatability:

100ppm

Bandwidth (-3dB):

250Hz

Acc Range:

±20g

Acc Zero Bias Stability:

0.07mg

Communication Interface:

1-way SPI

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

SPI Output Inertial Measurement Unit

SPI MEMS Inertial Measurement Unit

MEMS Inertial Measurement Unit

Product Description

ADIS16488 Replacement MEMS Inertial Measurement Unit Sensor SPI Output for Land Vehicle

Product Description

The 16488HA inertial measurement unit is a complete inertial system with a built-in three-axis gyroscope and a three-axis accelerometer, which is used to measure the three-axis angular rate, acceleration and other parameters of the carrier, and output the data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation, etc.) through SPI according to the communication protocol.

Technical Parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range			±450		º/s
	Zero-bias instability	Allan variance, better than		0.3		º/h
	Zero bias stability	10s smooth, RMS, better than		3		º/h
	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
	Random walk	1σ		0.15		º/√h
	Zero-bias repeatability	1σ		5		º/h
	Scale factor repeatability	1σ		100		ppm
	Scale factor nonlinearity	1σ		100		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
	Resolution			2		º/h
	Acceleration sensitivity			2		°/h/g
Accelerometer	Dynamic measuring range			±20		g
	Zero bias stability	Allan variance		0.07		mg

	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
	Zero bias stability	10s smooth, RMS, better than		0.25		mg
	Random walk	1σ		0.029		m/s/√h
	Zero-bias repeatability	1σ		0.5		mg
	Scale factor repeatability	1σ		500		ppm
	Scale factor nonlinearity	FS=20g		500		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
Communication Interface	1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics	Voltage	Direct current		3.3		V
	Power consumption			1.5	1.5	W
	Ripple	P-P		48±2	100	mV
Use environment	Operating temperature		-45		85	℃
Use environment	Storage temperature		-55		85	℃

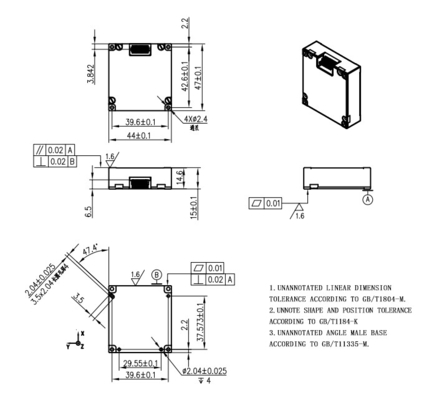

Outline Structure

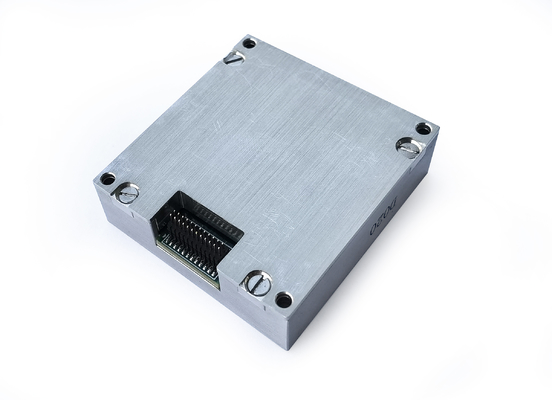

ADIS16488 Replacement MEMS Inertial Measurement Unit Sensor SPI Output for Land Vehicle 0

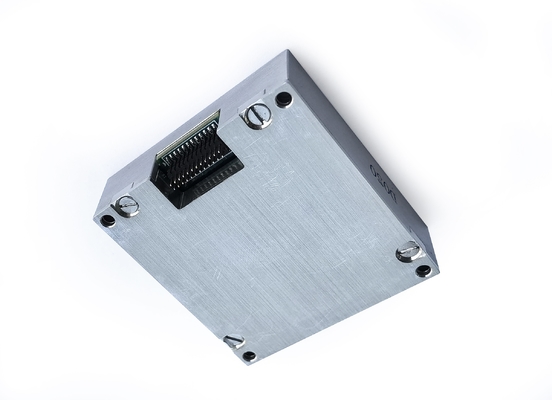

ADIS16488 Replacement MEMS Inertial Measurement Unit Sensor SPI Output for Land Vehicle 1

ADIS16488 Replacement MEMS Inertial Measurement Unit Sensor SPI Output for Land Vehicle 2
