High Performance MEMS Inertial Measurement Unit IMU Sensor ADIS16488 Replacement

Name: High Performance MEMS Inertial Measurement Unit IMU Sensor ADIS16488 Replacement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HA
Price: 2000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488HA
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±450°/s

Bias Instability:

0.3°/h

Random Walk:

0.15º/√h

Scale Factor Repeatability:

100ppm

Bandwidth (-3dB):

250Hz

Accelerometer Range:

±20g

Accelerometer Bias Stability:

0.07mg

Voltage:

3.3V

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

ADIS16488 Replacement IMU Sensor

ADIS16488 Inertial Measurement Unit

MEMS Inertial Measurement Unit

Product Description

High Performance MEMS Inertial Measurement Unit IMU Sensor ADIS16488 Replacement

Product Description

The 16488HA Inertial Measurement Unit (IMU) is a fully integrated inertial sensing system that combines a three-axis gyroscope and a three-axis accelerometer within a compact module. It is designed to accurately measure three-axis angular velocity and linear acceleration of the host platform.

The system performs advanced error compensation, including:

Temperature compensation
Installation misalignment correction
Nonlinearity correction.

After compensation, the unit outputs high-precision inertial data via an SPI digital interface, following a standardized communication protocol. This makes the 16488HA IMU highly suitable for embedded applications requiring reliable and stable motion sensing in dynamic environments.

Technical Parameters

Parameter		Test conditions	Minimum value	Typical value	Maximum value	Unit
Gyroscope	Dynamic measuring range			±450		º/s
	Zero-bias instability	Allan variance, better than		0.3		º/h
	Zero bias stability	10s smooth, RMS, better than		3		º/h
	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		20		º/h
	Random walk	1σ		0.15		º/√h
	Zero-bias repeatability	1σ		5		º/h
	Scale factor repeatability	1σ		100		ppm
	Scale factor nonlinearity	1σ		100		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
	Resolution			2		º/h
	Acceleration sensitivity			2		°/h/g
Accelerometer	Dynamic measuring range			±20		g
	Zero bias stability	Allan variance		0.07		mg

	Zero bias in full temperature range	-40 ℃ ~ 85 ℃, 10 s smooth, rms		3		mg
	Zero bias stability	10s smooth, RMS, better than		0.25		mg
	Random walk	1σ		0.029		m/s/√h
	Zero-bias repeatability	1σ		0.5		mg
	Scale factor repeatability	1σ		500		ppm
	Scale factor nonlinearity	FS=20g		500		ppm
	Bandwidth (-3dB)			250		Hz
	Cross coupling			0.1		%
Communication Interface	1-way SPI	Enter the clock frequency		8	15	MHz
Electrical characteristics	Voltage	Direct current		3.3		V
	Power consumption			1.5	1.5	W
	Ripple	P-P		48±2	100	mV
Use environment	Operating temperature		-45		85	℃
Use environment	Storage temperature		-55		85	℃

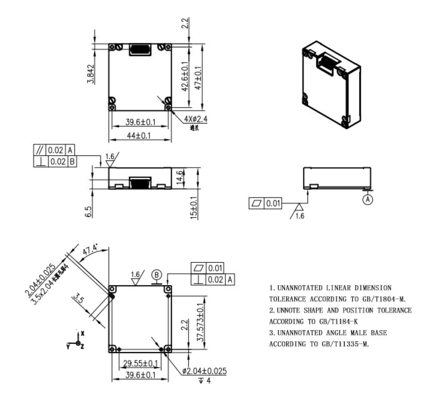

Outline Structure

High Performance MEMS Inertial Measurement Unit IMU Sensor ADIS16488 Replacement 0

High Performance MEMS Inertial Measurement Unit IMU Sensor ADIS16488 Replacement 1

High Performance MEMS Inertial Measurement Unit IMU Sensor ADIS16488 Replacement 2
