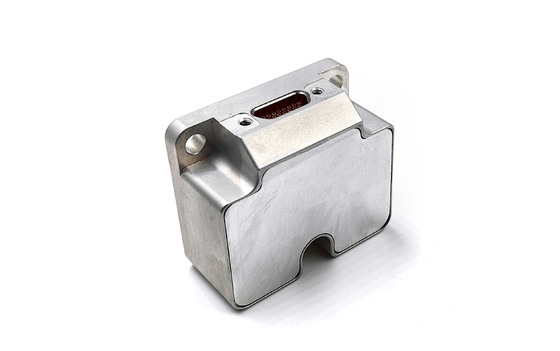

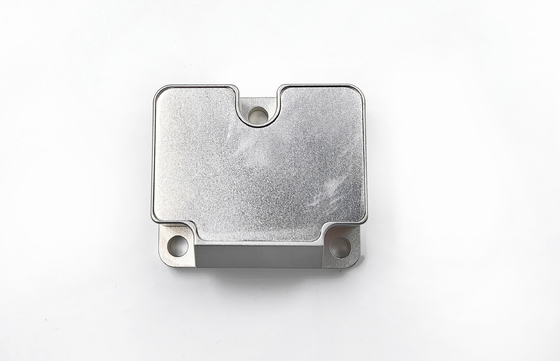

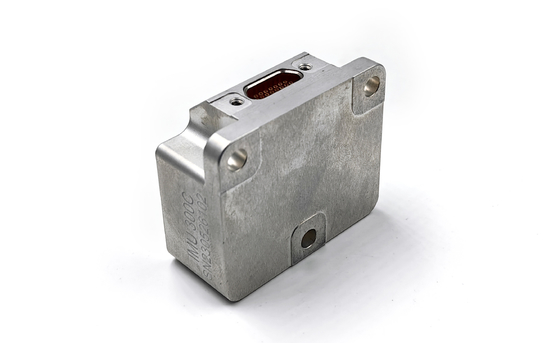

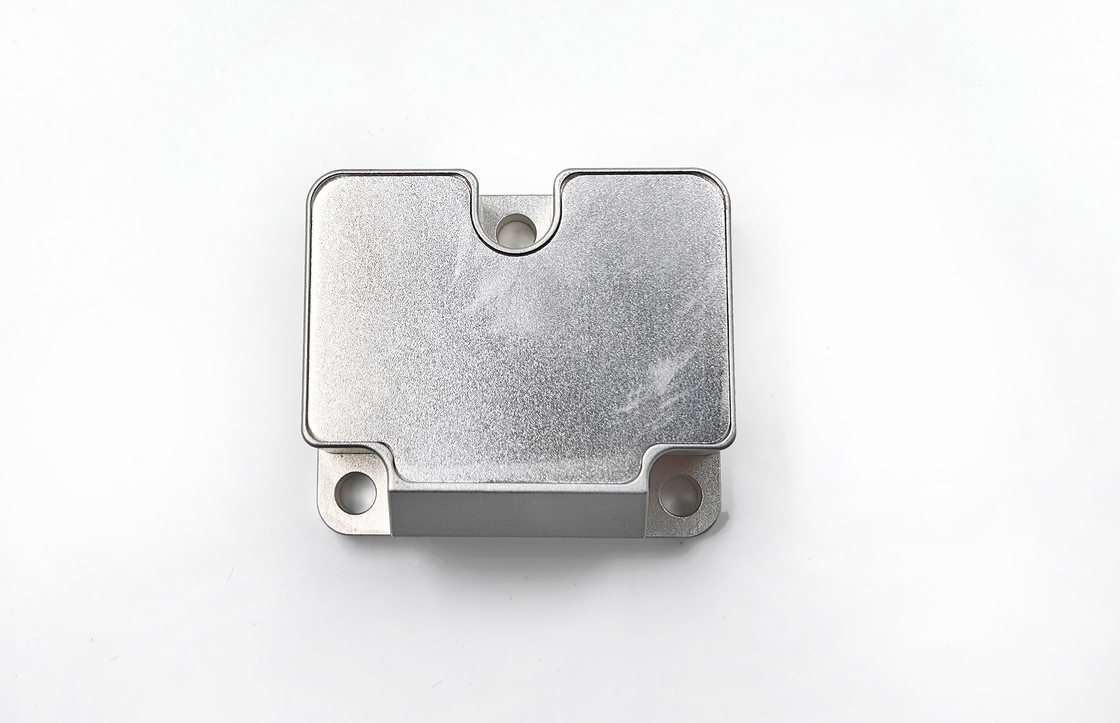

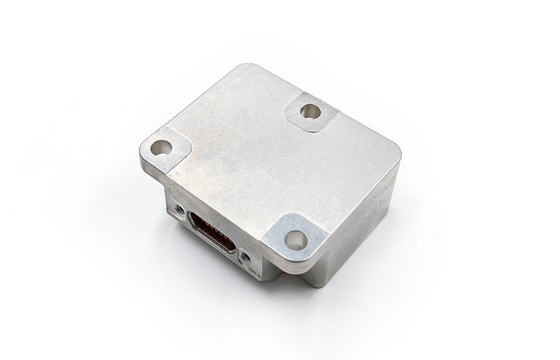

Tactical Grade Inertial Measurement Unit without GPS aided Stim300 Replacement

Tactical Grade Inertial Measurement Unit without GPS aided Stim300 Replacement

Brand Name:	Firepower
Model Number:	IMU6-1
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Gyro Measuring Range:

±400°/s

In-Run Bias Stability:

0.3°/h

Angular Random Walk:

0.15º/√h

Bias Repeatability (1σ ):

1°/h

Scale Factor Non-Linearity(1σ ):

150ppm

3 DB Bandwidth:

250Hz

Accelerometer Bias Stability:

0.02mg

Weight:

55g

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Stim300 Inertial Measurement Unit

Tactical Grade Inertial Measurement Unit

Stim300 Replacement Inertial Measurement Unit

Product Description

Tactical Grade Inertial Measurement Unit without GPS aided Stim300 Replacement

Key Specifications

Attribute	Value
Gyro Measuring range	±400°/s
In-Run Bias Stability	0.3°/h
Angular Random Walk	0.15º/√h
Bias repeatability (1σ)	1°/h
Scale Factor Non-Linearity(1σ)	150ppm
3 dB Bandwidth	250Hz
Accelerometer bias stability	0.02mg
Weight	55g

Product Overview

The IMU6 MEMS inertial measurement unit integrates a three-axis gyroscope, three-axis accelerometer, three-axis inclination angle sensor, temperature sensor, signal processing board, and supporting software. This comprehensive system measures three-axis angular rate, acceleration, and inclination angle of a carrier, outputting compensated data (including temperature, installation misalignment, and nonlinear compensation) via RS-422 serial port using standardized communication protocols.

Gyroscope Performance

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability	°/h	0.3	0.1	0.05	1
Bias stability @10s	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ)	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ)	ppm	150	150	150	300
Scale Factor Repeatability (1σ)	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Performance

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
Angular Random Walk	m/s/√h	0.001	0.002	0.005	0.01
Bias repeatability(1σ)	mg	0.1	0.5	1	2
Scale Factor Repeatability (1σ)	ppm	200	200	200	200
Scale Factor Non-Linearity(1σ)	ppm	50	100	200	300
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	100	100	100	100
