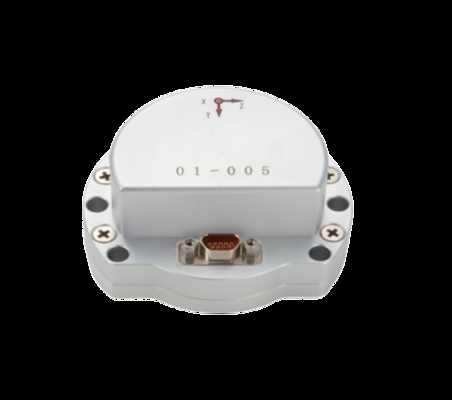

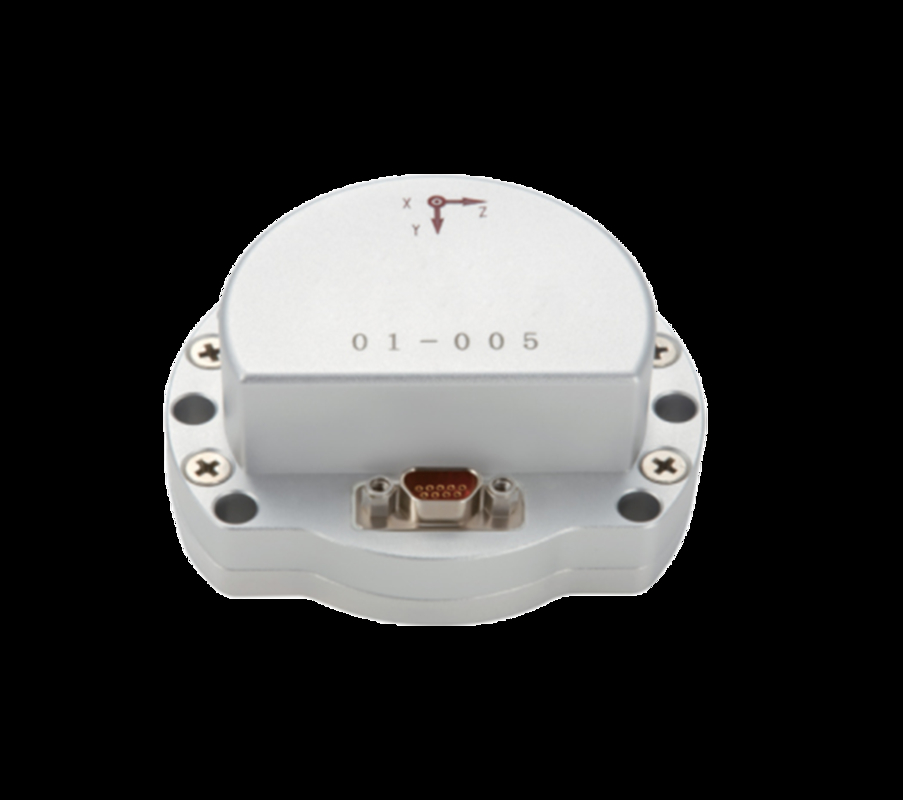

Honeywell HG4930 Replacement MEMS Inertial Measurement Unit for Navigation & Stabilization

Honeywell HG4930 Replacement MEMS Inertial Measurement Unit for Navigation & Stabilization

Honeywell HG4930 Replacement MEMS Inertial Measurement Unit for Navigation & Stabilization

Brand Name: Firepower
Model Number: HG4930C
MOQ: 1
Price: 2000$
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Gyro Measuring Range:
±200°/s
Zero-bias Stability (@ Allan Variance):
0.2°/h
Zero-bias Stability (10 S Smoothing, 1σ, Room Temperature):
0.5°/h
Random Walk:
0.02°/√h
Scale Factor Repeatability (1σ ):
1°/h
3 DB Bandwidth:
100Hz
Accelerometer Bias Stability:
30ug
Acc Measuring Range (customizable):
30g
Weight:
120g
Power Consumption:
1.5W
Packaging Details:
BOX+Sponge
Supply Ability:
500/month
Highlight:

Navigation Inertial Measurement Unit

,

Stabilization Inertial Measurement Unit

,

Honeywell Inertial Measurement Unit

Product Description
Honeywell HG4930 Replacement MEMS Inertial Measurement Unit for Navigation & Stabilization
Product Overview

The Honeywell HG4930 is a high-performance MEMS Inertial Measurement Unit (IMU) designed for precision navigation and stabilization applications. This compact unit integrates a three-axis gyroscope, three-axis accelerometer, temperature sensor, and advanced signal processing components.

Key Features
  • Measures three-axis angular rate, linear acceleration, and inclination angle
  • Performs real-time error compensation including temperature drift correction
  • Includes installation misalignment compensation and nonlinear calibration
  • Outputs corrected data via RS-422 serial interface
  • Compact design with low power consumption
Technical Specifications
Gyroscope Performance
Parameter Unit HG4930C
Measuring range (customizable) °/s ±200
Zero-bias stability (@ Allan variance) °/h 0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature) °/h 0.5
Random walk °/√h 0.02
Scale Factor Repeatability (1σ) °/h 1
3 dB Bandwidth Hz 100
Accelerometer Performance
Parameter Unit HG4930C
Measuring range (customizable) g ±30
Accelerometer bias stability ug 30
Zero-bias stability (1s smoothing) ug 700
Random walk m/s/√h 0.01
Electrical Characteristics
Parameter Unit HG4930C
Voltage V 5
Power consumption W 1.5
Ripple mV 100
Environmental Specifications
Parameter Unit HG4930C
Operating temperature ℃ -45~85
Storage temperature ℃ -60~105
Vibration -- 10~2000Hz,6.06g
Impact -- 15000g,4ms
Physical Characteristics
  • Weight: 120g
Product Diagram
Honeywell HG4930 Replacement MEMS Inertial Measurement Unit for Navigation & Stabilization 0
