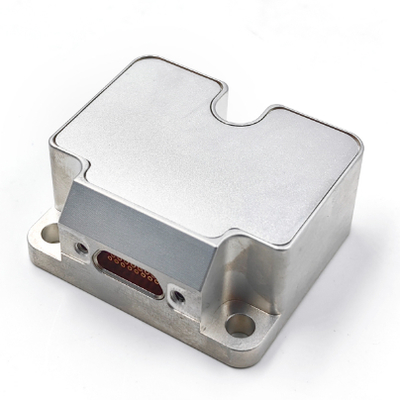

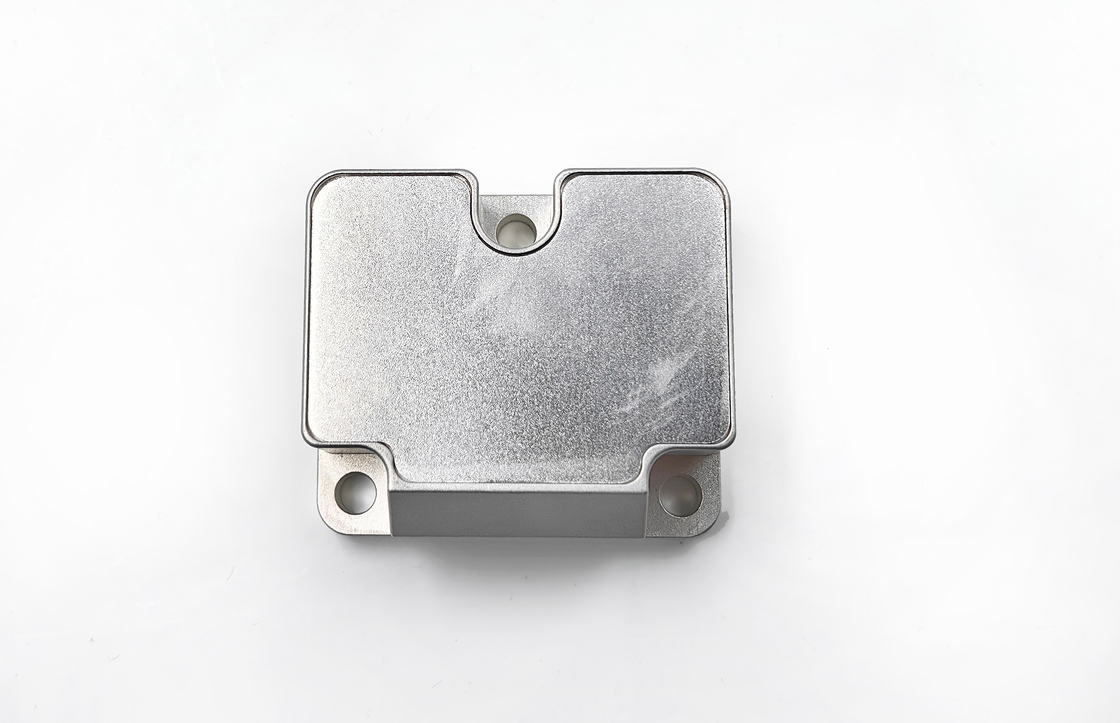

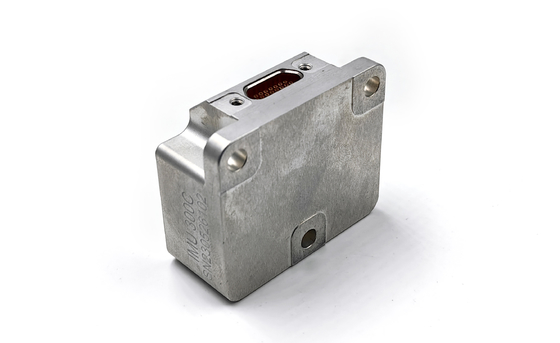

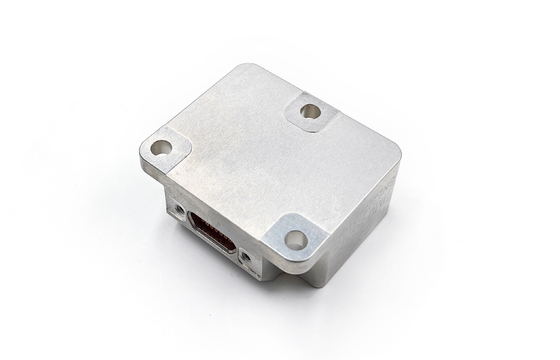

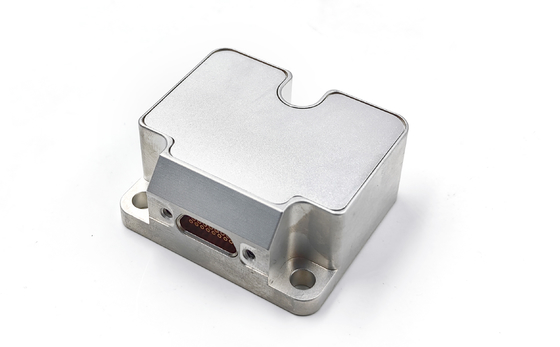

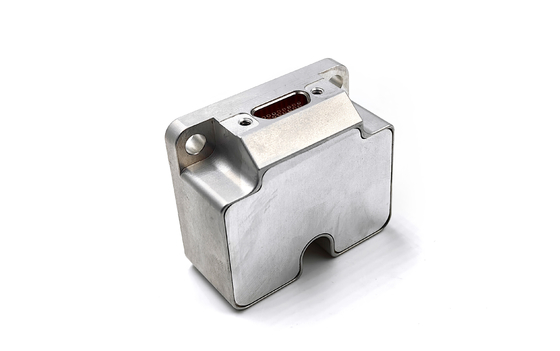

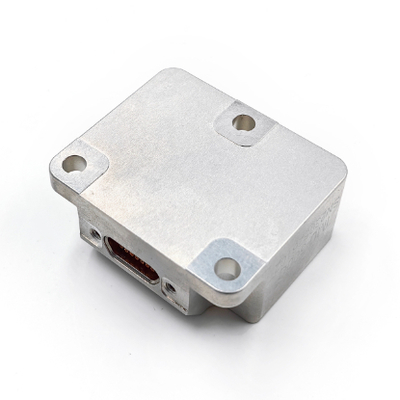

Three-Axis Gyro Accelerometer Integrated Inertial Measurement Unit with RS422 Output

Three-Axis Gyro Accelerometer Integrated Inertial Measurement Unit with RS422 Output

Brand Name:	Firepower
Model Number:	IMU6-1
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Gyro Measuring Range:

±400°/s

In-Run Bias Stability:

0.3°/h

Angular Random Walk:

0.15º/√h

Bias Repeatability (1σ ):

1°/h

Scale Factor Non-Linearity(1σ ):

150ppm

3 DB Bandwidth:

250Hz

Accelerometer Bias Stability:

0.02mg

Weight:

55g

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Inertial Measurement Unit Three Axis Gyro

Accelerometer Integrated Three Axis Gyro

RS422 Output Three Axis Gyro

Product Description

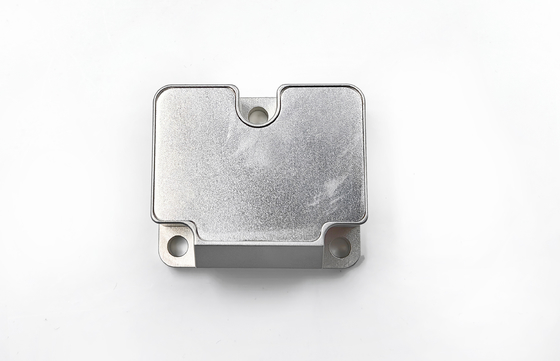

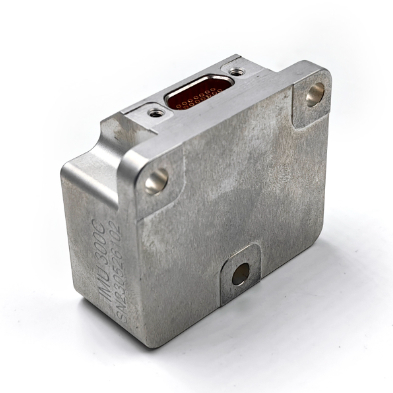

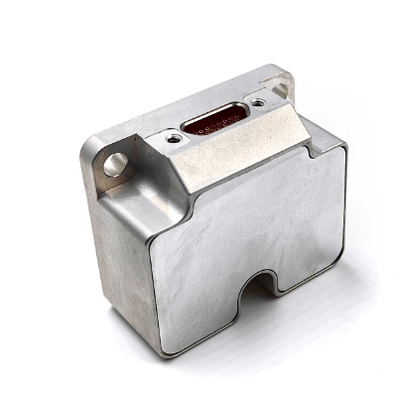

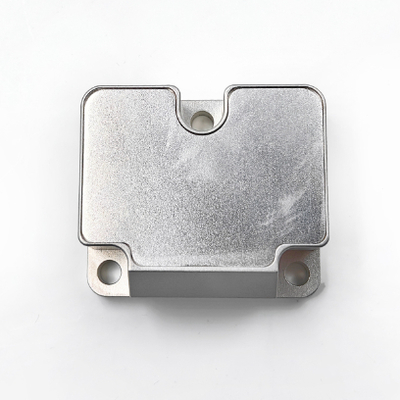

Three-Axis Gyro Accelerometer Integrated Inertial Measurement Unit with RS422 Output

Key Specifications

Gyro Measuring range: ±400°/s

In-Run Bias Stability: 0.3°/h

Angular Random Walk: 0.15º/√h

Bias repeatability (1σ): 1°/h

Scale Factor Non-Linearity (1σ): 150ppm

3 dB Bandwidth: 250Hz

Accelerometer bias stability: 0.02mg

Weight: 55g

Product Overview

The IMU6 MEMS Inertial Measurement Unit is a high-performance sensor module integrating:

Three-axis gyroscope
Three-axis accelerometer
Three-axis inclination angle sensor
Temperature sensor
Signal processing board
Mechanical structure
Embedded software

It provides real-time measurement of three-axis angular velocity, linear acceleration, and inclination angles with comprehensive error compensation including temperature compensation, installation misalignment angle correction, and nonlinearity correction.

Technical Specifications

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0.05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°√h	0.15	0.1	0.02	0.3

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
