Tactical Grade MEMS IMU HG4930 Replacement ±200°/s Gyro 100Hz Bandwidth

Tactical Grade MEMS IMU HG4930 Replacement ±200°/s Gyro 100Hz Bandwidth

Brand Name:	FIREPOWER
Model Number:	HG4930C
MOQ:	1
Price:	6500$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Dynamic Measuring Range:

±200°/s (customizable)

Zero-bias Stability (@ Allan Variance):

≤0.2 °/h

Zero Bias Stability(10s Smooth):

≤0.5°/h

Random Walk:

0.02°/√h

Bandwidth:

100Hz

Acc Range:

±30g

Acc Zero-bias Stability (Allan Variance ):

30ug

Voltage:

Vibration:

10~2000Hz，6.06g

Weight:

120g

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Tactical MEMS IMU HG4930 replacement

HG4930 IMU with ±200°/s gyro

MEMS IMU accelerometer 100Hz bandwidth

Product Description

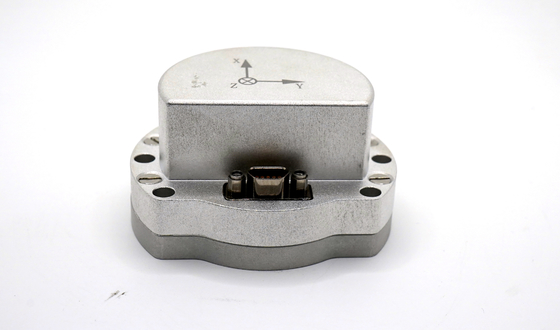

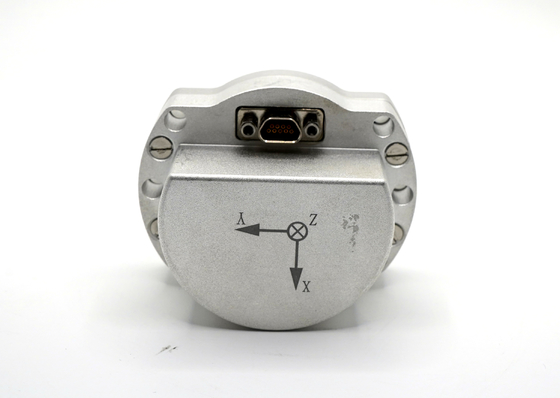

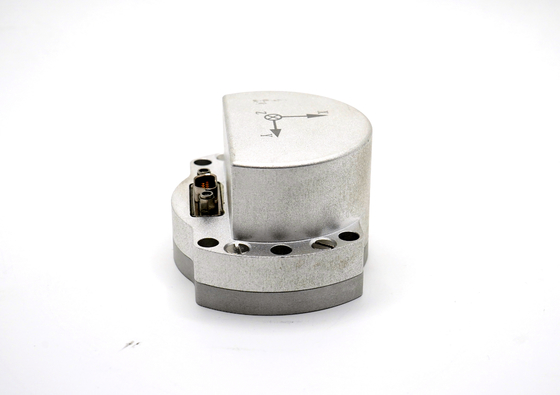

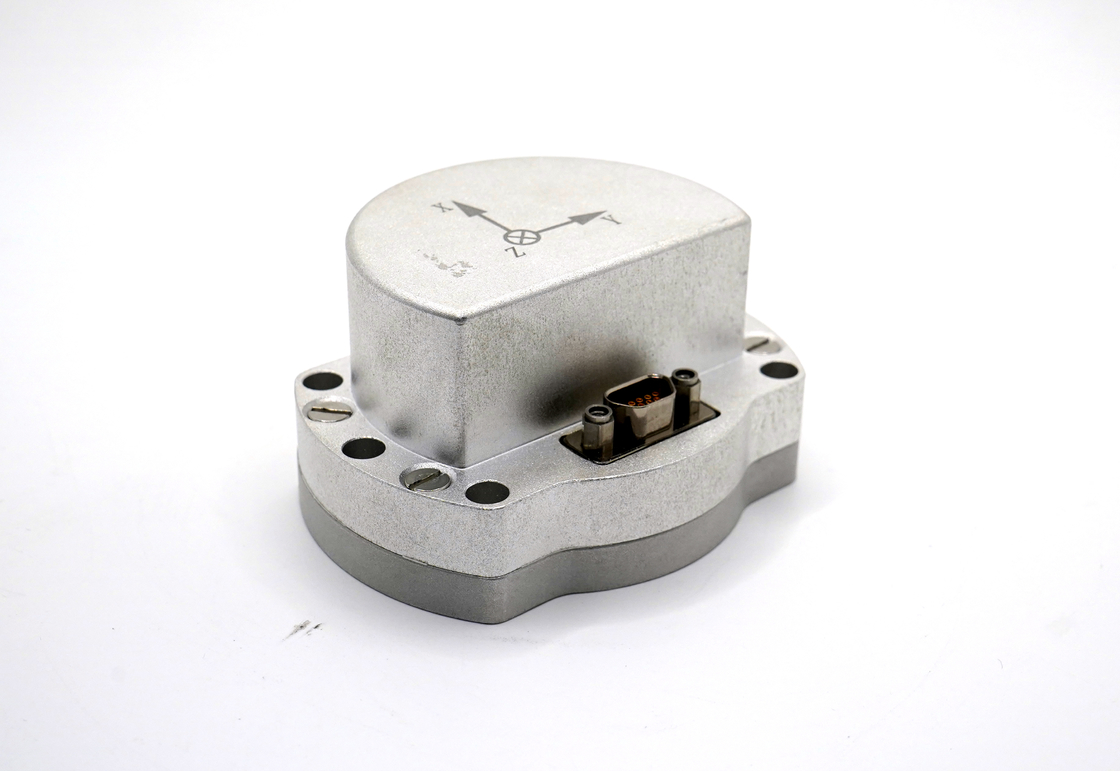

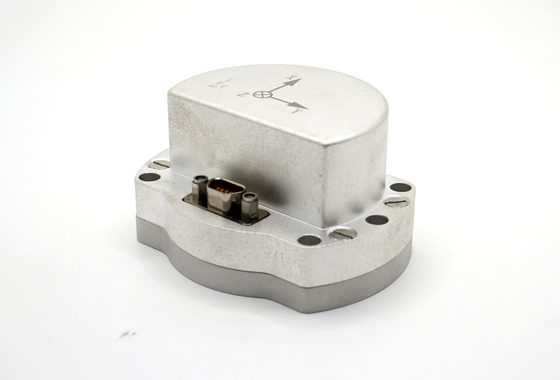

Tactical Grade MEMS Inertial Measurement Unit Honeywell HG4930 Replacement

The MEMS Inertial Measurement Unit (IMU) consists of three-axis gyroscope, three-axis accelerometer, temperature sensor, signal processing board, structure and necessary software. It measures three-axis angular rate, three-axis acceleration and three-axis inclination angle of a carrier, outputting compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through RS-422 serial port using an agreed communication protocol.

Technical Specifications

Gyroscope Specification

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Specification

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
