Honeywell HG4930 6-DoF IMU with ±200°/s Gyro and ±30g Accelerometer

Honeywell HG4930 6-DoF IMU with ±200°/s Gyro and ±30g Accelerometer

Brand Name:	FIREPOWER
Model Number:	HG4930C
MOQ:	1
Price:	6500$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Dynamic Measuring Range:

±200°/s (customizable)

Zero-bias Stability (@ Allan Variance):

≤0.2 °/h

Zero Bias Stability(10s Smooth):

≤0.5°/h

Random Walk:

0.02°/√h

Bandwidth:

100Hz

Acc Range:

±30g

Acc Zero-bias Stability (Allan Variance ):

30ug

Voltage:

Vibration:

10~2000Hz，6.06g

Weight:

120g

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Honeywell HG4930 IMU sensor

6-DoF IMU with gyro

IMU accelerometer with warranty

Product Description

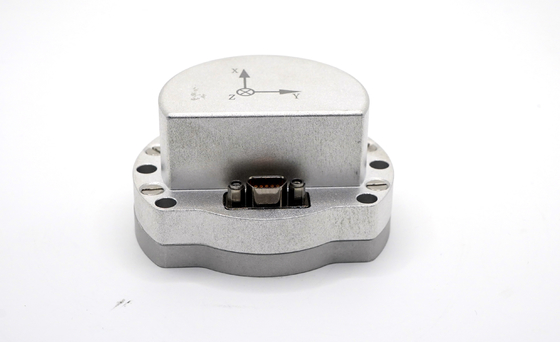

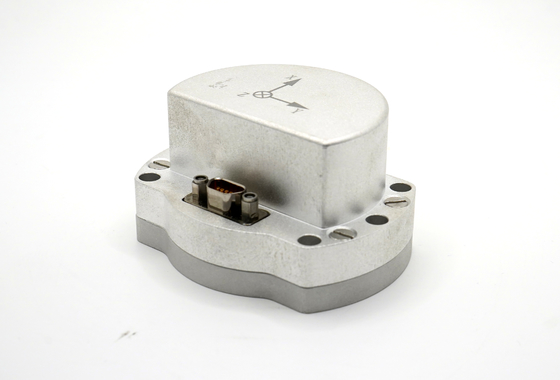

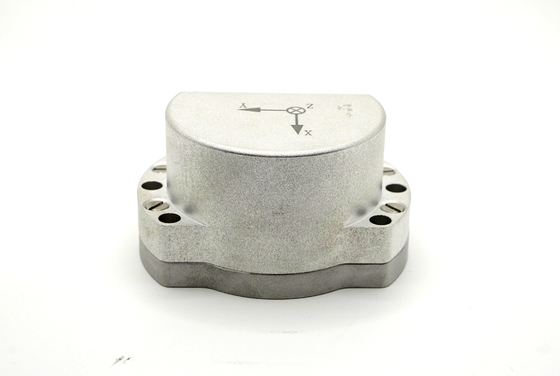

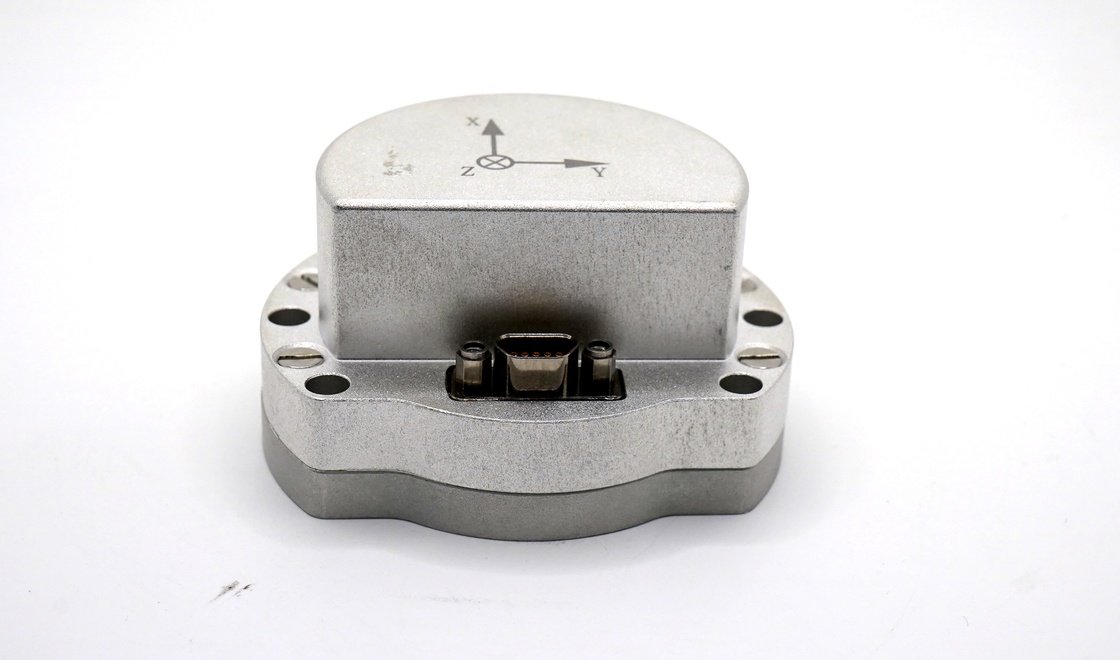

Honeywell HG4930 6-DoF Inertial Measurement Unit with Integrated Gyroscope and Accelerometer

The Honeywell HG4930 is a tactical grade MEMS Inertial Measurement Unit replacement designed for high-performance applications. This compact and rugged navigation sensor is engineered for demanding environments across aerospace, defense, UAVs, robotics, marine, and industrial automation sectors.

Key Features

Integrated three-axis gyroscope and three-axis accelerometer
Built-in temperature sensor for environmental compensation
Advanced signal processing board for real-time motion data
Durable mechanical structure for harsh environments
Precise measurement of angular rate, linear acceleration, and inclination angles
Temperature correction and installation misalignment compensation
Nonlinear behavior correction for stable, accurate information
Reliable performance under high dynamics and extreme conditions

Gyroscope Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	°/s	±200
Zero-bias stability (@ Allan variance)	°/h	0.2
Zero-bias stability (10 s smoothing, 1σ, room temperature)	°/h	0.5
Zero-bias error over full temperature range	°/h	2.5
Random walk	°/√h	0.02
Zero-bias repeatability	°/h	1
Zero bias acceleration sensitivity	°/h/g	1
Resolution	°/h	2
Scale factor nonlinearity	ppm	100
Scale factor repeatability	ppm	100
Cross coupling	%	0.2
Bandwidth	Hz	100

Accelerometer Specifications

Parameter	Unit	HG4930C
Measuring range (customizable)	g	±30
Zero-bias stability (Allan Variance @ 25 ℃)	ug	30
Zero-bias stability (1s smoothing)	ug	700
Zero-bias error over full temperature range	mg	1.5
Random walk	m/s/√h	0.01
Zero-bias repeatability	mg	2
Scale factor repeatability	ppm	200
Scale factor nonlinearity	ppm	200
Cross coupling	%	0.2
Bandwidth	Hz	100
