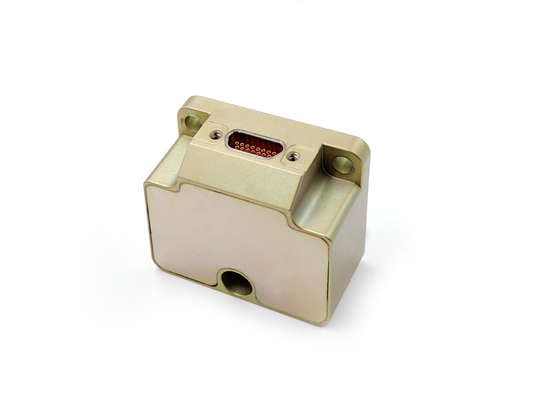

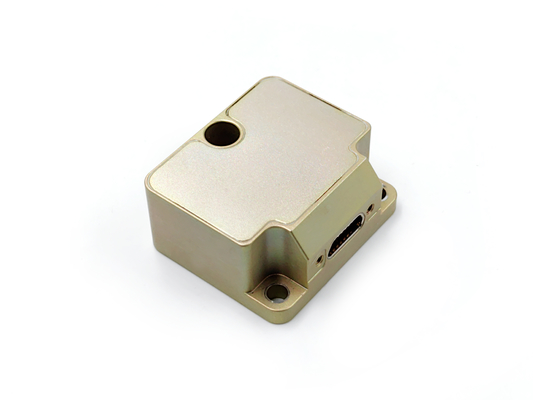

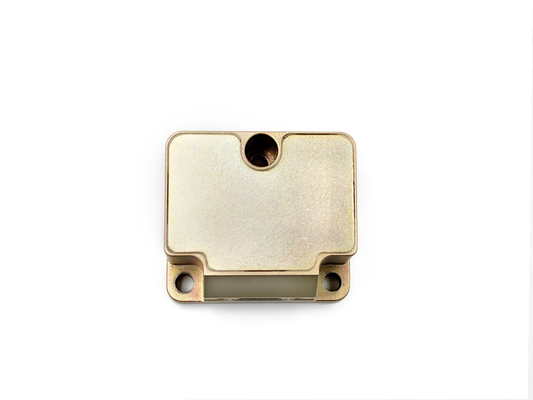

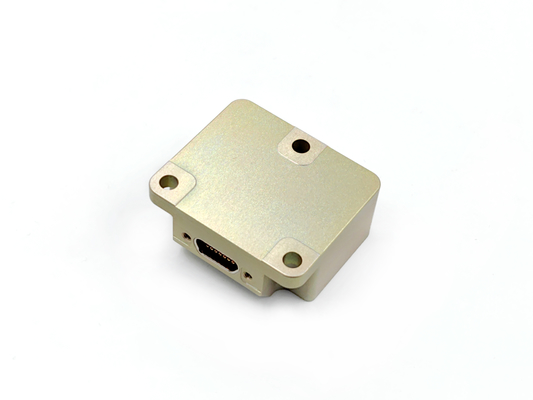

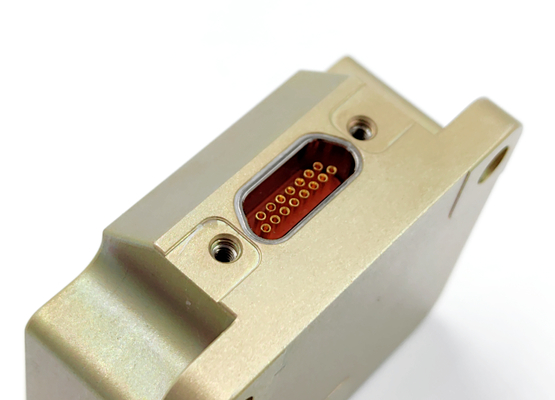

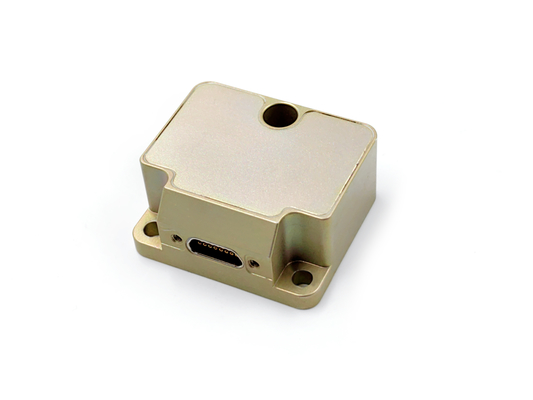

Stim300 MEMS Inertial Measurement Unit with RS-422 Serial Interface for Precision Navigation

Brand Name:	FIREPOWER
Model Number:	IMU6-1A
MOQ:	1
Price:	2500$
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Range (customizable):

±400°/s

In-Run Bias Stability(@ Allan Variance):

0.1°/h

Bias Stability @10s (10s Smooth, 1σ, Room Temperature):

1°/h

Angular Random Walk:

0.1°/√h

3 DB Bandwidth:

200Hz

Acc Range (customizable):

±30g

In-Run Bias Stability (Allan Variance @ 25 ℃):

0.05mg

Bias Stability @10s:

0.2mg

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

Stim300 MEMS IMU with ±400°/s gyro

MEMS IMU with 0.1°/h bias stability

IMU accelerometer gyro with high precision

Product Description

Stim300 MEMS Inertial Measurement Unit with RS-422 Serial Interface

The MEMS inertial measurement unit integrates a three-axis gyroscope, three-axis accelerometer, three-axis inclination angle sensor, temperature sensor, signal processing board, and necessary software. It precisely measures three-axis angular rate, three-axis acceleration, and three-axis inclination angle of a carrier, outputting compensated data (including temperature, installation misalignment, and nonlinear compensation) via RS-422 serial port.

Key Components

Three-axis gyroscope
Three-axis accelerometer
Three-axis inclination angle sensor
Temperature sensor
Signal processing board
Integrated software package

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0.05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°/√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ)	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ)	ppm	150	150	150	300
Scale Factor Repeatability (1σ)	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2	IMU6-1y-3	IMU6-1y-4
Measuring range (customizable)	g	±10	±30	±50	±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05	0.1	0.2
Bias stability @10s	mg	0.05	0.2	0.5	1
Bias stability in full temperature	mg	1	3	5	15
Angular Random Walk	m/s/√h	0.001	0.002	0.005	0.01
Bias repeatability(1σ)	mg	0.1	0.5	1	2
Scale Factor Repeatability (1σ)	ppm	200	200	200	200
Scale Factor Non-Linearity(1σ)	ppm	50	100	200	300
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	100	100	100	100
