ADIS16475 MEMS IMU Module with ±500°/s Gyro and ±8g Accelerometer

Name: ADIS16475 MEMS IMU Module with ±500°/s Gyro and ±8g Accelerometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16475C
Price: 200 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16475C
MOQ:	1
Price:	200$
Payment Terms:	L/C,D/P,T/T
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Gyro Measuring Range:

±500°/s

Scale Factor Nonlinearity:

100ppm

Random Walk:

0.15°/√h

Bandwidth:

345Hz

Acc Range:

±8g

Scale Factor Repeatability:

500ppm

Update Speed:

2.0kSPS

Supply Current:

20mA

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

ADIS16475 MEMS IMU module

±500°/s gyro IMU sensor

±8g accelerometer MEMS module

Product Description

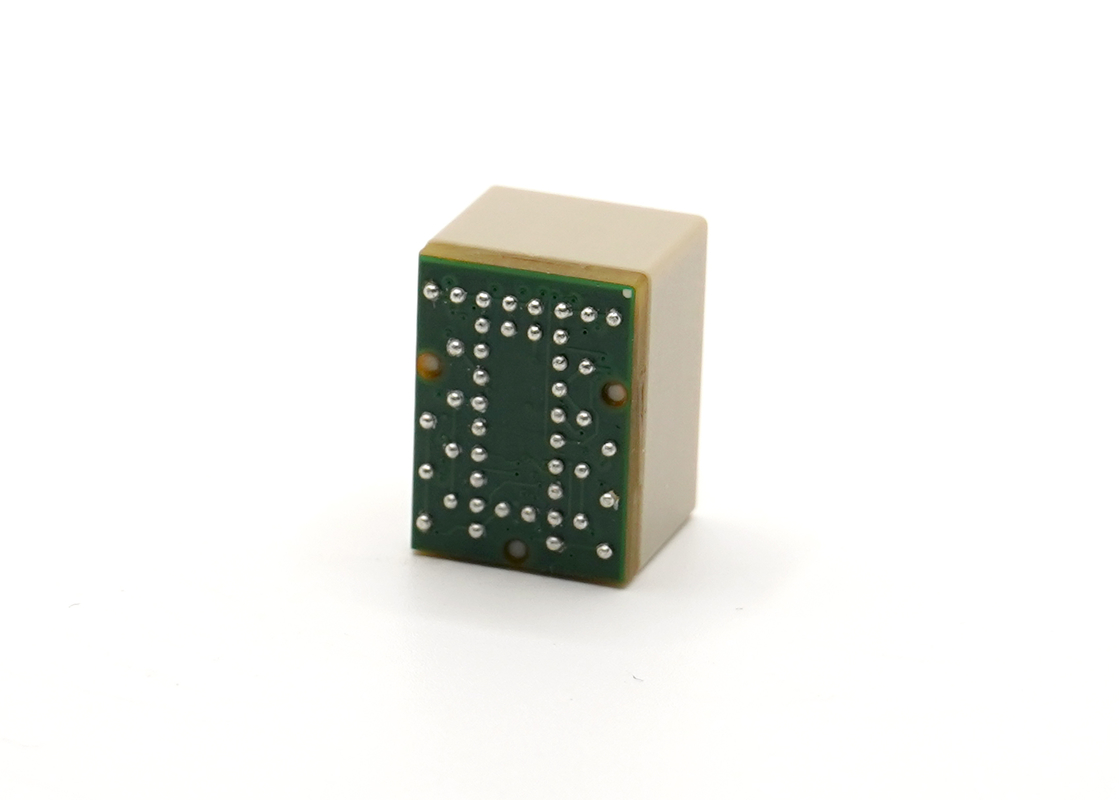

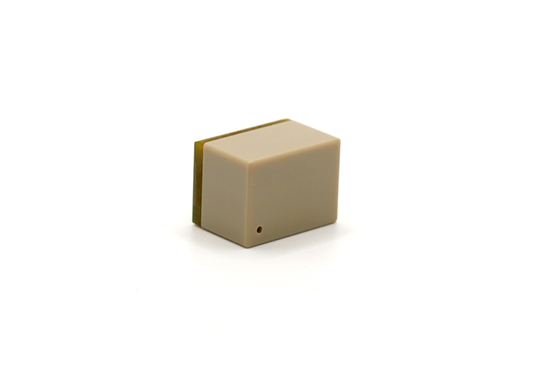

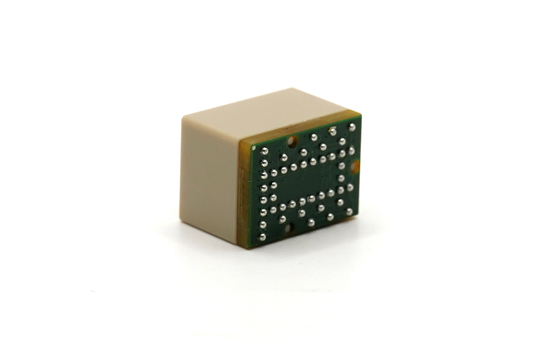

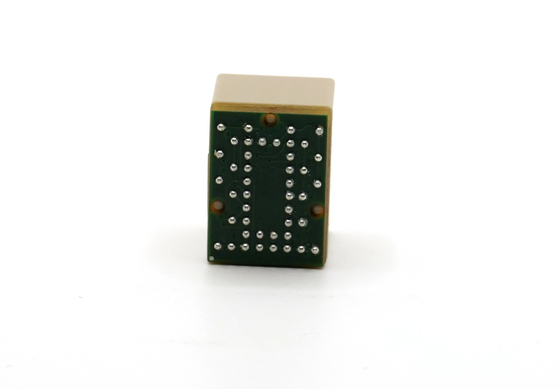

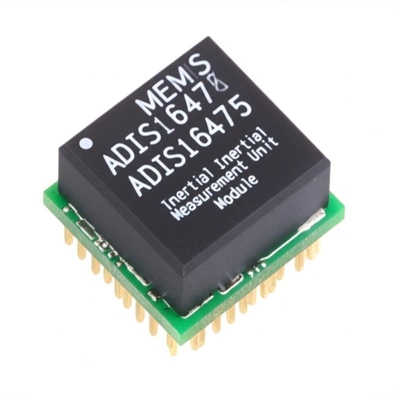

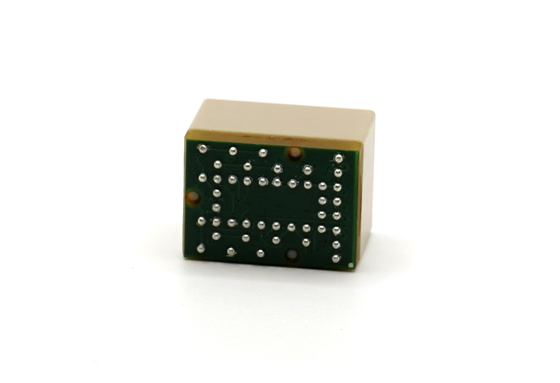

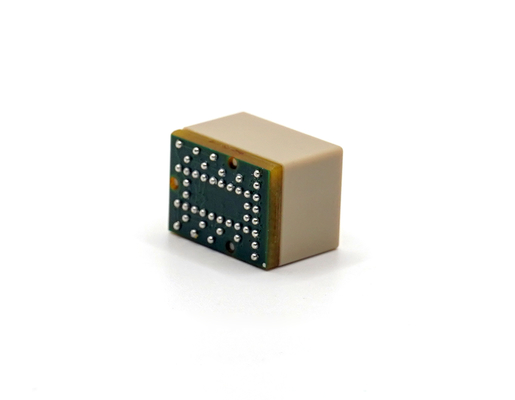

Miniature MEMS Inertial Measurement Unit Module ADIS16475

The ADIS16475C is a high-precision, miniaturized MEMS motion sensor module containing a three-axis gyroscope and three-axis accelerometer. Each inertial sensor is combined with signal conditioning circuitry to provide a simple interface for data acquisition and configuration control using an SPI interface and register structure. The module is available in a 100-ball BGA package measuring approximately 15 mm × 11 mm × 11 mm.

Key Features

High-precision MEMS motion sensing technology
Three-axis gyroscope and three-axis accelerometer
Simple SPI interface for data acquisition
Compact 100-ball BGA package (15 mm × 11 mm × 11 mm)
Integrated signal conditioning circuitry

Technical Specifications

Parameter	Test Conditions	Max	Typical	Minimal	Unit
Gyroscope
Measuring range			±500		°/sec
Scale factor	X_GYRO_OUT and X_GYRO_LOW (32-bit)		2,621,440		LSB/°/sec
Scale factor nonlinearity	Best straight line fit, input angular rate 500dps		100		ppm
Zero-bias instability	Allan, 1 σ		2.5	3.0	°/h
Random walk	1 σ		0.15	0.20	°/√h
Bandwidth	-3dB		345		Hz
Accelerometer
Measuring range			±8		g
Scale factor	X_ACCL_OUT and X_ACCL_LOW (32-bit)		2,621,44000		LSB /g
Zero-bias instability	Allan, 1 σ		25	50	ug
Bandwidth	-3dB		393		Hz
General Specifications
Start time			1000		ms
Update speed			2.0		kSPS
Operating voltage range	VDD	3.0		3.6	V
Supply current	VDD = 3.3 V	17		20	mA

Outline Drawings
