Reliable 6 DOF IMU Sensor for BYD Automotive Navigation

Name: Reliable 6 DOF IMU Sensor for BYD Automotive Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU115
Price: 200 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU115
MOQ:	1
Price:	200$
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Gyroscope Range:

250/ 500 º/s

Zero Bias Stability:

3.0º/h

Scale Factor Nonlinearity:

0.02%

Bandwidth:

80Hz

Acceleromete Range:

4//16/g

Interface:

1-way UART

Vibration:

20~2000Hz，3g

Impact:

1000g，0.5ms

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Product Description

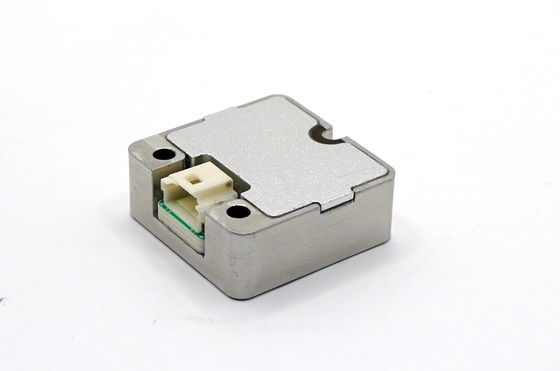

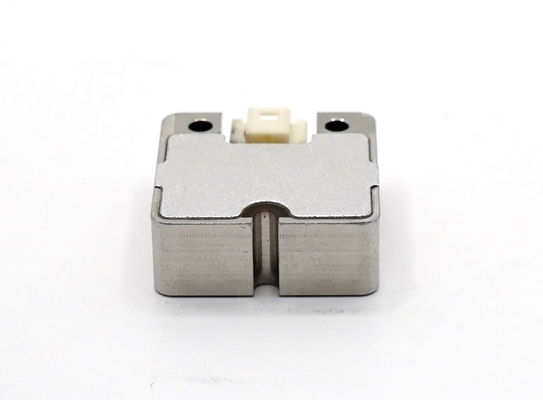

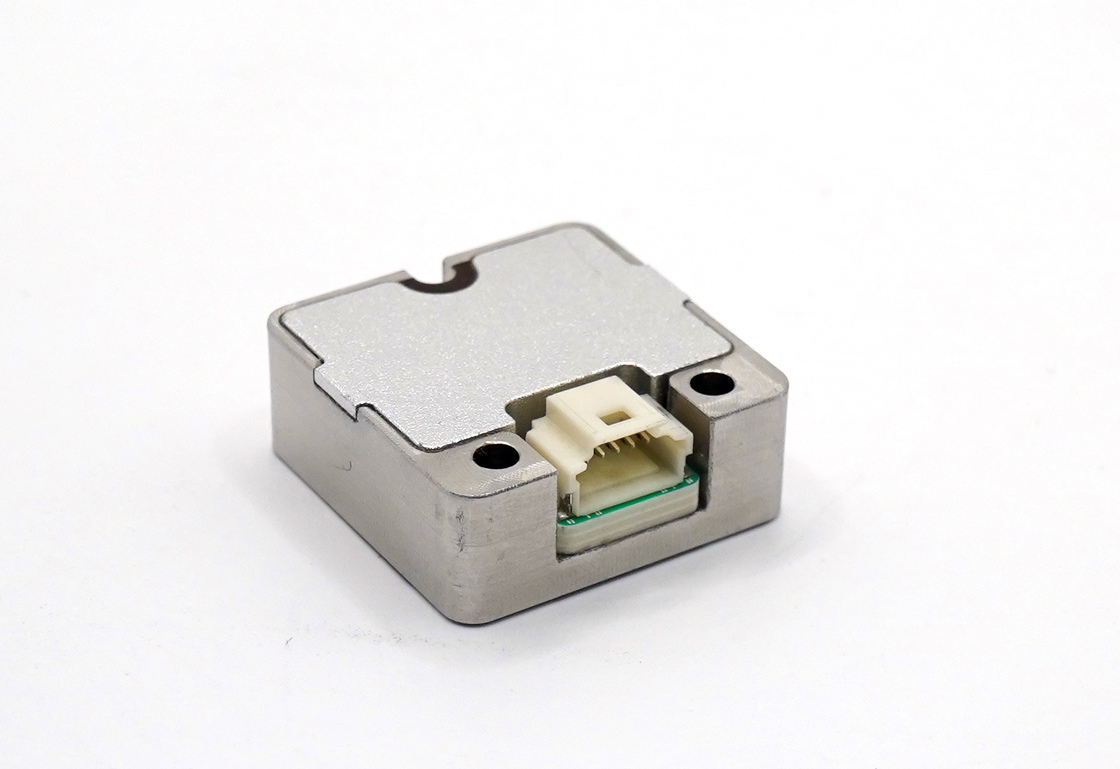

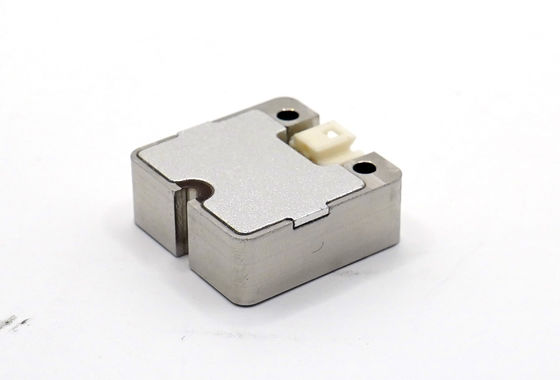

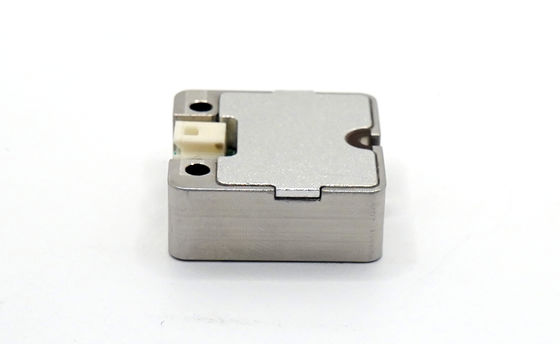

Reliable 6 DOF IMU Sensor for BYD Automotive Navigation

IMU115 is an advanced inertial measurement unit (IMU) based on micro-mechanical technology (MEMS), featuring built-in high-performance MEMS gyroscope and MEMS accelerometer. It provides precise measurements of 3 angular velocities and 3 accelerations.

Designed for high reliability and exceptional environmental adaptability, the IMU115 can be customized with different software solutions for applications in intelligent driving, communication in motion, mapping, stabilization platforms, and related fields.

Product Features

Three-axis digital gyroscope:
- ±250º/s dynamic measuring range (500º/s optional)
- Zero bias stability: 10º/h (GJB, 10s, typical), 6.0º/h (ALLAN, typical)
Triaxial digital accelerometer:
- ±4g dynamic measurement range (configurable to 16g)
- Zero-bias stability: 0.12 mg (GJB, 10s), 0.065 mg (ALLAN)
High reliability: MTBF > 20,000 hours
Guaranteed accuracy across full temperature range (-40℃ to 80℃) with built-in high-performance temperature calibration and compensation algorithm
Designed to operate effectively under strong vibration conditions
Interface: 1-way UART

Field of Application

Intelligent driving systems
Communication in motion
Mapping applications
Stabilization platforms

Product Specifications

Parameter	Test Conditions	Minimum	Typical	Maximum	Unit
Gyroscope
Dynamic measuring range			250	500	º/s
Zero bias stability	Allan variance		3.0		º/h
Zero bias stability	10s average (-40℃ to +80℃, constant temperature)		6.0		º/h
Zero bias range			±0.2		º/s
Zero bias variation over full temperature range			±0.3		º/s
Scale factor accuracy			0.2		%
Scale factor nonlinearity			0.02		%FS
Bandwidth			80		Hz
Accelerometer
Dynamic measuring range			4	16	g
Zero bias stability	Allan variance		0.065		mg
Zero bias stability	10s average (-40℃ to +80℃, constant temperature)		0.12		mg
Zero bias range			±3		mg
Zero bias change in full temperature range			±6		mg
Scale factor accuracy			0.3		%
Scale factor nonlinearity			0.03		%FS
Bandwidth			80		Hz
Communication Interface
1-way UART baud rate			115.2	460.8	Kbps
UART sampling frequency		200	1000		Hz
Electrical Characteristics
Voltage		4.5	5	5.5	V
Power consumption				0.35	W
Ripple (P-P)				20	mV
Structural Characteristics
Size			22.4×22.4×9.5		mm
Weight			16		g
Use Environment
Operating temperature		-40		80	℃
Storage temperature		-45		85	℃
Vibration			20-2000Hz, 3g
Impact			1000g, 0.5ms
Reliability
MTBF			20000		h
Continuous working time			120		h

Note: Zero bias of the whole temperature change process is calculated with temperature change rate ≤1℃/min and temperature range of -40℃ to +80℃.
