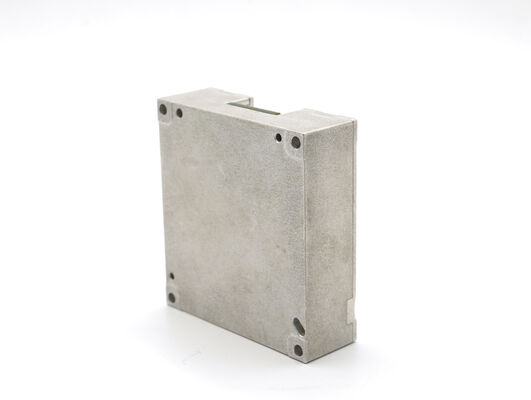

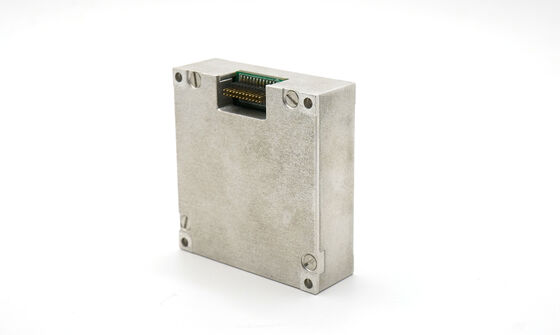

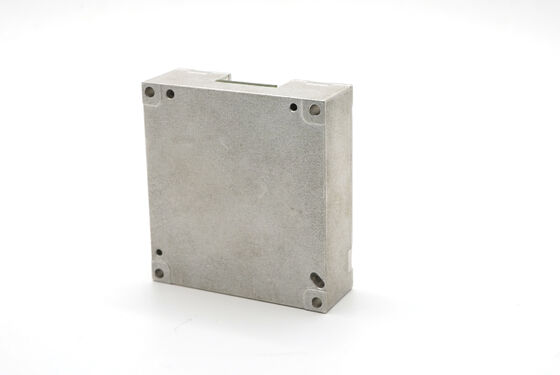

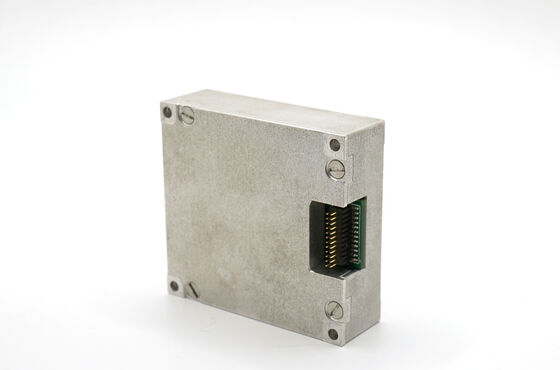

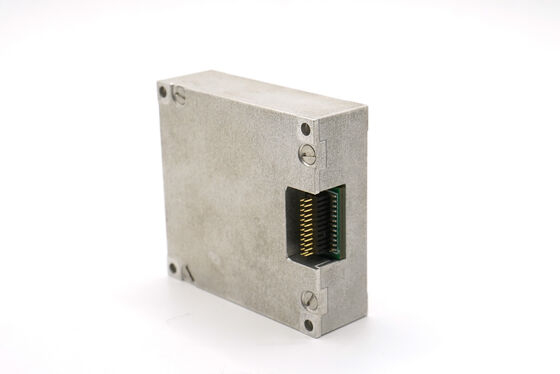

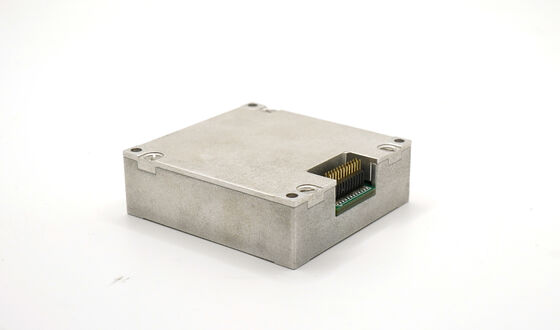

Adis16488 Inertial Sensor IMU for UAV and Drone Stabilization System with Magnetometer

Name: Adis16488 Inertial Sensor IMU for UAV and Drone Stabilization System with Magnetometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488c
Price: 3,003.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488c
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Scale Factor Nonlinear:

≤200ppm

Zero-bias Instability:

5º/h

Zero Bias Repeatability:

20°/h

Output:

RS422

Bandwidth (-3dB:

330 Hz

Weight:

48±2g

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

Adis16488 IMU with magnetometer

UAV stabilization IMU sensor

drone gyro accelerometer system

Product Description

ADIS16488 Inertial Sensor IMU for UAV and Drone Stabilization System with Magnetometer

The ADIS16488C multi-degree-of-freedom inertial measurement unit is a complete inertial system featuring a three-axis gyroscope, three-axis accelerometer, three-axis magnetometer, and pressure sensor. This advanced IMU measures three-axis angular rate, acceleration, three-axis magnetic field, air pressure, and other critical parameters. The unit outputs error-compensated data (including temperature compensation, installation misalignment angle compensation, and nonlinear compensation) through SPI or UART communication protocols.

Technical Specifications

Parameter	Test Conditions	Minimum Value	Typical Value	Maximum Value	Unit
Gyroscope
Dynamic Measuring Range	Configurable			±450	º/s
Zero-bias Instability	Allan variance, better than		5		º/h
Zero Bias Stability	10s smooth, RMS, better than		10		º/h
Zero Bias in Full Temperature Range	-40℃ ~ 85℃, 10s smooth, RMS		60		º/h
Random Walk	1σ		0.26		º/√h
Zero-bias Repeatability	1σ		20		º/h
Zero-bias Acceleration Sensitive			20		º/h/g
Scale Factor Repeatability	1σ		200		ppm
Scale Factor Nonlinearity	FS=450º/s		200		ppm
Bandwidth (-3dB)			330		Hz
Cross Coupling			0.2		%
Accelerometer
Dynamic Measuring Range	Configurable			±20	g
Zero Bias Stability	Allan variance		0.07		mg
Zero Bias in Full Temperature Range	-40℃ ~ 85℃, 10s smooth, RMS		3		mg
Random Walk	1б		0.029		m/s/√h
Zero-bias Repeatability	1б		0.5		mg
Zero Bias Stability	10s smooth, RMS, better than		0.25		mg
Scale Factor Repeatability	1σ		500		ppm
Scale Factor Nonlinearity	FS=10g		500		ppm
Bandwidth (-3dB)			250		Hz
Cross Coupling			0.2		%
Magnetometer
Dynamic Measuring Range				±2.5	gauss
Sensitivity			0.1		mgauss/LSB
Barometer
Pressure Range		300		1100	mbar
Sensitivity			6.1 × 10⁻⁷		mbar/LSB
Electrical Characteristics
Voltage	Direct current		3.3±0.15		V
Power Consumption			0.5		W
Ripple	P-P		100		mV
Weight			48±2		g
Environmental Specifications
Operating Temperature	Scalable	-45		85	℃
Storage Temperature		-55		85	℃

Outline Drawing
