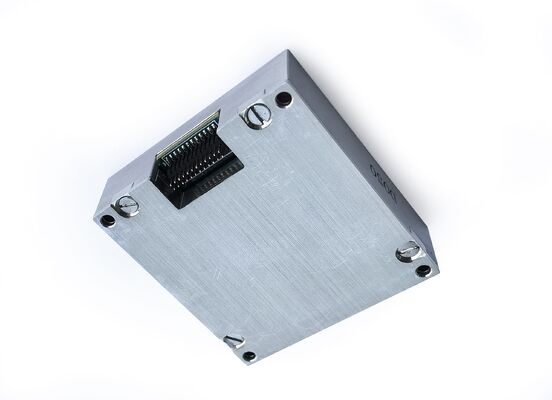

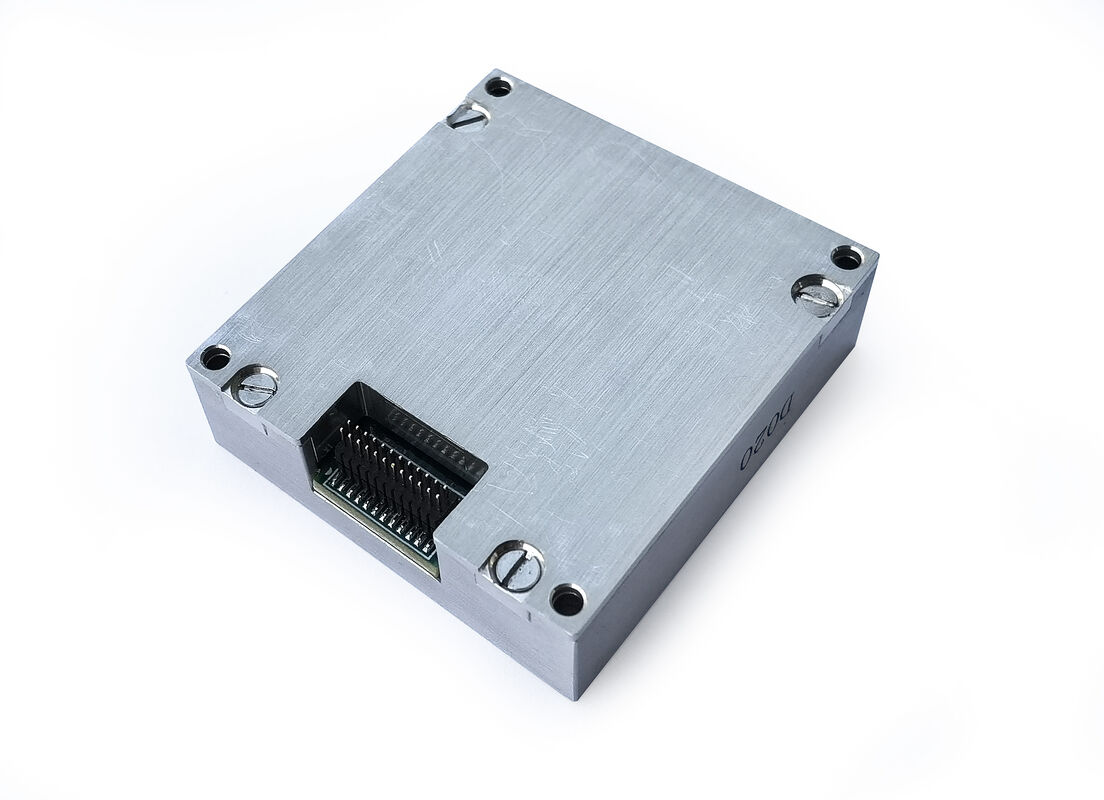

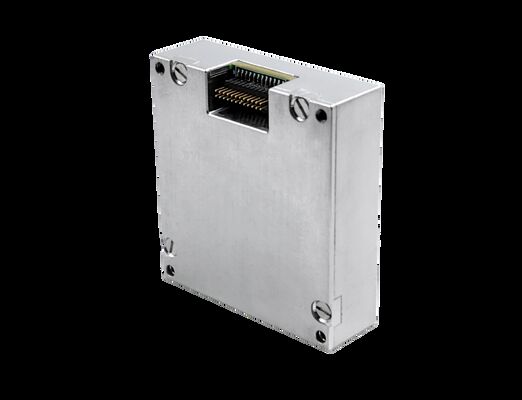

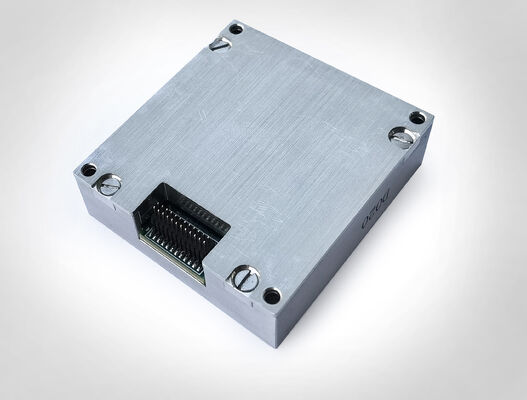

Next-Generation 10-DOF MEMS IMU with Low Power Consumption

Name: Next-Generation 10-DOF MEMS IMU with Low Power Consumption
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488C
Price: 3,003.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488C
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Bias Repeatability:

20°/h

Measurement Range (Accelerometer):

±2.5g

Bandwidth:

330Hz

Measurement Range:

450°/s

Zero-bias Instability:

5°/h

Random Walk:

0.26 º/√h

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

10-DOF MEMS IMU sensor

low power IMU accelerometer

gyro sensor with high DOF

Product Description

Next-Generation 10-DOF MEMS IMU with Low Power Consumption

Compact Inertial Measurement Unit for Dynamic Applications
Ideal for dynamic and motion-sensitive applications, the 16488C IMU integrates advanced gyroscopes, accelerometers, magnetometers, and barometers to measure key environmental parameters. With built-in error correction algorithms and high sensitivity, it provides accurate data outputs in demanding conditions.

Technical Specifications

Gyroscope

Parameter	Test Conditions	Typical Value	Max Value	Unit
Dynamic measuring range	Configurable		±450	º/s
Zero-bias instability	Allan variance, better than	5		º/h
Zero bias stability	10s smooth, RMS, better than	10		º/h
Zero bias in full temperature range	-40℃ ~ 85℃, 10s smooth, RMS	60		º/h
Random walk	1σ	0.26		º/√h
Zero-bias repeatability	1σ	20		º/h
Zero-bias acceleration sensitive		20		º/h/g
Scale factor repeatability	1σ	200		ppm
Scale factor nonlinearity	FS=450º/s	200		ppm
Bandwidth (-3dB)		330		Hz
Cross coupling		0.2		%

Accelerometer

Parameter	Test Conditions	Typical Value	Max Value	Unit
Dynamic measuring range	Configurable		±20	g
Zero bias stability	Allan variance	0.07		mg
Zero bias in full temperature range	-40℃ ~ 85℃, 10s smooth, RMS	3		mg
Random walk	1б	0.029		m/s/√h
Zero-bias repeatability	1б	0.5		mg
Zero bias stability	10s smooth, RMS, better than	0.25		mg
Scale factor repeatability	1σ	500		ppm
Scale factor nonlinearity	FS=10g	500		ppm
Bandwidth (-3dB)		250		Hz
Cross coupling		0.2		%

Magnetometer

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Dynamic measuring range			±2.5		gauss
Sensitivity			0.1		mgauss/LSB

Barometer

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Pressure range		300		1100	mbar
Sensitivity			6.1×10⁻⁷		mbar/LSB

Electrical Characteristics

Parameter	Test Conditions	Typical Value	Unit
Voltage	Direct current	3.3±0.15	V
Power consumption		0.5	W
Ripple	P-P	100	mV
Weight		48±2	g

Use Environment

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Operating temperature	Scalable	-45		85	℃
Storage temperature		-55		85	℃

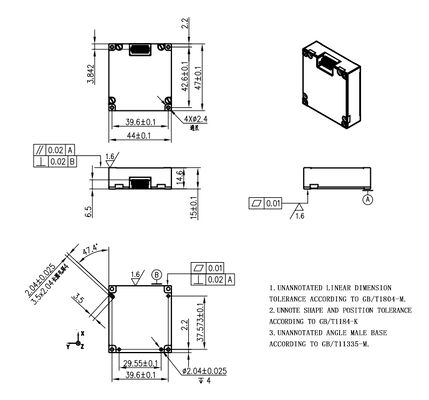

Outline Drawing
