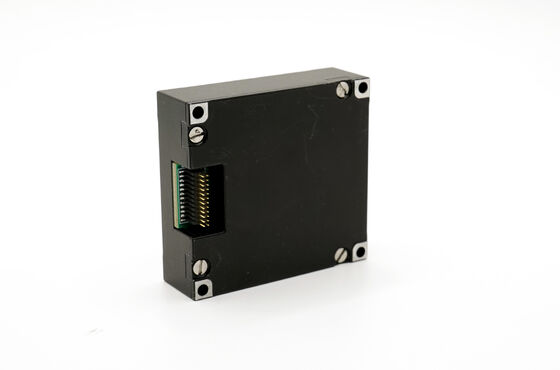

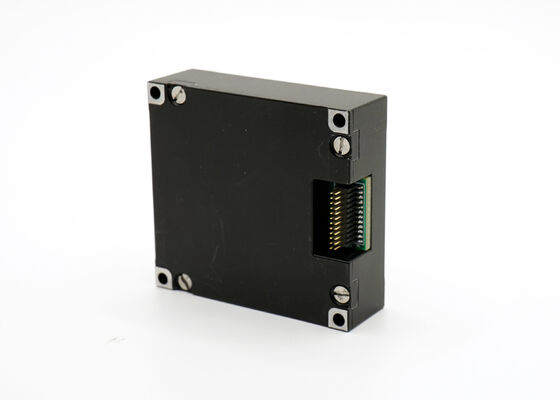

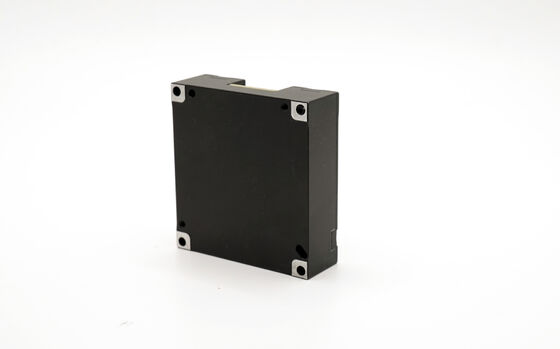

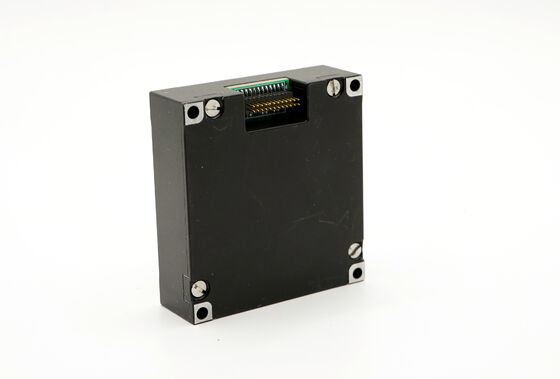

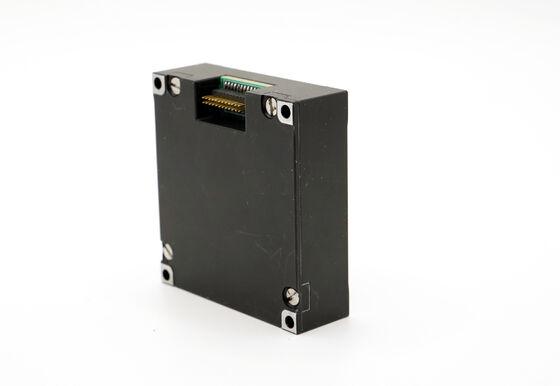

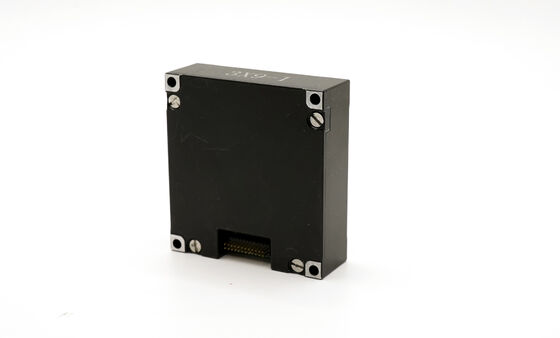

All-in-One 10-Axis Smart IMU with Integrated Sensor Fusion Algorithm

Name: All-in-One 10-Axis Smart IMU with Integrated Sensor Fusion Algorithm
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488C
Price: 3,003.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488C
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Zero-bias Instability:

5º/h

Scale Factor Repeatability:

200Ppm

Scale Factor Nonlinearity:

200Ppm

Bandwidth (-3dB):

330Hz

Power Consumption:

0.5W

Weight:

48±2g

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

10-axis smart IMU sensor

IMU with sensor fusion algorithm

integrated accelerometer gyro module

Product Description

All-in-One 10-Axis Smart IMU with Integrated Sensor Fusion Algorithm

The 16488C IMU is a complete inertial measurement system combining a three-axis gyroscope, accelerometer, magnetometer, and pressure sensor. Featuring error compensation for temperature, misalignment, and other factors, it provides accurate and reliable measurements for dynamic and static analysis, outputting data via SPI or UART.

Technical Specifications

Gyroscope

Parameter	Test Conditions	Typical Value	Max Value	Unit
Dynamic measuring range	Configurable		±450	º/s
Zero-bias instability	Allan variance, better than	5		º/h
Zero bias stability	10s smooth, RMS, better than	10		º/h
Zero bias in full temperature range	-40℃ ~ 85℃, 10s smooth, RMS	60		º/h
Random walk	1σ	0.26		º/√h
Zero-bias repeatability	1σ	20		º/h
Zero-bias acceleration sensitive		20		º/h/g
Scale factor repeatability	1σ	200		ppm
Scale factor nonlinearity	FS=450º/s	200		ppm
Bandwidth (-3dB)		330		Hz
Cross coupling		0.2		%

Accelerometer

Parameter	Test Conditions	Typical Value	Max Value	Unit
Dynamic measuring range	Configurable		±20	g
Zero bias stability	Allan variance	0.07		mg
Zero bias in full temperature range	-40℃ ~ 85℃, 10s smooth, RMS	3		mg
Random walk	1б	0.029		m/s/√h
Zero-bias repeatability	1б	0.5		mg
Zero bias stability	10s smooth, RMS, better than	0.25		mg
Scale factor repeatability	1σ	500		ppm
Scale factor nonlinearity	FS=10g	500		ppm
Bandwidth (-3dB)		250		Hz
Cross coupling		0.2		%

Magnetometer

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Dynamic measuring range				±2.5	gauss
Sensitivity			0.1		mgauss/LSB

Barometer

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Pressure range		300		1100	mbar
Sensitivity			6.1×10⁻⁷		mbar/LSB

Electrical Characteristics

Parameter	Test Conditions	Typical Value	Unit
Voltage	Direct current	3.3±0.15	V
Power consumption		0.5	W
Ripple	P-P	100	mV
Weight		48±2	g

Use Environment

Parameter	Test Conditions	Min Value	Typical Value	Max Value	Unit
Operating temperature	Scalable	-45		85	℃
Storage temperature		-55		85	℃

Outline Drawing
